This is a out of place upgrade where our existing EM 13.1 will be upgrade.

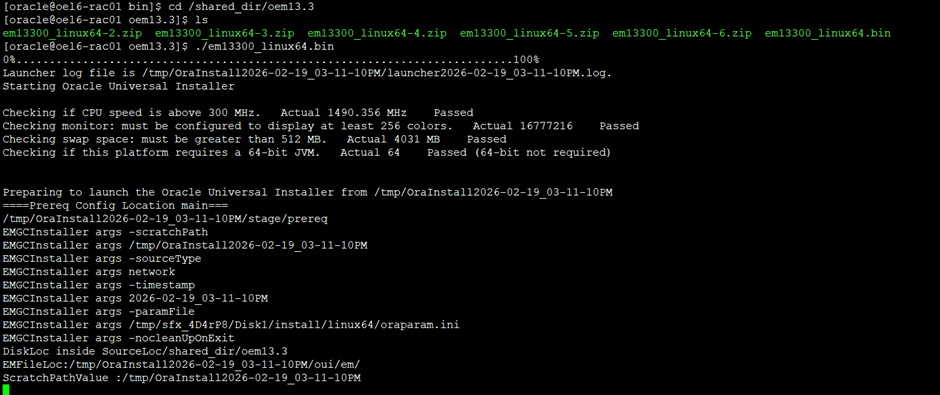

download EM 13.3 software and execute the bin file

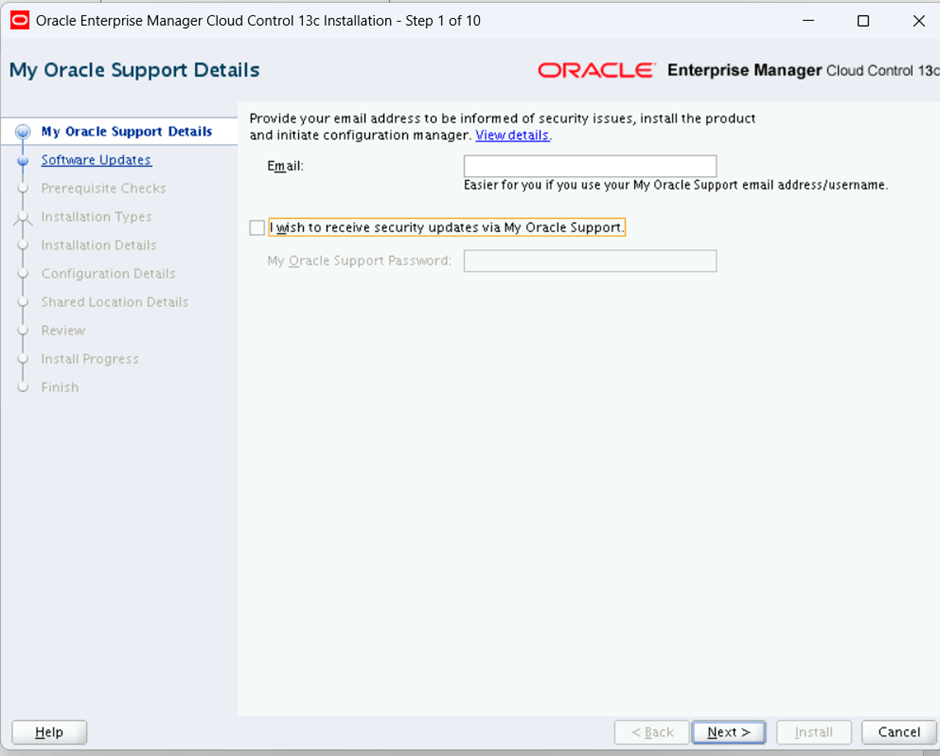

follow mentioned steps
skip s/w updates

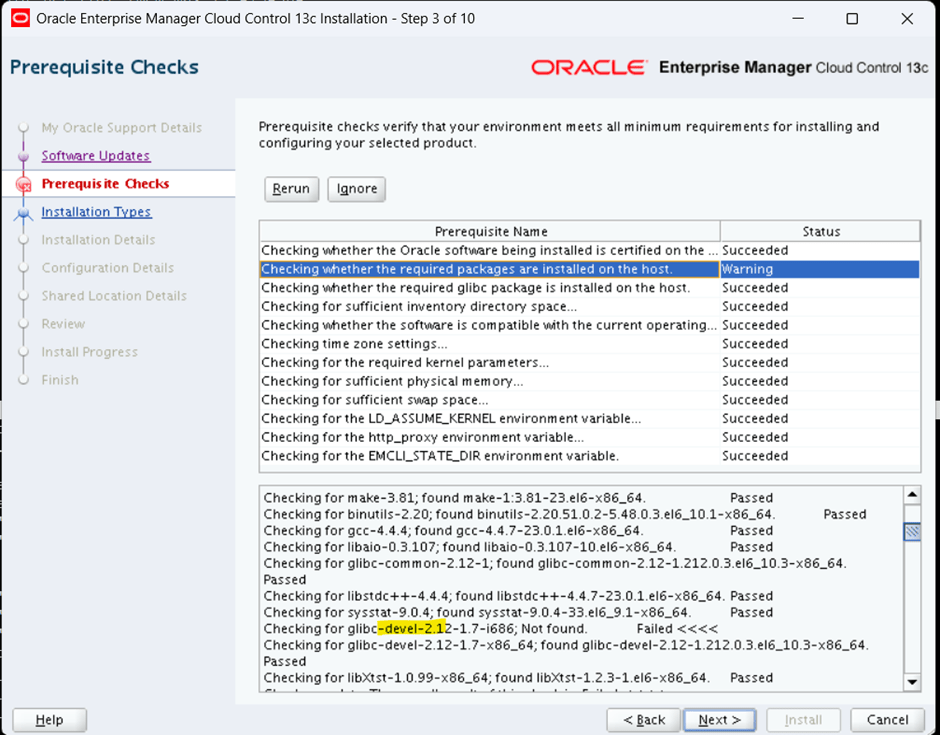

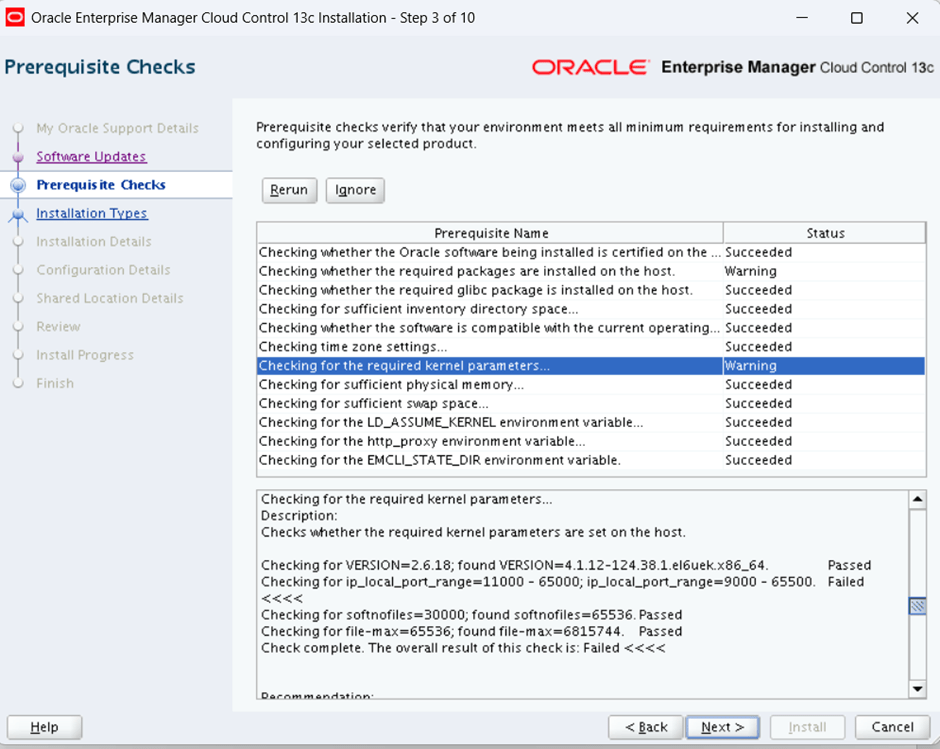

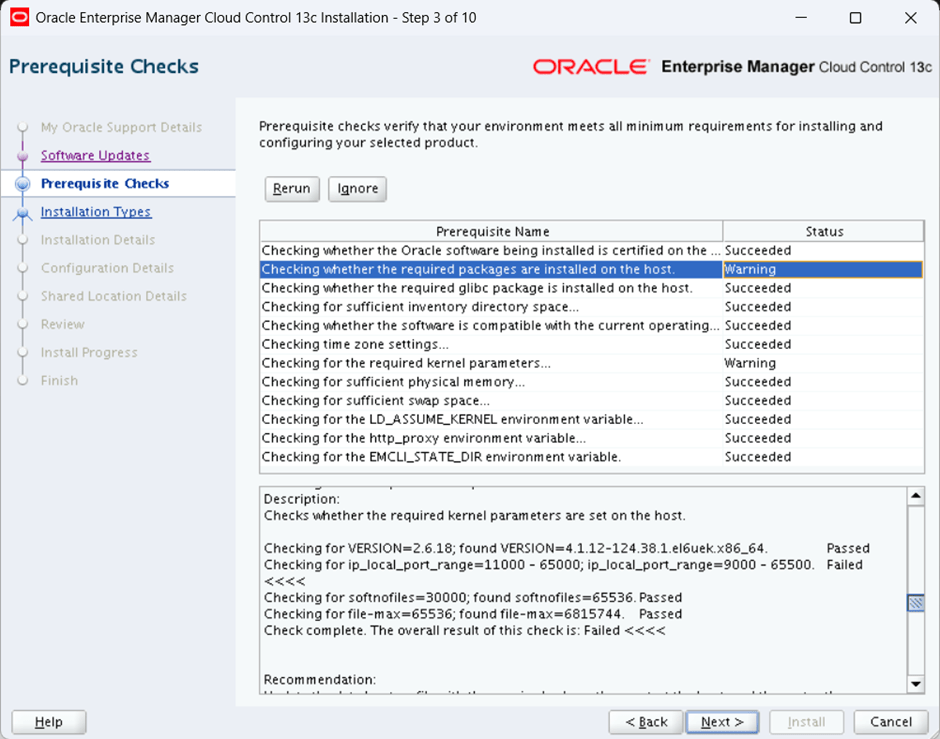

fix warnings

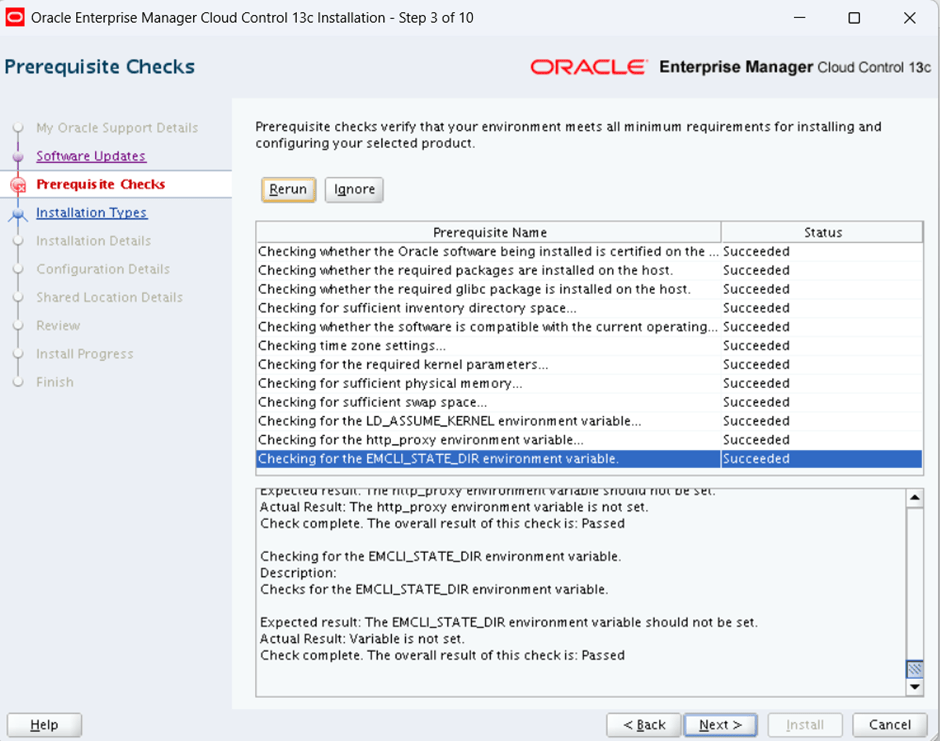

cat /etc/sysctl.conf.....# oracle-rdbms-server-12cR1-preinstall setting for net.ipv4.ip_local_port_range is 9000 65500#net.ipv4.ip_local_port_range = 9000 65500net.ipv4.ip_local_port_range = 11000 65000remove below line #net.ipv4.ip_local_port_range = 9000 65500And run /sbin/sysctl -pNow click on rerun
to fix this install the 32 bit glib rpm’s
[root@oel6-rac01 ~]# rpm -qa|grep glibcglibc-2.12-1.212.0.3.el6_10.3.x86_64glibc-headers-2.12-1.212.0.3.el6_10.3.x86_64glibc-devel-2.12-1.212.0.3.el6_10.3.x86_64glibc-common-2.12-1.212.0.3.el6_10.3.x86_64[root@oel6-rac01 ~]# yum install -y glibc.i686 glibc-devel.i686 glibc-static.i686Loaded plugins: refresh-packagekit, security, ulninfoSetting up Install ProcessResolving Dependencies--> Running transaction check---> Package glibc.i686 0:2.12-1.212.0.3.el6_10.3 will be installed--> Processing Dependency: libfreebl3.so(NSSRAWHASH_3.12.3) for package: glibc-2.12-1.212.0.3.el6_10.3.i686--> Processing Dependency: libfreebl3.so for package: glibc-2.12-1.212.0.3.el6_10.3.i686---> Package glibc-devel.i686 0:2.12-1.212.0.3.el6_10.3 will be installed---> Package glibc-static.i686 0:2.12-1.212.0.3.el6_10.3 will be installed--> Running transaction check---> Package nss-softokn-freebl.x86_64 0:3.44.0-6.0.1.el6_10 will be updated---> Package nss-softokn-freebl.i686 0:3.44.0-6.0.2.el6_10 will be installed---> Package nss-softokn-freebl.x86_64 0:3.44.0-6.0.2.el6_10 will be an update--> Finished Dependency ResolutionDependencies Resolved============================================================================================================================================================================================= Package Arch Version Repository Size=============================================================================================================================================================================================Installing: glibc i686 2.12-1.212.0.3.el6_10.3 ol6_latest 4.4 M glibc-devel i686 2.12-1.212.0.3.el6_10.3 ol6_latest 992 k glibc-static i686 2.12-1.212.0.3.el6_10.3 ol6_latest 1.1 MInstalling for dependencies: nss-softokn-freebl i686 3.44.0-6.0.2.el6_10 ol6_latest 201 kUpdating for dependencies: nss-softokn-freebl x86_64 3.44.0-6.0.2.el6_10 ol6_latest 202 kTransaction Summary=============================================================================================================================================================================================Install 4 Package(s)Upgrade 1 Package(s)Total download size: 6.9 MDownloading Packages:(1/5): glibc-2.12-1.212.0.3.el6_10.3.i686.rpm | 4.4 MB 00:00(2/5): glibc-devel-2.12-1.212.0.3.el6_10.3.i686.rpm | 992 kB 00:01(3/5): glibc-static-2.12-1.212.0.3.el6_10.3.i686.rpm | 1.1 MB 00:01(4/5): nss-softokn-freebl-3.44.0-6.0.2.el6_10.i686.rpm | 201 kB 00:00(5/5): nss-softokn-freebl-3.44.0-6.0.2.el6_10.x86_64.rpm | 202 kB 00:00---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------Total 581 kB/s | 6.9 MB 00:12Running rpm_check_debugRunning Transaction TestTransaction Test SucceededRunning TransactionWarning: RPMDB altered outside of yum. Installing : glibc-2.12-1.212.0.3.el6_10.3.i686 1/6 Installing : nss-softokn-freebl-3.44.0-6.0.2.el6_10.i686 2/6 Installing : glibc-devel-2.12-1.212.0.3.el6_10.3.i686 3/6 Installing : glibc-static-2.12-1.212.0.3.el6_10.3.i686 4/6 Updating : nss-softokn-freebl-3.44.0-6.0.2.el6_10.x86_64 5/6 Cleanup : nss-softokn-freebl-3.44.0-6.0.1.el6_10.x86_64 6/6 Verifying : glibc-static-2.12-1.212.0.3.el6_10.3.i686 1/6 Verifying : nss-softokn-freebl-3.44.0-6.0.2.el6_10.i686 2/6 Verifying : glibc-devel-2.12-1.212.0.3.el6_10.3.i686 3/6 Verifying : nss-softokn-freebl-3.44.0-6.0.2.el6_10.x86_64 4/6 Verifying : glibc-2.12-1.212.0.3.el6_10.3.i686 5/6 Verifying : nss-softokn-freebl-3.44.0-6.0.1.el6_10.x86_64 6/6Installed: glibc.i686 0:2.12-1.212.0.3.el6_10.3 glibc-devel.i686 0:2.12-1.212.0.3.el6_10.3 glibc-static.i686 0:2.12-1.212.0.3.el6_10.3Dependency Installed: nss-softokn-freebl.i686 0:3.44.0-6.0.2.el6_10Dependency Updated: nss-softokn-freebl.x86_64 0:3.44.0-6.0.2.el6_10Complete![root@oel6-rac01 ~]#[root@oel6-rac01 ~]# rpm -qa|grep glibcglibc-devel-2.12-1.212.0.3.el6_10.3.i686glibc-2.12-1.212.0.3.el6_10.3.i686glibc-2.12-1.212.0.3.el6_10.3.x86_64glibc-headers-2.12-1.212.0.3.el6_10.3.x86_64glibc-devel-2.12-1.212.0.3.el6_10.3.x86_64glibc-static-2.12-1.212.0.3.el6_10.3.i686glibc-common-2.12-1.212.0.3.el6_10.3.x86_64[root@oel6-rac01 ~]#now all points are fixed

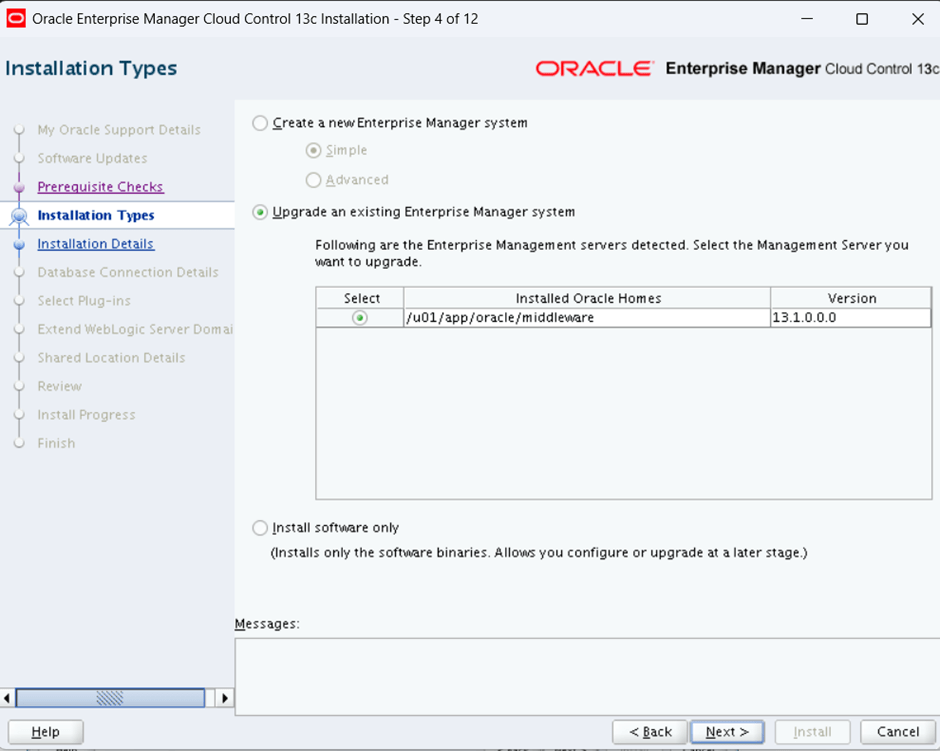

select the option to upgrade the oem. As mentioned existing version is 13.1

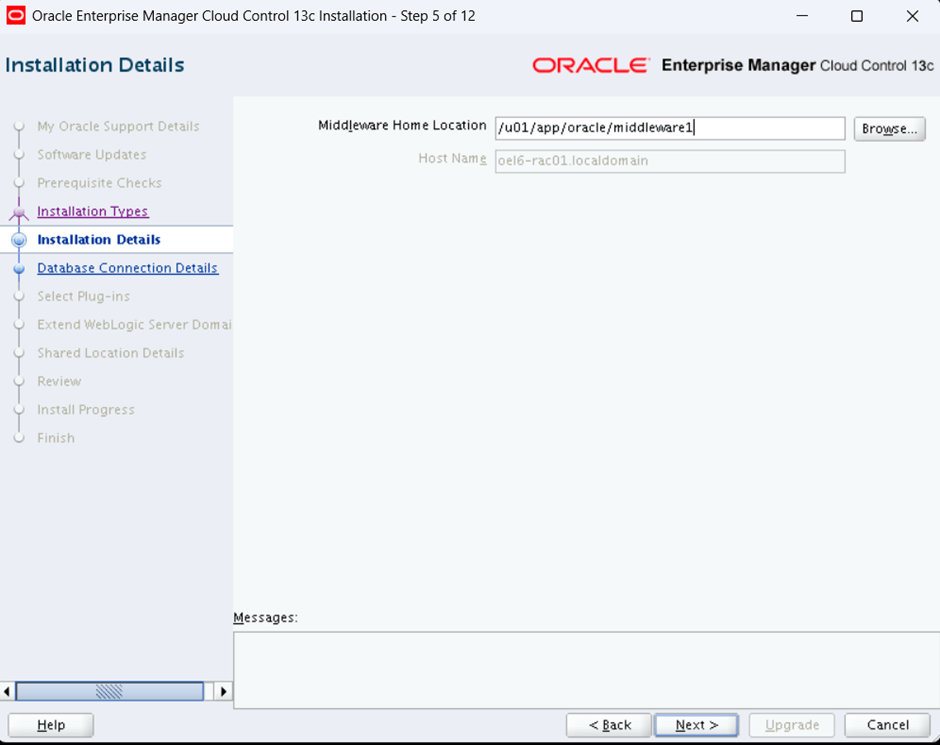

this is out of place upgrade so we need to provide new middleware home location

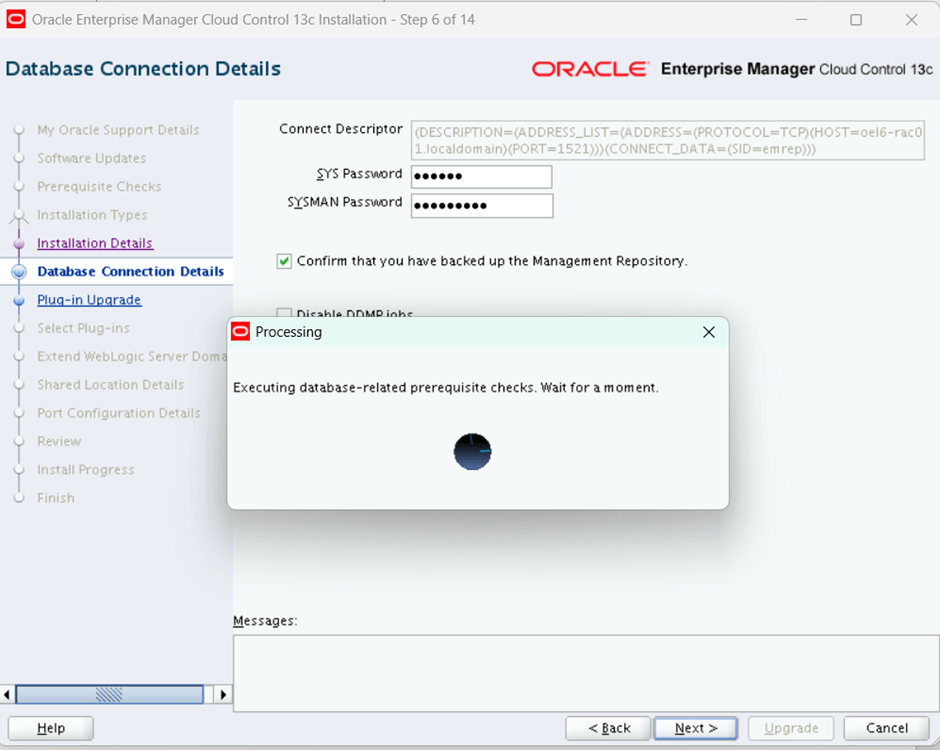

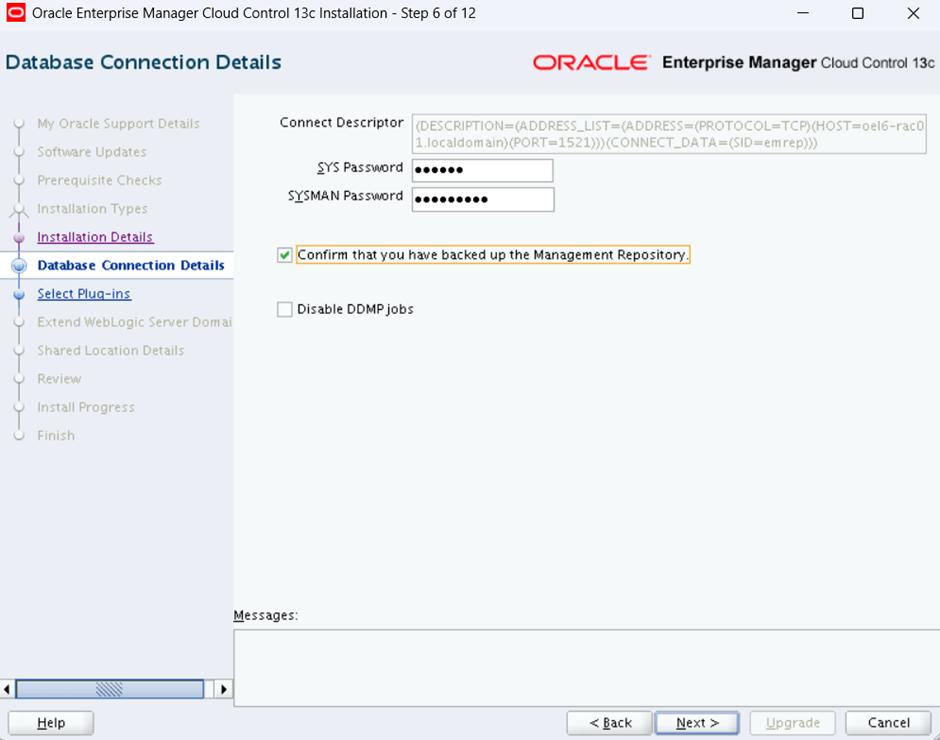

provide sys and sysman password for exiting oem and repo database

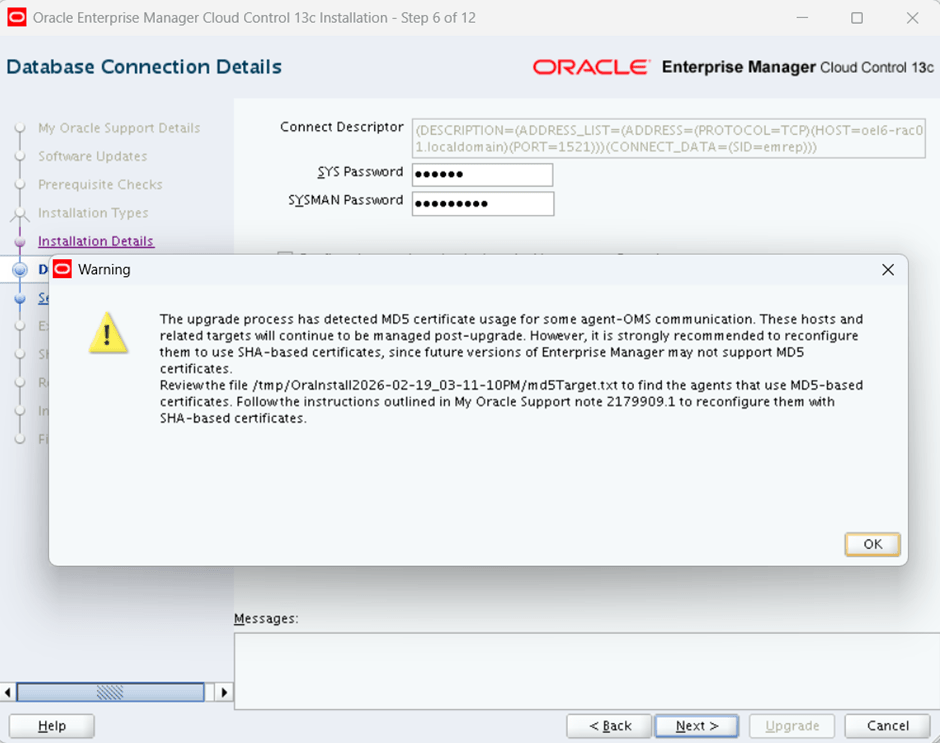

this need to be checked post upgrade

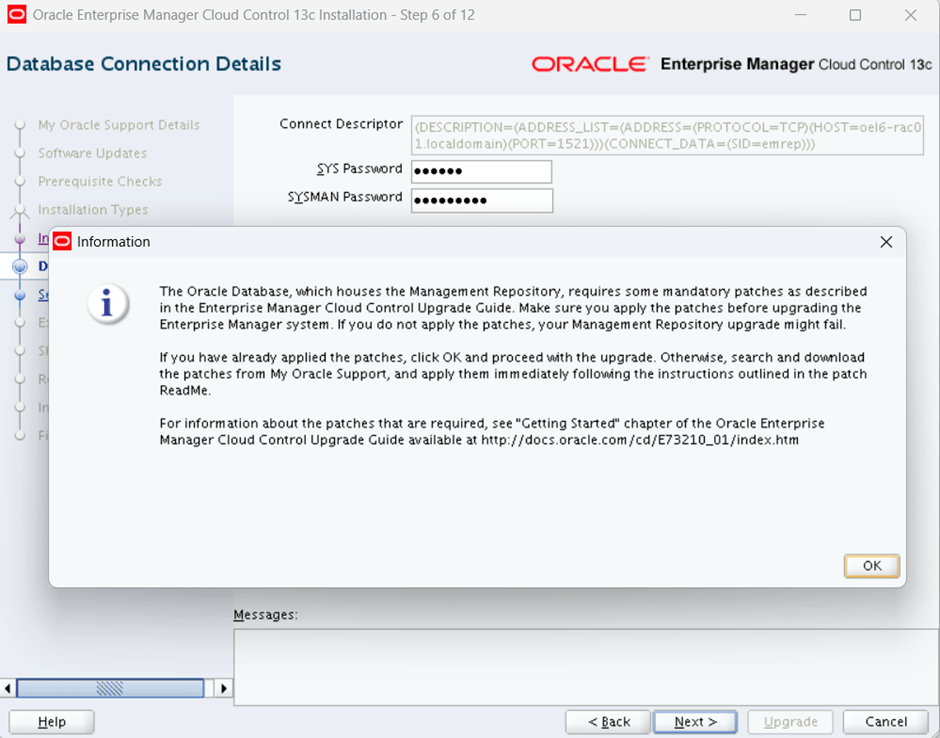

we got a warning to apply the patch on existing repo database
as per below url we need to apply April PSU
https://docs.oracle.com/cd/E73210_01/index.htm
DATABASE PATCH SET UPDATE 12.1.0.2.160419
Patch 22899531: DATABASE PROACTIVE BUNDLE PATCH 12.1.0.2.160419 (APR2016)
in this PSU two patches are applicable to db home
open a speparate window and apply the PSU
[root@oel6-rac01 ~]# su - oracle[oracle@oel6-rac01 ~]$ opatch versionOPatch Version: 12.2.0.1.49OPatch succeeded.[oracle@oel6-rac01 ~]$ opatch lsinventory -detail -oh /u01/app/oracle/product/12.1.0.2/db_1Oracle Interim Patch Installer version 12.2.0.1.49Copyright (c) 2026, Oracle Corporation. All rights reserved.Oracle Home : /u01/app/oracle/product/12.1.0.2/db_1Central Inventory : /u01/app/oraInventory from : /u01/app/oracle/product/12.1.0.2/db_1/oraInst.locOPatch version : 12.2.0.1.49OUI version : 12.1.0.2.0Log file location : /u01/app/oracle/product/12.1.0.2/db_1/cfgtoollogs/opatch/opatch2026-02-19_18-52-46PM_1.logLsinventory Output file location : /u01/app/oracle/product/12.1.0.2/db_1/cfgtoollogs/opatch/lsinv/lsinventory2026-02-19_18-52-46PM.txt--------------------------------------------------------------------------------Local Machine Information::Hostname: oel6-rac01.localdomainARU platform id: 226ARU platform description:: Linux x86-64Installed Top-level Products (1):Oracle Database 12c 12.1.0.2.0There are 1 products installed in this Oracle Home.Installed Products (135):Assistant Common Files 12.1.0.2.0Buildtools Common Files 12.1.0.2.0Cluster Verification Utility Common Files 12.1.0.2.0Database Configuration and Upgrade Assistants 12.1.0.2.0Database Migration Assistant for Unicode 12.1.0.2.0Database SQL Scripts 12.1.0.2.0Database Workspace Manager 12.1.0.2.0DB TOOLS Listener 12.1.0.2.0Deinstallation Tool 12.1.0.2.0Enterprise Edition Options 12.1.0.2.0Expat libraries 2.0.1.0.2Generic Connectivity Common Files 12.1.0.2.0Hadoopcore Component 12.1.0.2.0HAS Common Files 12.1.0.2.0HAS Files for DB 12.1.0.2.0Installation Common Files 12.1.0.2.0Installation Plugin Files 12.1.0.2.0Installer SDK Component 12.1.0.2.0JAccelerator (COMPANION) 12.1.0.2.0Java Development Kit 1.6.0.75.0LDAP Required Support Files 12.1.0.2.0OLAP SQL Scripts 12.1.0.2.0Oracle Advanced Security 12.1.0.2.0Oracle Application Express 12.1.0.2.0Oracle Bali Share 11.1.1.6.0Oracle Call Interface (OCI) 12.1.0.2.0Oracle Clusterware RDBMS Files 12.1.0.2.0Oracle Configuration Manager 10.3.8.1.1Oracle Configuration Manager Client 10.3.2.1.0Oracle Configuration Manager Deconfiguration 10.3.1.0.0Oracle Containers for Java 12.1.0.2.0Oracle Context Companion 12.1.0.2.0Oracle Core Required Support Files 12.1.0.2.0Oracle Core Required Support Files for Core DB 12.1.0.2.0Oracle Core XML Development Kit 12.1.0.2.0Oracle Data Mining RDBMS Files 12.1.0.2.0Oracle Database 12c 12.1.0.2.0Oracle Database 12c 12.1.0.2.0Oracle Database 12c Multimedia Files 12.1.0.2.0Oracle Database Deconfiguration 12.1.0.2.0Oracle Database Gateway for ODBC 12.1.0.2.0Oracle Database Plugin for Oracle Virtual Assembly Builder 12.1.0.2.0Oracle Database User Interface 11.0.0.0.0Oracle Database Utilities 12.1.0.2.0Oracle Database Vault option 12.1.0.2.0Oracle DBCA Deconfiguration 12.1.0.2.0Oracle Extended Windowing Toolkit 11.1.1.6.0Oracle Globalization Support 12.1.0.2.0Oracle Globalization Support 12.1.0.2.0Oracle Globalization Support For Core 12.1.0.2.0Oracle Help for Java 11.1.1.7.0Oracle Help Share Library 11.1.1.7.0Oracle Ice Browser 11.1.1.7.0Oracle Internet Directory Client 12.1.0.2.0Oracle Java Client 12.1.0.2.0Oracle Java Layout Engine 11.0.0.0.0Oracle JDBC Server Support Package 12.1.0.2.0Oracle JDBC/OCI Instant Client 12.1.0.2.0Oracle JDBC/THIN Interfaces 12.1.0.2.0Oracle JFC Extended Windowing Toolkit 11.1.1.6.0Oracle JVM 12.1.0.2.0Oracle JVM For Core 12.1.0.2.0Oracle Label Security 12.1.0.2.0Oracle LDAP administration 12.1.0.2.0Oracle Locale Builder 12.1.0.2.0Oracle Message Gateway Common Files 12.1.0.2.0Oracle Multimedia 12.1.0.2.0Oracle Multimedia Client Option 12.1.0.2.0Oracle Multimedia Java Advanced Imaging 12.1.0.2.0Oracle Multimedia Locator 12.1.0.2.0Oracle Multimedia Locator Java Required Support Files 12.1.0.2.0Oracle Multimedia Locator RDBMS Files 12.1.0.2.0Oracle Net 12.1.0.2.0Oracle Net Java Required Support Files 12.1.0.2.0Oracle Net Listener 12.1.0.2.0Oracle Net Required Support Files 12.1.0.2.0Oracle Net Services 12.1.0.2.0Oracle Netca Client 12.1.0.2.0Oracle Notification Service 12.1.0.2.0Oracle Notification Service (eONS) 12.1.0.2.0Oracle Notification Service for Instant Client 12.1.0.2.0Oracle ODBC Driver 12.1.0.2.0Oracle ODBC Driverfor Instant Client 12.1.0.2.0Oracle OLAP 12.1.0.2.0Oracle OLAP API 12.1.0.2.0Oracle OLAP RDBMS Files 12.1.0.2.0Oracle One-Off Patch Installer 12.1.0.1.2Oracle Partitioning 12.1.0.2.0Oracle Programmer 12.1.0.2.0Oracle Quality of Service Management (Client) 12.1.0.2.0Oracle R Enterprise Server Files 12.1.0.2.0Oracle RAC Deconfiguration 12.1.0.2.0Oracle RAC Required Support Files-HAS 12.1.0.2.0Oracle Real Application Testing 12.1.0.2.0Oracle Recovery Manager 12.1.0.2.0Oracle Security Developer Tools 12.1.0.2.0Oracle Spatial and Graph 12.1.0.2.0Oracle SQL Developer 12.1.0.2.0Oracle Starter Database 12.1.0.2.0Oracle Text 12.1.0.2.0Oracle Text ATG Language Support Files 12.1.0.2.0Oracle Text for Core 12.1.0.2.0Oracle Text Required Support Files 12.1.0.2.0Oracle Universal Connection Pool 12.1.0.2.0Oracle Universal Installer 12.1.0.2.0Oracle USM Deconfiguration 12.1.0.2.0Oracle Wallet Manager 12.1.0.2.0Oracle XML Development Kit 12.1.0.2.0Oracle XML Query 12.1.0.2.0oracle.swd.oui.core.min 12.1.0.2.0Parser Generator Required Support Files 12.1.0.2.0Perl Interpreter 5.14.1.0.0Perl Modules 5.14.1.0.0PL/SQL 12.1.0.2.0PL/SQL Embedded Gateway 12.1.0.2.0Platform Required Support Files 12.1.0.2.0Precompiler Common Files 12.1.0.2.0Precompiler Common Files for Core 12.1.0.2.0Precompiler Required Support Files 12.1.0.2.0Precompilers 12.1.0.2.0RDBMS Required Support Files 12.1.0.2.0RDBMS Required Support Files for Instant Client 12.1.0.2.0RDBMS Required Support Files Runtime 12.1.0.2.0Required Support Files 12.1.0.2.0Sample Schema Data 12.1.0.2.0Secure Socket Layer 12.1.0.2.0SQL*Plus 12.1.0.2.0SQL*Plus Files for Instant Client 12.1.0.2.0SQL*Plus Required Support Files 12.1.0.2.0SQLJ Runtime 12.1.0.2.0SSL Required Support Files for InstantClient 12.1.0.2.0Tracle File Analyzer 12.1.0.2.0XDK Required Support Files 12.1.0.2.0XML Parser for Java 12.1.0.2.0XML Parser for Oracle JVM 12.1.0.2.0There are 135 products installed in this Oracle Home.There are no Interim patches installed in this Oracle Home.--------------------------------------------------------------------------------OPatch succeeded.chekc conflict
[oracle@oel6-rac01 ~]$ opatch prereq CheckConflictAgainstOHWithDetail -phBaseDir /shared_dir/12_2_patch/22899531/22806133Oracle Interim Patch Installer version 12.2.0.1.49Copyright (c) 2026, Oracle Corporation. All rights reserved.PREREQ sessionOracle Home : /u01/app/oracle/product/12.1.0.2/db_1Central Inventory : /u01/app/oraInventory from : /u01/app/oracle/product/12.1.0.2/db_1/oraInst.locOPatch version : 12.2.0.1.49OUI version : 12.1.0.2.0Log file location : /u01/app/oracle/product/12.1.0.2/db_1/cfgtoollogs/opatch/opatch2026-02-19_18-56-33PM_1.logInvoking prereq "checkconflictagainstohwithdetail"Prereq "checkConflictAgainstOHWithDetail" passed.OPatch succeeded.[oracle@oel6-rac01 22899531]$ opatch prereq CheckConflictAgainstOHWithDetail -phBaseDir /shared_dir/12_2_patch/22899531/23006522Oracle Interim Patch Installer version 12.2.0.1.49Copyright (c) 2026, Oracle Corporation. All rights reserved.PREREQ sessionOracle Home : /u01/app/oracle/product/12.1.0.2/db_1Central Inventory : /u01/app/oraInventory from : /u01/app/oracle/product/12.1.0.2/db_1/oraInst.locOPatch version : 12.2.0.1.49OUI version : 12.1.0.2.0Log file location : /u01/app/oracle/product/12.1.0.2/db_1/cfgtoollogs/opatch/opatch2026-02-19_18-56-43PM_1.logInvoking prereq "checkconflictagainstohwithdetail"Prereq "checkConflictAgainstOHWithDetail" passed.OPatch succeeded. Run OPatch SystemSpace Check
[oracle@oel6-rac01 22899531]$ cat /tmp/patch_list_dbhome.txt/shared_dir/12_2_patch/22899531/22806133/shared_dir/12_2_patch/22899531/23006522[oracle@oel6-rac01 22899531]$[oracle@oel6-rac01 22899531]$ opatch prereq CheckSystemSpace -phBaseFile /tmp/patch_list_dbhome.txtOracle Interim Patch Installer version 12.2.0.1.49Copyright (c) 2026, Oracle Corporation. All rights reserved.PREREQ sessionOracle Home : /u01/app/oracle/product/12.1.0.2/db_1Central Inventory : /u01/app/oraInventory from : /u01/app/oracle/product/12.1.0.2/db_1/oraInst.locOPatch version : 12.2.0.1.49OUI version : 12.1.0.2.0Log file location : /u01/app/oracle/product/12.1.0.2/db_1/cfgtoollogs/opatch/opatch2026-02-19_18-59-02PM_1.logInvoking prereq "checksystemspace"Prereq "checkSystemSpace" passed.OPatch succeeded.[oracle@oel6-rac01 22899531]$apply both patch 22806133 and 23006522
[oracle@oel6-rac01 23006522]$ opatch applyOracle Interim Patch Installer version 12.2.0.1.49Copyright (c) 2026, Oracle Corporation. All rights reserved.Oracle Home : /u01/app/oracle/product/12.1.0.2/db_1Central Inventory : /u01/app/oraInventory from : /u01/app/oracle/product/12.1.0.2/db_1/oraInst.locOPatch version : 12.2.0.1.49OUI version : 12.1.0.2.0Log file location : /u01/app/oracle/product/12.1.0.2/db_1/cfgtoollogs/opatch/opatch2026-02-19_19-08-11PM_1.logVerifying environment and performing prerequisite checks...--------------------------------------------------------------------------------Start OOP by Prereq process.Launch OOP...Oracle Interim Patch Installer version 12.2.0.1.49Copyright (c) 2026, Oracle Corporation. All rights reserved.Oracle Home : /u01/app/oracle/product/12.1.0.2/db_1Central Inventory : /u01/app/oraInventory from : /u01/app/oracle/product/12.1.0.2/db_1/oraInst.locOPatch version : 12.2.0.1.49OUI version : 12.1.0.2.0Log file location : /u01/app/oracle/product/12.1.0.2/db_1/cfgtoollogs/opatch/opatch2026-02-19_19-08-29PM_1.logVerifying environment and performing prerequisite checks...OPatch continues with these patches: 23006522Do you want to proceed? [y|n]yUser Responded with: YAll checks passed.Please shutdown Oracle instances running out of this ORACLE_HOME on the local system.(Oracle Home = '/u01/app/oracle/product/12.1.0.2/db_1')Is the local system ready for patching? [y|n]yUser Responded with: YBacking up files...Applying interim patch '23006522' to OH '/u01/app/oracle/product/12.1.0.2/db_1'ApplySession: Optional component(s) [ oracle.crs, 12.1.0.2.0 ] not present in the Oracle Home or a higher version is found.Patching component oracle.has.db, 12.1.0.2.0...Patching component oracle.has.common, 12.1.0.2.0...Patch 23006522 successfully applied.Log file location: /u01/app/oracle/product/12.1.0.2/db_1/cfgtoollogs/opatch/opatch2026-02-19_19-08-29PM_1.logOPatch succeeded.[oracle@oel6-rac01 23006522]$[oracle@oel6-rac01 OPatch]$ cd /shared_dir/12_2_patch/22899531/22806133/[oracle@oel6-rac01 OPatch]$ cd /shared_dir/12_2_patch/22899531/22806133/[oracle@oel6-rac01 22806133]$ opatch applyOracle Interim Patch Installer version 12.2.0.1.49Copyright (c) 2026, Oracle Corporation. All rights reserved.Oracle Home : /u01/app/oracle/product/12.1.0.2/db_1Central Inventory : /u01/app/oraInventory from : /u01/app/oracle/product/12.1.0.2/db_1/oraInst.locOPatch version : 12.2.0.1.49OUI version : 12.1.0.2.0Log file location : /u01/app/oracle/product/12.1.0.2/db_1/cfgtoollogs/opatch/opatch2026-02-19_19-21-18PM_1.logVerifying environment and performing prerequisite checks...OPatch continues with these patches: 20243804 20415006 20594149 20788771 20950328 21125181 21359749 21527488 21694919 21949015 22806133Do you want to proceed? [y|n]yUser Responded with: YAll checks passed.Please shutdown Oracle instances running out of this ORACLE_HOME on the local system.(Oracle Home = '/u01/app/oracle/product/12.1.0.2/db_1')Is the local system ready for patching? [y|n]yUser Responded with: YBacking up files...Applying sub-patch '20243804' to OH '/u01/app/oracle/product/12.1.0.2/db_1'ApplySession: Optional component(s) [ oracle.has.crs, 12.1.0.2.0 ] not present in the Oracle Home or a higher version is found.Patching component oracle.rdbms.deconfig, 12.1.0.2.0...Patching component oracle.tfa, 12.1.0.2.0...Patching component oracle.rdbms.util, 12.1.0.2.0...Patching component oracle.rdbms, 12.1.0.2.0...Patching component oracle.rdbms.dbscripts, 12.1.0.2.0...Patching component oracle.has.deconfig, 12.1.0.2.0...Patching component oracle.xdk.parser.java, 12.1.0.2.0...Patching component oracle.oraolap, 12.1.0.2.0...Patching component oracle.xdk.rsf, 12.1.0.2.0...Patching component oracle.ctx.rsf, 12.1.0.2.0...Patching component oracle.rdbms.rman, 12.1.0.2.0...Patching component oracle.network.client, 12.1.0.2.0...Patching component oracle.rdbms.crs, 12.1.0.2.0...Patching component oracle.xdk, 12.1.0.2.0...Patching component oracle.nlsrtl.rsf, 12.1.0.2.0...Patching component oracle.rdbms.rsf, 12.1.0.2.0...Patching component oracle.rdbms.rsf.ic, 12.1.0.2.0...Patching component oracle.ldap.rsf, 12.1.0.2.0...Patching component oracle.ldap.rsf.ic, 12.1.0.2.0...Applying sub-patch '20415006' to OH '/u01/app/oracle/product/12.1.0.2/db_1'ApplySession: Optional component(s) [ oracle.has.crs, 12.1.0.2.0 ] not present in the Oracle Home or a higher version is found.Patching component oracle.network.rsf, 12.1.0.2.0...Patching component oracle.rdbms.deconfig, 12.1.0.2.0...Patching component oracle.rdbms, 12.1.0.2.0...Patching component oracle.rdbms.dbscripts, 12.1.0.2.0...Patching component oracle.hadoopcore, 12.1.0.2.0...Patching component oracle.rdbms.rsf, 12.1.0.2.0...Patching component oracle.oraolap, 12.1.0.2.0...Patching component oracle.rdbms.rman, 12.1.0.2.0...Applying sub-patch '20594149' to OH '/u01/app/oracle/product/12.1.0.2/db_1'ApplySession: Optional component(s) [ oracle.has.crs, 12.1.0.2.0 ] not present in the Oracle Home or a higher version is found.Patching component oracle.rdbms.dv, 12.1.0.2.0...Patching component oracle.tfa, 12.1.0.2.0...Patching component oracle.oracore.rsf, 12.1.0.2.0...Patching component oracle.rdbms.deconfig, 12.1.0.2.0...Patching component oracle.rdbms, 12.1.0.2.0...Patching component oracle.rdbms.dbscripts, 12.1.0.2.0...Patching component oracle.nlsrtl.rsf, 12.1.0.2.0...Patching component oracle.has.deconfig, 12.1.0.2.0...Patching component oracle.rdbms.rsf, 12.1.0.2.0...Patching component oracle.rdbms.rman, 12.1.0.2.0...Patching component oracle.ldap.rsf.ic, 12.1.0.2.0...Patching component oracle.ldap.rsf, 12.1.0.2.0...Applying sub-patch '20788771' to OH '/u01/app/oracle/product/12.1.0.2/db_1'Patching component oracle.rdbms.deconfig, 12.1.0.2.0...Patching component oracle.ldap.rsf, 12.1.0.2.0...Patching component oracle.rdbms.rsf, 12.1.0.2.0...Patching component oracle.rdbms, 12.1.0.2.0...Patching component oracle.rdbms.dbscripts, 12.1.0.2.0...Applying sub-patch '20950328' to OH '/u01/app/oracle/product/12.1.0.2/db_1'Patching component oracle.rdbms, 12.1.0.2.0...Patching component oracle.rdbms.rsf, 12.1.0.2.0...Applying sub-patch '21125181' to OH '/u01/app/oracle/product/12.1.0.2/db_1'Patching component oracle.rdbms, 12.1.0.2.0...Patching component oracle.oraolap, 12.1.0.2.0...Patching component oracle.tfa, 12.1.0.2.0...Patching component oracle.network.rsf, 12.1.0.2.0...Patching component oracle.rdbms.dbscripts, 12.1.0.2.0...Patching component oracle.rdbms.rman, 12.1.0.2.0...Patching component oracle.rdbms.rsf, 12.1.0.2.0...Applying sub-patch '21359749' to OH '/u01/app/oracle/product/12.1.0.2/db_1'ApplySession: Optional component(s) [ oracle.has.crs, 12.1.0.2.0 ] not present in the Oracle Home or a higher version is found.Patching component oracle.rdbms.deconfig, 12.1.0.2.0...Patching component oracle.rdbms.rsf, 12.1.0.2.0...Patching component oracle.rdbms, 12.1.0.2.0...Patching component oracle.rdbms.dbscripts, 12.1.0.2.0...Patching component oracle.tfa, 12.1.0.2.0...Applying sub-patch '21527488' to OH '/u01/app/oracle/product/12.1.0.2/db_1'ApplySession: Optional component(s) [ oracle.has.crs, 12.1.0.2.0 ] not present in the Oracle Home or a higher version is found.Patching component oracle.ctx.rsf, 12.1.0.2.0...Patching component oracle.rdbms.deconfig, 12.1.0.2.0...Patching component oracle.rdbms.rsf, 12.1.0.2.0...Patching component oracle.rdbms.rman, 12.1.0.2.0...Patching component oracle.rdbms, 12.1.0.2.0...Patching component oracle.rdbms.dbscripts, 12.1.0.2.0...Applying sub-patch '21694919' to OH '/u01/app/oracle/product/12.1.0.2/db_1'Patching component oracle.rdbms.rsf, 12.1.0.2.0...Patching component oracle.rdbms.dbscripts, 12.1.0.2.0...Patching component oracle.assistants.server, 12.1.0.2.0...Patching component oracle.xdk.rsf, 12.1.0.2.0...Patching component oracle.ctx.rsf, 12.1.0.2.0...Patching component oracle.rdbms, 12.1.0.2.0...Patching component oracle.sdo.locator, 12.1.0.2.0...Patching component oracle.rdbms.rman, 12.1.0.2.0...Patching component oracle.ctx, 12.1.0.2.0...Patching component oracle.xdk, 12.1.0.2.0...Patching component oracle.sdo, 12.1.0.2.0...Patching component oracle.tfa, 12.1.0.2.0...Applying sub-patch '21949015' to OH '/u01/app/oracle/product/12.1.0.2/db_1'ApplySession: Optional component(s) [ oracle.has.crs, 12.1.0.2.0 ] not present in the Oracle Home or a higher version is found.Patching component oracle.network.rsf, 12.1.0.2.0...Patching component oracle.rdbms.deconfig, 12.1.0.2.0...Patching component oracle.xdk, 12.1.0.2.0...Patching component oracle.tfa, 12.1.0.2.0...Patching component oracle.rdbms, 12.1.0.2.0...Patching component oracle.sdo.locator, 12.1.0.2.0...Patching component oracle.rdbms.dbscripts, 12.1.0.2.0...Patching component oracle.nlsrtl.rsf, 12.1.0.2.0...Patching component oracle.xdk.parser.java, 12.1.0.2.0...Patching component oracle.has.deconfig, 12.1.0.2.0...Patching component oracle.xdk.rsf, 12.1.0.2.0...Patching component oracle.rdbms.rsf, 12.1.0.2.0...Patching component oracle.rdbms.rman, 12.1.0.2.0...Patching component oracle.hadoopcore, 12.1.0.2.0...Patching component oracle.assistants.server, 12.1.0.2.0...Applying sub-patch '22806133' to OH '/u01/app/oracle/product/12.1.0.2/db_1'ApplySession: Optional component(s) [ oracle.oid.client, 12.1.0.2.0 ] not present in the Oracle Home or a higher version is found.Patching component oracle.network.rsf, 12.1.0.2.0...Patching component oracle.ldap.client, 12.1.0.2.0...Patching component oracle.rdbms.deconfig, 12.1.0.2.0...Patching component oracle.tfa, 12.1.0.2.0...Patching component oracle.rdbms.util, 12.1.0.2.0...Patching component oracle.rdbms, 12.1.0.2.0...Patching component oracle.rdbms.dbscripts, 12.1.0.2.0...Patching component oracle.xdk.parser.java, 12.1.0.2.0...Patching component oracle.has.deconfig, 12.1.0.2.0...Patching component oracle.oraolap, 12.1.0.2.0...Patching component oracle.rdbms.rman, 12.1.0.2.0...Patching component oracle.ldap.rsf, 12.1.0.2.0...Patching component oracle.rdbms.oci, 12.1.0.2.0...Patching component oracle.oracore.rsf, 12.1.0.2.0...Patching component oracle.ctx, 12.1.0.2.0...Patching component oracle.xdk, 12.1.0.2.0...Patching component oracle.nlsrtl.rsf, 12.1.0.2.0...Patching component oracle.ctx.atg, 12.1.0.2.0...Patching component oracle.rdbms.rsf, 12.1.0.2.0...Patching component oracle.oraolap.dbscripts, 12.1.0.2.0...Patching component oracle.hadoopcore, 12.1.0.2.0...Composite patch 22806133 successfully applied.Log file location: /u01/app/oracle/product/12.1.0.2/db_1/cfgtoollogs/opatch/opatch2026-02-19_19-21-18PM_1.logOPatch succeeded.[oracle@oel6-rac01 22806133]$run datapatch verbose and confirm the patch applied
[oracle@oel6-rac01 22806133]$ cd $ORACLE_HOME[oracle@oel6-rac01 db_1]$ cd OPatch[oracle@oel6-rac01 OPatch]$ ./datapatch -verboseSQL Patching tool version 12.1.0.2.0 on Thu Feb 19 19:31:47 2026Copyright (c) 2015, Oracle. All rights reserved.Log file for this invocation: /u01/app/oracle/cfgtoollogs/sqlpatch/sqlpatch_15445_2026_02_19_19_31_47/sqlpatch_invocation.logConnecting to database...OKBootstrapping registry and package to current versions...doneDetermining current state...doneCurrent state of SQL patches:Bundle series DBBP: ID 160419 in the binary registry and not installed in the SQL registryAdding patches to installation queue and performing prereq checks...Installation queue: Nothing to roll back The following patches will be applied: 22806133 (DATABASE BUNDLE PATCH: 12.1.0.2.160419 (22806133))Installing patches...Patch installation complete. Total patches installed: 1Validating logfiles...Patch 22806133 apply: SUCCESS logfile: /u01/app/oracle/cfgtoollogs/sqlpatch/22806133/19983161/22806133_apply_EMREP_2026Feb19_19_33_13.log (no errors)SQL Patching tool complete on Thu Feb 19 19:35:00 2026[oracle@oel6-rac01 OPatch]$[oracle@oel6-rac01 OPatch]$ opatch lsinventoryOracle Interim Patch Installer version 12.2.0.1.49Copyright (c) 2026, Oracle Corporation. All rights reserved.Oracle Home : /u01/app/oracle/product/12.1.0.2/db_1Central Inventory : /u01/app/oraInventory from : /u01/app/oracle/product/12.1.0.2/db_1/oraInst.locOPatch version : 12.2.0.1.49OUI version : 12.1.0.2.0Log file location : /u01/app/oracle/product/12.1.0.2/db_1/cfgtoollogs/opatch/opatch2026-02-19_19-35-53PM_1.logLsinventory Output file location : /u01/app/oracle/product/12.1.0.2/db_1/cfgtoollogs/opatch/lsinv/lsinventory2026-02-19_19-35-53PM.txt--------------------------------------------------------------------------------Local Machine Information::Hostname: oel6-rac01.localdomainARU platform id: 226ARU platform description:: Linux x86-64Installed Top-level Products (1):Oracle Database 12c 12.1.0.2.0There are 1 products installed in this Oracle Home.Interim patches (2) :Patch 22806133 : applied on Thu Feb 19 19:29:02 IST 2026Unique Patch ID: 19983161Patch description: "DATABASE BUNDLE PATCH: 12.1.0.2.160419 (22806133)" Created on 13 Apr 2016, 06:04:25 hrs PST8PDTSub-patch 21949015; "DATABASE BUNDLE PATCH: 12.1.0.2.160119 (21949015)"Sub-patch 21694919; "DATABASE BUNDLE PATCH: 12.1.0.2.13 (21694919)"Sub-patch 21527488; "DATABASE BUNDLE PATCH: 12.1.0.2.12 (21527488)"Sub-patch 21359749; "DATABASE BUNDLE PATCH: 12.1.0.2.11 (21359749)"Sub-patch 21125181; "DATABASE BUNDLE PATCH: 12.1.0.2.10 (21125181)"Sub-patch 20950328; "DATABASE BUNDLE PATCH: 12.1.0.2.9 (20950328)"Sub-patch 20788771; "DATABASE BUNDLE PATCH: 12.1.0.2.8 (20788771)"Sub-patch 20594149; "DATABASE BUNDLE PATCH: 12.1.0.2.7 (20594149)"Sub-patch 20415006; "DATABASE BUNDLE PATCH: 12.1.0.2.6 (20415006)"Sub-patch 20243804; "DATABASE BUNDLE PATCH: 12.1.0.2.5 (20243804)" Bugs fixed: 19277787, 19309466, 19438874, 19902195, 18250893, 20246939, 19240264 20070112, 18863094, 18112769, 18456643, 19175750, 19563433, 22347934 18845653, 19915271, 20013559, 18417036, 20801390, 19516448, 19571055 19906564, 18917800, 19410056, 19243521, 20752907, 19658708, 19859472 17734040, 18834993, 21153266, 20747533, 18971325, 19174430, 18900107 19347744, 19184226, 21214994, 19548064, 20381311, 20003739, 20131617 21559748, 20688221, 20586677, 21610048, 19495405, 13542050, 21387964 18938517, 19243313, 13498243, 20732272, 19012119, 19869255, 18681056 20985069, 18867241, 19298213, 20241212, 19439759, 19987300, 19303936 18856106, 20950386, 19542737, 19688599, 19175543, 22353346, 19147016 19494323, 19148107, 19461428, 20051868, 19134173, 22233968, 20447445 20717091, 21188584, 19390567, 18533573, 19769480, 21225209, 19536017 19284031, 19450314, 19051985, 19350952, 19016730, 19250261, 20919320 22075064, 19900800, 20445031, 22551446, 20024405, 20494044, 19440520 19310488, 16439813, 18354830, 19529953, 18594569, 20596234, 19240456 20611795, 19664340, 20088905, 20936905, 21568648, 20994184, 19590877 22268833, 19988852, 20697178, 22641033, 18990023, 13787015, 20392464 20128644, 18603592, 20563314, 20173897, 17210525, 21260431, 21174395 19448499, 21868720, 19124589, 17994602, 20819901, 19402853, 19403942 19888853, 20721341, 19272047, 19081128, 20637701, 22173980, 20988771 18859658, 19178851, 19723273, 19475862, 20540694, 19015671, 20951038 19024388, 22168163, 20020274, 18022774, 19791377, 19050649, 20920911 13846337, 19189762, 20001738, 19189525, 20125550, 20181016, 8899370 19060015, 19631051, 20265853, 18748005, 19136799, 18988834, 18952631 19146597, 17670355, 20063894, 19680455, 19540171, 20754928, 19238590 20387265, 16941434, 20801783, 20673810, 20356733, 22075019, 18889867 20927568, 18436647, 20565112, 19996677, 20825533, 19649808, 21517261 19124336, 21812537, 16293223, 19989904, 22228997, 20557750, 18899662 20284155, 20243804, 21774511, 21286665, 17365043, 20672955, 20969164 20952966, 19573061, 19176223, 21300341, 21136799, 18288842, 18783224 22053453, 22353199, 20881450, 19477176, 20011515, 19212166, 19327067 19188683, 22191356, 19973780, 22086638, 19004100, 19577410, 19377346 22491079, 20071054, 19899544, 18648423, 20565133, 19931709, 19295348 19162085, 21680130, 19576559, 20043616, 21131289, 18856999, 21187090 19353144, 19819141, 18893947, 18520414, 16010876, 19645496, 19176241 19562381, 21315800, 21903230, 19270287, 19189317, 19708632, 21917884 20938019, 20711718, 18973548, 18378632, 20250147, 19147636, 19680898 19197175, 19959229, 19029674, 19597439, 21387128, 19571082, 19180770 19879746, 18796543, 20227126, 20226038, 19345973, 21459225, 19509982 20847534, 20333204, 19544707, 19364018, 20216232, 19146778, 20421900 20322560, 18494306, 20063230, 19230607, 20144042, 19145675, 19446007 19192508, 18813860, 14254610, 20617709, 19971335, 19566974, 18829196 18418934, 19793397, 20808192, 20124446, 19371175, 19200481, 18940497 19074147, 22190791, 18818841, 20249656, 20893843, 16356176, 19154375 18996056, 19317646, 20545234, 19044962, 21342045, 19532017, 20328205 19795047, 18999568, 21164840, 22374754, 21279842, 19933147, 19843202 19982314, 18705806, 19578247, 19982551, 19914604, 19638998, 19215966 19183813, 19693124, 18921743, 19215968, 19065677, 22194927, 19018447 19018206, 17285555, 19056729, 19331728, 19777862, 19302393, 19166028 19783286, 20832474, 19304354, 19222052, 22519146, 20668053, 19168442 18911956, 20890311, 19131239, 19578230, 18642040, 18962266, 19262984 20869721, 22348206, 20225417, 19136936, 20028247, 22258530, 21221860 20052269, 21756699, 20494924, 20005124, 20217801, 19858928, 20897180 21080143, 19653712, 22304421, 19336395, 19810774, 19183834, 18618122 19130152, 19317899, 19566012, 22501616, 20176045, 19139189, 20557652 19066316, 18966843, 19077215, 18687126, 19021645, 20704450, 19068970 20543011, 19023822, 22302666, 20949664, 19238815, 21756677, 19192570 19624156, 21218243, 18674047, 19065222, 18847357, 19294529, 18849537 20340595, 20087383, 19271894, 20577490, 20800890, 21391017, 19308965 19882506, 18948177, 19728268, 18908550, 19468991, 20868862, 20466628 20397490, 21756661, 19706965, 19910052, 20217875, 19032777, 18622436 19329654, 20917841, 19307662, 19817386, 19791702, 21847223, 19843631 20177577, 20281121, 19075256, 19076343, 21117640, 18687101, 20904530 19076106, 19352437, 20441797, 14043712, 20296619, 20192960, 20593729 19624139, 21442094, 18907688, 22821774, 21087813, 19881439, 20675854 20426193, 20766694, 19614585, 18441401, 18689530, 18890834, 18840932 20294666, 18740837, 19701015, 19394032, 20548731, 20978173, 21330334 21517440, 20328279, 20496254, 19548688, 19014915, 19855835, 19054378 20144871, 19174942, 20020936, 22212940, 20468223, 19195409, 19483288 19152115, 19347458, 20146809, 18411216, 20117253, 19441649, 20746044 19931367, 22092979, 19191037, 21123913, 19591408, 20241083, 21839477 20005313, 20165574, 20005796, 19272708, 19547370, 19433200, 19191274 20069788, 18701619, 20228093, 21281532, 20603181, 14165431, 19805359 19461270, 19434529, 20609727, 18799063, 20378086, 19990543, 20831538 20424899, 20361671, 18674024, 19689979, 19537328, 21877749, 19173409 19854717, 19873610, 16619249, 19440105, 20707932, 21091431, 19440586 19907473, 19410553, 21241052, 19561643, 19153897, 19399918, 19512276 22068270, 19195895, 20017509, 22528955, 21665897, 20746251, 18663314 19264279, 18678808, 19067244, 18369237, 19478966, 20082778, 18885870 20081206, 21329301, 20106567, 19536415, 19588097, 19825394, 19645930 19381346, 20340510, 20446883, 19682278, 18897633, 21793604, 21744290 18463035, 18760601, 19582781, 19185876, 19594959, 20777159, 20794951 19547774, 19566293, 19161450, 20402832, 19627012, 20536378, 19488514 19526873, 20624914, 18966425, 19583624, 20027746, 19265346, 21116398 16863642, 19315691, 19539945, 19639483, 20001362, 19131607, 19174521 18115378, 19162308, 20401975, 18306996, 19875836, 22254139, 19359219 18810904, 19542097, 20261923, 19277336, 20318889, 19907278, 20828104 18120963, 19440386, 20261926, 21060755, 18942489, 19769625, 19341709 18996066, 20195148, 19188927, 20321129, 21765742, 20075921, 17655240 19028800, 19035573, 22492474, 19768226, 19366375, 19880190, 19289642 19250184, 19513298, 21293693, 19773811, 21293453, 19881042, 19824028 20126138, 20475845, 22528741, 20001466, 19447234, 20334691, 18257176 19263008, 19326908, 19597583, 19130972, 22837524, 19230581, 19288324 22046677, 21960504, 19054077, 19899833, 20096843, 20451844, 21899588 18647293, 19723336, 19835133, 17532734, 20679868, 19333670, 19598441 18798250, 21373473, 20026982, 19148478, 19687159, 19884571, 14643995 20232621, 20977794, 20824172, 19230595, 19698040, 17551063, 16938780 22297022, 21977392, 19607219, 19676012, 20588502, 21239922, 19520602 19841800, 20245930, 19001359, 21476308, 18753782, 19393542, 21099555 19563300, 19141838, 19644859, 20184217, 21915719, 19851608, 21032832 21421886, 19518539, 20105469, 20591915, 19358317, 19524158, 20130826 19525002, 19335438, 19871282, 19058490, 19150533, 19784751, 21651772 18799993, 19006817, 19347898, 19536132, 8889083, 20033247, 21427131 18967382, 20347562, 19696041, 20049681, 20348653, 19896336, 20496341 19632217, 20048359, 21896069, 19524384, 16087033, 19932939, 20781373 20440930, 19585773, 20815650, 19883038, 19791273, 19403858, 20322037 19591608, 18421248, 20962057, 22074084, 19571367, 19547013, 20276452 18914624, 20181155, 19927393, 19501299, 20425790, 19666651, 19686260 18508040, 13640676, 16870214, 18202441, 18743542, 19001390, 18424767 19609438, 20857041, 19012044, 20667450, 20072221, 20394750, 20310880 19571350, 21875360, 21306811, 19149990, 18900245, 20032123, 20287585 16777441, 19606174, 20848335, 19382851, 20528052, 20960011, 22762046 18897147, 19341239, 19952975, 22066671, 13683743, 20139836, 21950301 19354794, 19546825, 20952633, 19176326, 19146474, 19048007, 18877780 19212061, 19929706, 20011897, 18764841, 18739883, 21283023, 20159216 15894842, 19143193, 19354542, 18499088, 18665091, 18775971, 21059919 18952989, 18728991, 22077553, 19140924, 19647503, 20214168, 18938454 20794034, 19468347, 18803726, 19824871, 18802876, 19883092, 20657441 21285458, 20040448, 21136435, 20009569, 18051556, 17249267, 19995675 19699191, 18881811, 19248279, 19190401, 20669434, 19232702, 16875041 18964978, 18300729, 21373076, 14283239, 18749211, 18952766, 20185943 19970163, 21365452, 20217416, 20368850, 20011646, 19886365, 20798891 19982584, 15996428, 19013183, 20019581, 17972478, 19587324, 20656178 16739157, 22347859, 20061399, 19799847, 19682726, 18934048, 20716291 19192600, 18907741, 21121136, 22062026, 22153180, 20074466, 20658124 20096277, 19138800, 21976960, 20539160, 20134339, 20707790, 19811763 20724902, 18778801, 20101006, 19576659, 18797519, 20390564, 19906611 19029552, 21813529, 21345404, 19541796, 19354335, 19730508, 20617820 18787718, 21646361, 19051205, 20300454, 20161701, 20064203, 21533640 19680796, 17551261, 22717225, 21554789, 18964939, 19871910, 19230722 18942923, 22529018, 18684802, 19191531, 20133026, 18764866, 22366322 20010996, 19240996, 19159710, 19886165, 18868646, 19025195, 19274987 16923858, 19817284, 20320834, 19518079, 20480623, 19647120, 21093564 20233181, 20466322, 19144692, 20165291, 19189240, 20201112, 19181525 20842388, 17274537, 20194605, 20245173, 20130196, 20474192, 18900917 20366825, 20808220, 18679653, 19482919, 20313052, 20471920, 19052488 19899243, 19188385, 18727933, 20074391, 19131386, 19157754, 19865345 20451063, 19065556, 19364502, 19555029, 17284345, 18472224, 20123899 19146626, 19889230, 21322887, 22347483, 20879889, 19617921, 20399973 19578350, 20099675, 20900013, 20250735, 21516425, 19945499, 19624452 19363645, 19537845, 20233159, 19627721, 19291380, 19468612, 20534663 19705781, 19878106, 19248799, 20373598, 19155797, 19279273, 18886413 19475148, 19513406, 19990037, 20509482, 19647567, 18663279, 20534497 22529088, 21526048, 20018770, 20313024, 19879445, 19727038, 21620471 18816732, 19670108, 19509565, 19068610, 21180173, 20476175, 19460920 20808265, 21218121, 19385656, 20564072, 18895170, 19684504, 19220183 19330795, 20899461, 19143550, 19787571, 19376952, 19024808, 22926613 22030856, 16359751, 19604659, 21419192, 19212370, 19318409, 19480309 22653923, 19928926, 19566592, 19383247, 20212067, 19540182, 19327391 20256086, 21668627, 19196832, 20936447, 20877664, 19894622, 19912337 19487147, 18430870, 19430401, 19676905, 17158137, 20925795, 21350832 19662976, 18952331, 18497527, 19031341, 21827522, 19811709, 18673090 20708701, 19280225, 21315084, 19468890, 20354411, 19989009, 19233039 18953292, 20704530, 18963099, 19313563, 17319928, 19563715, 21372880 14705949, 20023092, 22675506, 19703301, 22452178, 20595686, 20003240 20122715, 22778199, 19258504, 21188532, 19362731, 17890099, 21649497 19485593, 16887946, 19693090, 18791688, 19192487, 19721304, 19490948 22841860, 19168395, 21151241, 18967466, 19878169, 19619732, 19890034 20266282, 19289499, 19818513, 19151370, 16556115, 19978542, 19264172 20279368, 19019270, 19409212, 19168167, 19969872, 19074086, 20984916 18990693, 19348649, 19698567, 22569317, 21632821, 19271943, 19953052 18735746, 20235511, 19649591, 19632912, 19200977, 20903906, 20209481 22901797, 18610915, 20723042, 19512155, 19798240, 21372897, 21079201 22761738, 19163723, 20832516, 20213973, 20664416, 19504946, 19120604 19523462, 20828433, 18968507, 19034201, 20830993, 19183343, 22255113 19585708, 20202880, 21787056, 19989661, 21273804, 20653340, 18511269 19049932, 16817656, 20082651, 17835294, 19187708, 18868195, 19527817 19818721, 18971927, 22664402, 19391024, 21308727, 20413820, 22051945 19262199, 19803231, 21550777, 19186845, 20703629, 20106456, 20558005 19891196, 18909599, 20093776, 19170047, 19526750, 19954575, 20618595 20230090, 20177858, 18127250, 18944562, 19043177, 20331945, 19175732 19512341, 22514212, 19637186, 19022470, 18607546, 19301392, 18954112 20070689, 19649152, 20148087, 20841419, 18510194, 20739811, 20672075 18758877, 20355900, 22376809, 19582642, 20027864, 20024112Patch 23006522 : applied on Thu Feb 19 19:10:17 IST 2026Unique Patch ID: 20032392Patch description: "OCW Interim patch for 23006522" Created on 15 Apr 2016, 02:11:55 hrs PST8PDT Bugs fixed: 13843841, 14661880, 14851828, 15885689, 16286734, 16505171, 17208793 17338864, 17447588, 17592037, 17940721, 18135723, 18235274, 18242738 18260170, 18261648, 18283792, 18290252, 18304090, 18317489, 18330979 18362971, 18372060, 18406774, 18417590, 18439295, 18508710, 18520351 18523468, 18524834, 18536826, 18541110, 18589889, 18604143, 18634372 18636884, 18643483, 18678829, 18700893, 18703978, 18707416, 18708349 18715868, 18715884, 18729269, 18730096, 18747335, 18747382, 18748932 18750781, 18752378, 18759724, 18762843, 18776786, 18777835, 18798432 18798573, 18813323, 18819158, 18827679, 18834934, 18834955, 18835283 18835366, 18843054, 18843572, 18849021, 18849896, 18850051, 18852058 18859710, 18861196, 18861564, 18862203, 18868829, 18871287, 18875012 18882642, 18890943, 18894342, 18899171, 18901356, 18907170, 18910443 18910576, 18910748, 18919682, 18920408, 18922918, 18937186, 18943696 18945249, 18945435, 18945906, 18946768, 18950232, 18952577, 18952857 18953639, 18953878, 18953889, 18955644, 18956780, 18962892, 18964974 18965694, 18968981, 18975620, 18980002, 18989446, 18990354, 18991776 18998228, 18998379, 18999195, 18999857, 19010177, 19013444, 19013789 19018001, 19021575, 19023430, 19026993, 19027351, 19029647, 19031737 19043795, 19045143, 19045388, 19046190, 19049721, 19050688, 19051385 19053891, 19054979, 19059053, 19061429, 19062675, 19066699, 19066844 19067804, 19068003, 19068333, 19069755, 19071526, 19075747, 19076165 19076778, 19079087, 19124972, 19127078, 19130141, 19131709, 19133945 19134098, 19135521, 19139608, 19140711, 19140712, 19140891, 19141785 19146822, 19146980, 19147509, 19147513, 19147751, 19148367, 19148791 19148793, 19148982, 19150088, 19150313, 19150517, 19154673, 19154753 19155350, 19163425, 19163887, 19164099, 19168690, 19178517, 19178629 19179158, 19184188, 19184276, 19184765, 19184799, 19185148, 19187207 19187515, 19192901, 19203996, 19204743, 19205086, 19205617, 19207286 19209951, 19217019, 19222693, 19225265, 19226141, 19226858, 19230771 19232454, 19234177, 19234907, 19241655, 19241857, 19244316, 19259290 19259765, 19262534, 19266658, 19270660, 19270956, 19272663, 19273577 19273758, 19273760, 19277814, 19280860, 19281106, 19288396, 19292272 19292605, 19302350, 19304104, 19314048, 19315522, 19315567, 19318983 19319192, 19319357, 19319904, 19325604, 19325701, 19331454, 19332386 19341481, 19341538, 19343245, 19351363, 19361757, 19367276, 19368917 19370739, 19370846, 19371270, 19380733, 19383028, 19414274, 19426384 19427050, 19444471, 19449737, 19453778, 19455563, 19457575, 19458082 19459023, 19470791, 19471722, 19471836, 19473088, 19473851, 19478119 19479503, 19498411, 19499021, 19500293, 19504641, 19513351, 19513650 19513888, 19513969, 19514085, 19521169, 19522067, 19522313, 19522571 19524857, 19529729, 19530755, 19536337, 19537547, 19537762, 19538241 19538714, 19550195, 19551830, 19556820, 19557558, 19558324, 19584688 19585454, 19589221, 19591356, 19591984, 19601003, 19602208, 19609388 19612597, 19613533, 19617592, 19620918, 19627476, 19632437, 19635215 19649640, 19653795, 19659885, 19662663, 19680763, 19682695, 19683886 19684131, 19699720, 19700256, 19700294, 19701617, 19702758, 19703199 19703246, 19704993, 19709663, 19777496, 19804032, 19807548, 19812592 19820247, 19831611, 19853036, 19874047, 19885321, 19908346, 19915945 19916737, 19925992, 19954372, 19955755, 19986391, 20001507, 20006646 20011424, 20011635, 20012766, 20014326, 20028666, 20033787, 20038431 20053557, 20061168, 20079414, 20091753, 20099624, 20115586, 20119857 20136892, 20157569, 20160490, 20177779, 20185476, 20186278, 20218012 20219458, 20231741, 20235486, 20276459, 20289828, 20290467, 20293730 20317221, 20340620, 20350915, 20363708, 20408163, 20467806, 20510208 20552947, 20562133, 20598625, 20607821, 20620581, 20634511, 20649573 20660273, 20669114, 20676340, 20725084, 20730170, 20746507, 20752167 20758997, 20768643, 20775015, 20783416, 20795241, 20822591, 20839581 20853464, 20862812, 20877003, 20877072, 20883009, 20900588, 20923930 20953798, 20995001, 21053036, 21082737, 21087799, 21113068, 21123424 21131037, 21210985, 21220597, 21222147, 21227730, 21232394, 21242118 21245437, 21255373, 21259359, 21276514, 21294273, 21297657, 21327402 21339083, 21378016, 21394146, 21420753, 21423055, 21453435, 21474380 21484367, 21519340, 21527118, 21607972, 21616278, 21646169, 21692274 21694237, 21694632, 21696068, 21794779, 22024217, 22289350, 22302421 22989069, 23101338, 9372680--------------------------------------------------------------------------------OPatch succeeded.[oracle@oel6-rac01 OPatch]$once finished clidck ok
stop jvmd
[oracle@oel6-rac01 ~]$ /u01/app/oracle/middleware/bin/emctl status oms -detailsOracle Enterprise Manager Cloud Control 13c Release 1Copyright (c) 1996, 2015 Oracle Corporation. All rights reserved.Enter Enterprise Manager Root (SYSMAN) Password :Console Server Host : oel6-rac01.localdomainHTTP Console Port : 7790HTTPS Console Port : 7803HTTP Upload Port : 4890HTTPS Upload Port : 4904EM Instance Home : /u01/app/oracle/gc_inst1/em/EMGC_OMS1OMS Log Directory Location : /u01/app/oracle/gc_inst1/em/EMGC_OMS1/sysman/logOMS is not configured with SLB or virtual hostnameAgent Upload is locked.OMS Console is locked.Active CA ID: 1Console URL: https://oel6-rac01.localdomain:7803/emUpload URL: https://oel6-rac01.localdomain:4904/empbs/uploadWLS Domain InformationDomain Name : GCDomainAdmin Server Host : oel6-rac01.localdomainAdmin Server HTTPS Port: 7103Admin Server is RUNNINGOracle Management Server InformationManaged Server Instance Name: EMGC_OMS1Oracle Management Server Instance Host: oel6-rac01.localdomainWebTier is UpOracle Management Server is UpJVMD Engine is UpBI Publisher Server InformationBI Publisher Managed Server Name: BIPBI Publisher Server is UpBI Publisher HTTP Managed Server Port : 9701BI Publisher HTTPS Managed Server Port : 9804BI Publisher HTTP OHS Port : 9751BI Publisher HTTPS OHS Port : 9852BI Publisher is locked.BI Publisher Server named 'BIP' running at URL: https://oel6-rac01.localdomain:9852/xmlpserverBI Publisher Server Logs: /u01/app/oracle/gc_inst1/user_projects/domains/GCDomain/servers/BIP/logs/BI Publisher Log : /u01/app/oracle/gc_inst1/user_projects/domains/GCDomain/servers/BIP/logs/bipublisher/bipublisher.log[oracle@oel6-rac01 ~]$[oracle@oel6-rac01 ~]$ /u01/app/oracle/middleware/bin/emctl extended oms jvmd stop -allOracle Enterprise Manager Cloud Control 13c Release 1Copyright (c) 1996, 2015 Oracle Corporation. All rights reserved.No verb found to be registered with emctl extensibles framework[oracle@oel6-rac01 ~]$stop the agent
[oracle@oel6-rac01 ~]$ /u01/app/oracle/agent/agent_13.1.0.0.0/bin/emctl stop agentOracle Enterprise Manager Cloud Control 13c Release 1Copyright (c) 1996, 2015 Oracle Corporation. All rights reserved.Stopping agent ... stopped.[oracle@oel6-rac01 ~]$

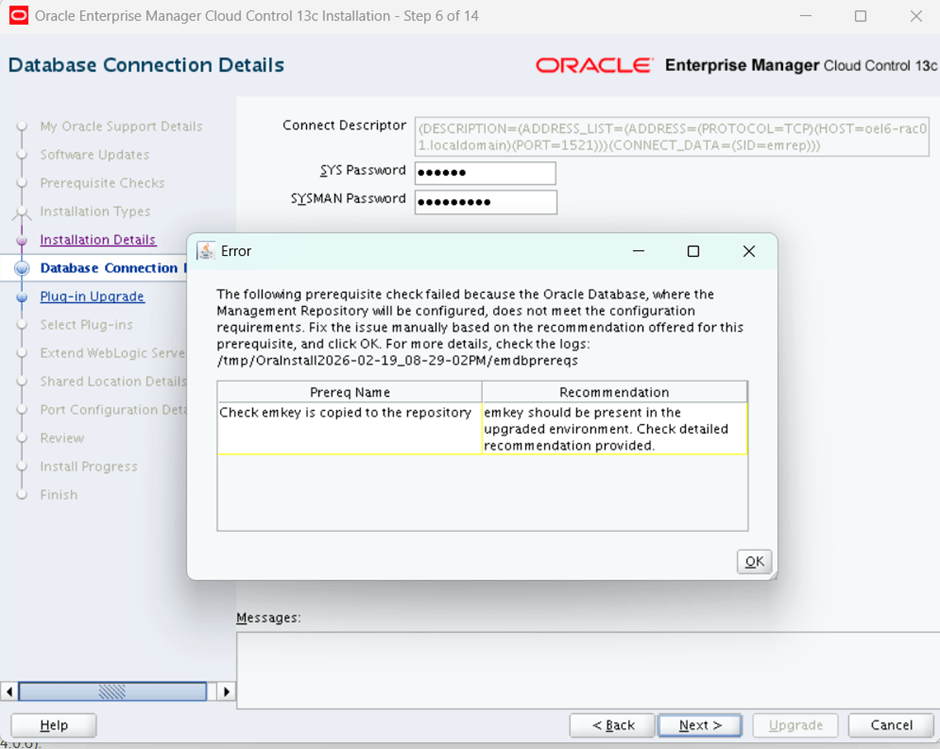

copy emkey warning
copy the emkey
[oracle@oel6-rac01 ~]$ /u01/app/oracle/middleware/bin/emctl status emkeyOracle Enterprise Manager Cloud Control 13c Release 1Copyright (c) 1996, 2015 Oracle Corporation. All rights reserved.Enter Enterprise Manager Root (SYSMAN) Password :The EMKey is configured properly.[oracle@oel6-rac01 ~]$ /u01/app/oracle/middleware/bin/emctl config emkey -copy_to_reposOracle Enterprise Manager Cloud Control 13c Release 1Copyright (c) 1996, 2015 Oracle Corporation. All rights reserved.Enter Enterprise Manager Root (SYSMAN) Password :The EMKey has been copied to the Management Repository. This operation will cause the EMKey to become unsecure.After the required operation has been completed, secure the EMKey by running "emctl config emkey -remove_from_repos".[oracle@oel6-rac01 ~]$ /u01/app/oracle/middleware/bin/emctl status emkeyOracle Enterprise Manager Cloud Control 13c Release 1Copyright (c) 1996, 2015 Oracle Corporation. All rights reserved.Enter Enterprise Manager Root (SYSMAN) Password :The EMKey is configured properly, but is not secure. Secure the EMKey by running "emctl config emkey -remove_from_repos".[oracle@oel6-rac01 ~]$make job queue process 0 and disbable stats gather

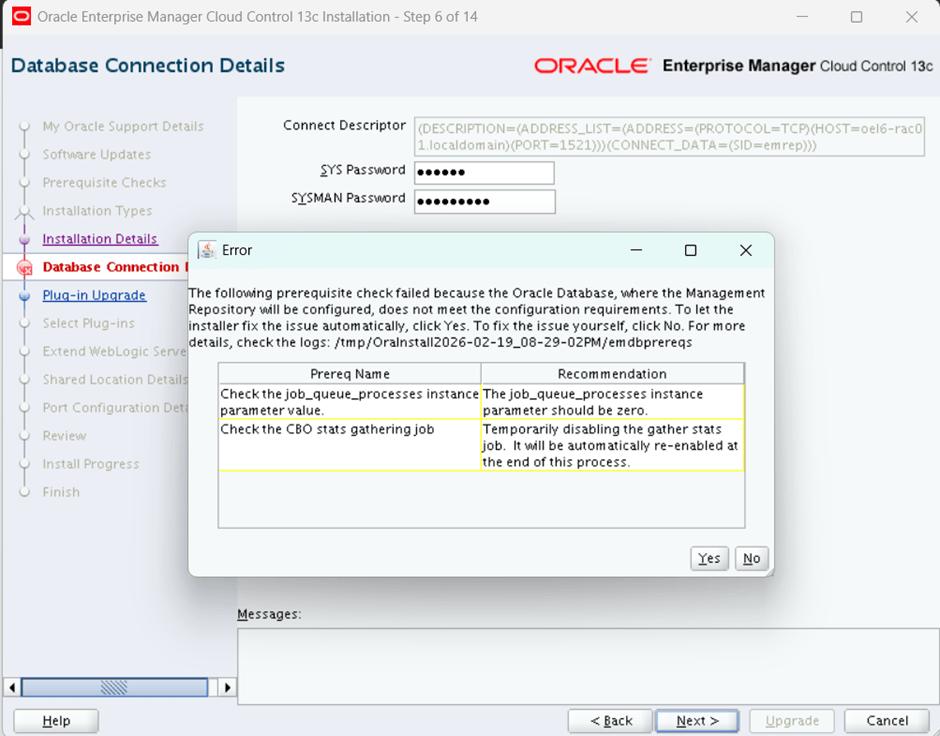

SQL> sho parameter job_qNAME TYPE VALUE------------------------------------ ----------- ------------------------------job_queue_processes integer 50SQL> alter system set job_queue_processes=0 scope=both;System altered.SQL> sho parameter job_qNAME TYPE VALUE------------------------------------ ----------- ------------------------------job_queue_processes integer 0SQL> SELECT client_name, status FROM DBA_AUTOTASK_CLIENT WHERE client_name = 'auto optimizer stats collection';CLIENT_NAME STATUS---------------------------------------------------------------- --------auto optimizer stats collection ENABLEDSQL> EXEC DBMS_AUTO_TASK_ADMIN.DISABLE(client_name => 'auto optimizer stats collection', operation => NULL, window_name => NULL);PL/SQL procedure successfully completed.SQL> SELECT client_name, status FROM DBA_AUTOTASK_CLIENT WHERE client_name = 'auto optimizer stats collection';CLIENT_NAME STATUS---------------------------------------------------------------- --------auto optimizer stats collection DISABLED
check setting click ok
SQL> sho parameter pgaNAME TYPE VALUE------------------------------------ ----------- ------------------------------pga_aggregate_limit big integer 2Gpga_aggregate_target big integer 100MSQL> sho parameter sgaNAME TYPE VALUE------------------------------------ ----------- ------------------------------lock_sga boolean FALSEpre_page_sga boolean TRUEsga_max_size big integer 5Gsga_target big integer 5Gunified_audit_sga_queue_size integer 1048576
stop oms
[oracle@oel6-rac01 ~]$ /u01/app/oracle/middleware/bin/emctl stop oms -all -forceOracle Enterprise Manager Cloud Control 13c Release 1Copyright (c) 1996, 2015 Oracle Corporation. All rights reserved.Stopping Oracle Management Server...WebTier Successfully StoppedOracle Management Server Successfully StoppedOracle Management Server is DownJVMD Engine is DownStopping BI Publisher Server...BI Publisher Server Successfully StoppedAdminServer Successfully StoppedBI Publisher Server is Down[oracle@oel6-rac01 ~]$

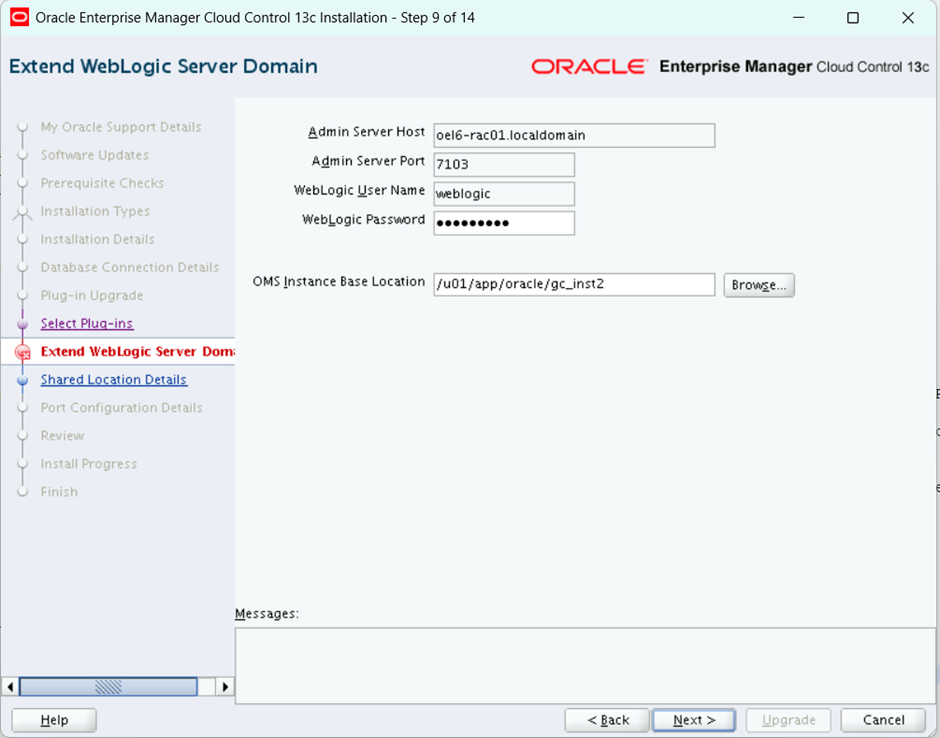

provide shared location for BI publisher

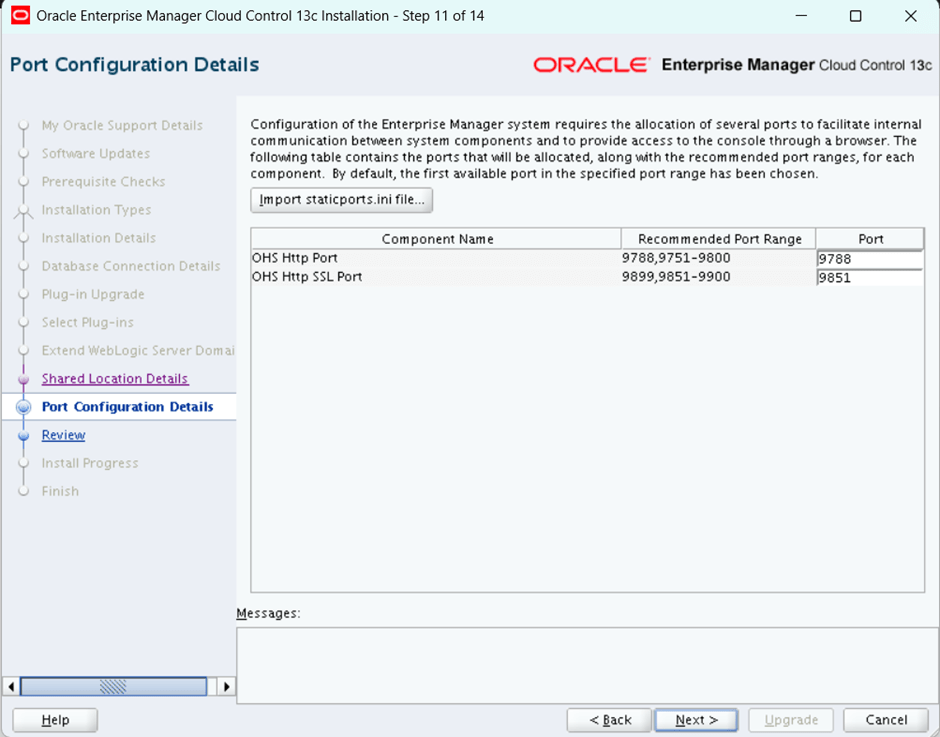

i picked the default ports

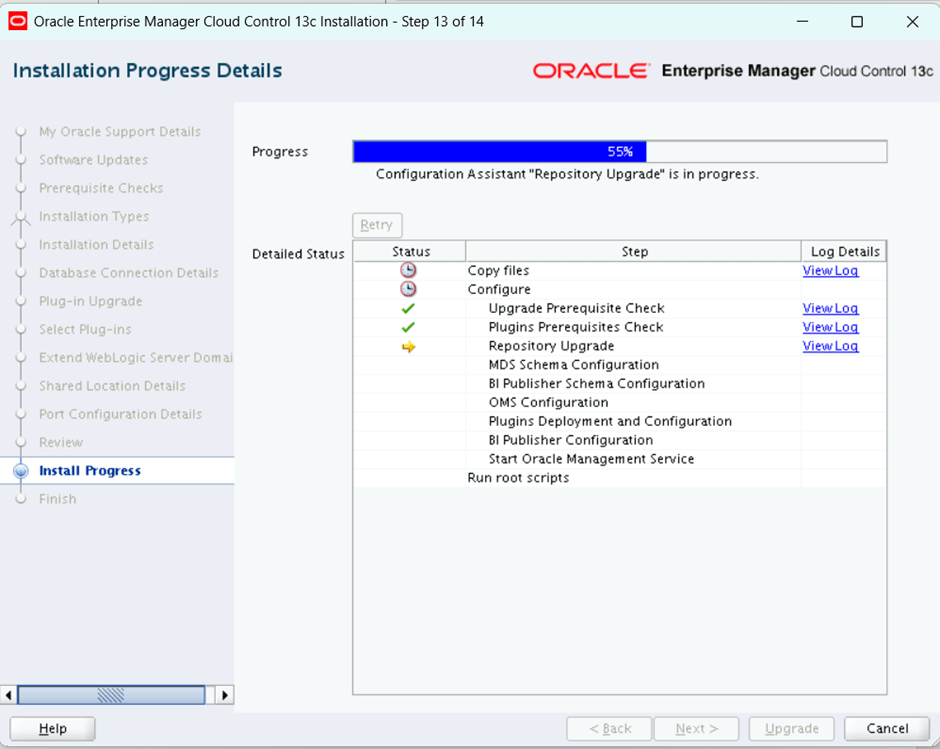

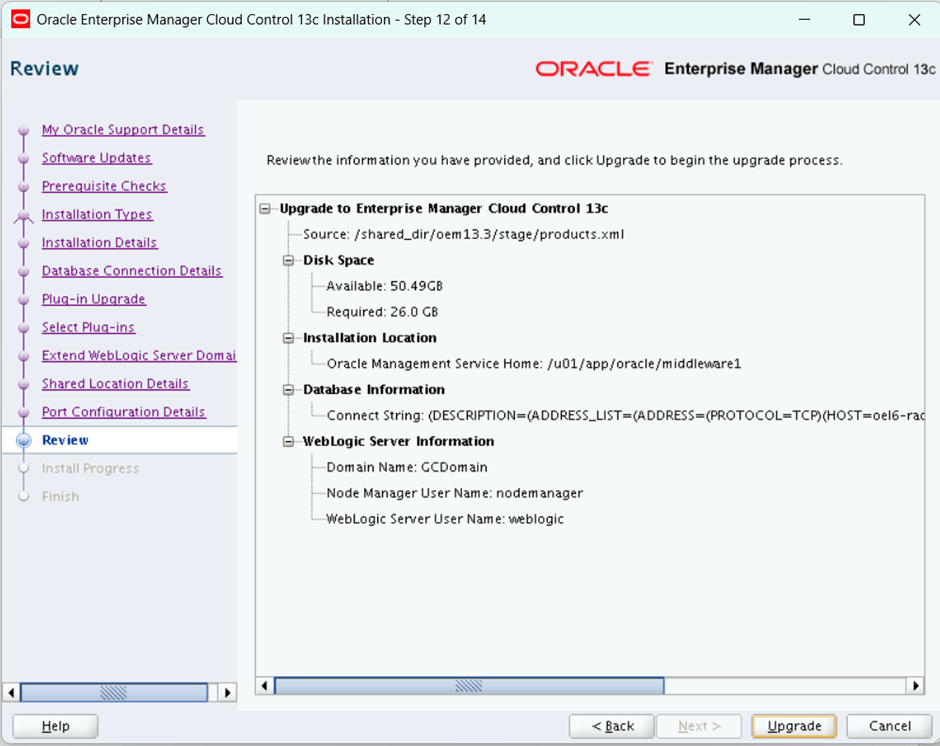

once finished run allroot.sh
[root@oel6-rac01 middleware1]# /u01/app/oracle/middleware1/allroot.shStarting to execute allroot.sh .........Starting to execute /u01/app/oracle/middleware1/root.sh ....../etc exist/u01/app/oracle/middleware1Finished execution of /u01/app/oracle/middleware1/root.sh ......[oracle@oel6-rac01 bin]$ /u01/app/oracle/middleware1/bin/emctl status oms -detailsOracle Enterprise Manager Cloud Control 13c Release 3Copyright (c) 1996, 2018 Oracle Corporation. All rights reserved.Enter Enterprise Manager Root (SYSMAN) Password :Console Server Host : oel6-rac01.localdomainHTTP Console Port : 7790HTTPS Console Port : 7803HTTP Upload Port : 4890HTTPS Upload Port : 4904EM Instance Home : /u01/app/oracle/gc_inst2/em/EMGC_OMS1OMS Log Directory Location : /u01/app/oracle/gc_inst2/em/EMGC_OMS1/sysman/logOMS is not configured with SLB or virtual hostnameAgent Upload is locked.OMS Console is locked.Active CA ID: 1Console URL: https://oel6-rac01.localdomain:7803/emUpload URL: https://oel6-rac01.localdomain:4904/empbs/uploadWLS Domain InformationDomain Name : GCDomainAdmin Server Host : oel6-rac01.localdomainAdmin Server HTTPS Port: 7103Admin Server is RUNNINGOracle Management Server InformationManaged Server Instance Name: EMGC_OMS1Oracle Management Server Instance Host: oel6-rac01.localdomainWebTier is UpOracle Management Server is UpJVMD Engine is UpBI Publisher Server InformationBI Publisher Managed Server Name: BIPBI Publisher Server is UpBI Publisher HTTP Managed Server Port : 9701BI Publisher HTTPS Managed Server Port : 9804BI Publisher HTTP OHS Port : 9788BI Publisher HTTPS OHS Port : 9851BI Publisher is locked.BI Publisher Server named 'BIP' running at URL: https://oel6-rac01.localdomain:9851/xmlpserver/servlet/homeBI Publisher Server Logs: /u01/app/oracle/gc_inst2/user_projects/domains/GCDomain/servers/BIP/logs/BI Publisher Log : /u01/app/oracle/gc_inst2/user_projects/domains/GCDomain/servers/BIP/logs/bipublisher/bipublisher.loglogin to oem and verifiy the new version
start the agent
[oracle@oel6-rac01 ~]$ /u01/app/oracle/agent/agent_13.1.0.0.0/bin/emctl start agentOracle Enterprise Manager Cloud Control 13c Release 1Copyright (c) 1996, 2015 Oracle Corporation. All rights reserved.Starting agent .......................................................... started.[oracle@oel6-rac01 ~]$ /u01/app/oracle/agent/agent_13.1.0.0.0/bin/emctl status agentOracle Enterprise Manager Cloud Control 13c Release 1Copyright (c) 1996, 2015 Oracle Corporation. All rights reserved.---------------------------------------------------------------Agent Version : 13.1.0.0.0OMS Version : 13.3.0.0.0Protocol Version : 12.1.0.1.0Agent Home : /u01/app/oracle/agent/agent_instAgent Log Directory : /u01/app/oracle/agent/agent_inst/sysman/logAgent Binaries : /u01/app/oracle/agent/agent_13.1.0.0.0Core JAR Location : /u01/app/oracle/agent/agent_13.1.0.0.0/jlibAgent Process ID : 3737Parent Process ID : 3648Agent URL : https://oel6-rac01.localdomain:3872/emd/main/Local Agent URL in NAT : https://oel6-rac01.localdomain:3872/emd/main/Repository URL : https://oel6-rac01.localdomain:4904/empbs/uploadStarted at : 2026-02-20 14:26:34Started by user : oracleOperating System : Linux version 4.1.12-124.38.1.el6uek.x86_64 (amd64)Number of Targets : 46Last Reload : (none)Last successful upload : 2026-02-20 14:27:41Last attempted upload : 2026-02-20 14:27:41Total Megabytes of XML files uploaded so far : 0.11Number of XML files pending upload : 0Size of XML files pending upload(MB) : 0Available disk space on upload filesystem : 27.38%Collection Status : Collections enabledHeartbeat Status : OkLast attempted heartbeat to OMS : 2026-02-20 14:27:13Last successful heartbeat to OMS : 2026-02-20 14:27:13Next scheduled heartbeat to OMS : 2026-02-20 14:28:22---------------------------------------------------------------Agent is Running and Ready[oracle@oel6-rac01 ~]$ /u01/app/oracle/agent/agent_13.1.0.0.0/bin/emctl upload agentOracle Enterprise Manager Cloud Control 13c Release 1Copyright (c) 1996, 2015 Oracle Corporation. All rights reserved.---------------------------------------------------------------EMD upload completed successfully
