EM Express was earlier called DB console. It lightweight and have minimal overhead on the database server. It uses internal infrastructure components such as XDB and SQL*Net. It does not require any separate middle-tier components.
In this article we will see how to enable EM express for two databases on same server.
Server - ggsource.localdomain (ip - 192.168.189.131)
Database – Germany, gclone1
Basically three settings need to be done
- Unique https port for every database
- ORACLE_SIDXDB service should be registered with listener
- Setting dispatchers parameter
GCLONE1 database setting
ensure dispatcher parameter has below setting. Here SERVICE name value is ORACLE_SIDXDB
SYS@ gclone1>ALTER SYSTEM SET DISPATCHERS = '(PROTOCOL=TCP) (SERVICE=gclone1XDB)';
System altered.
SYS@ gclone1>sho parameter dispa
NAME TYPE VALUE
------------------------------------ ----------- ------------------------------
dispatchers string (PROTOCOL=TCP) (SERVICE=gclone
1XDB)
max_dispatchers integer
SYS@ gclone1>exec dbms_xdb_config.sethttpsport (5502);
PL/SQL procedure successfully completed.
SYS@ gclone1>select dbms_xdb_config.gethttpsport () from dual;
DBMS_XDB_CONFIG.GETHTTPSPORT()
------------------------------
5502
Make sure gclone1XDB service need to be registered inside listener.
SYS@ gclone1>!lsnrctl status
LSNRCTL for Linux: Version 12.1.0.2.0 - Production on 13-APR-2020 11:41:46
Copyright (c) 1991, 2014, Oracle. All rights reserved.
Connecting to (DESCRIPTION=(ADDRESS=(PROTOCOL=TCP)(HOST=ggsource.localdomain)(PORT=1521)))
STATUS of the LISTENER
------------------------
Alias LISTENER
Version TNSLSNR for Linux: Version 12.1.0.2.0 - Production
Start Date 12-APR-2020 10:36:05
Uptime 1 days 1 hr. 5 min. 41 sec
Trace Level off
Security ON: Local OS Authentication
SNMP OFF
Listener Parameter File /u01/app/oracle/product/12.1.0/dbhome_1/network/admin/listener.ora
Listener Log File /u01/app/oracle/diag/tnslsnr/ggsource/listener/alert/log.xml
Listening Endpoints Summary...
(DESCRIPTION=(ADDRESS=(PROTOCOL=tcp)(HOST=ggsource.localdomain)(PORT=1521)))
(DESCRIPTION=(ADDRESS=(PROTOCOL=ipc)(KEY=EXTPROC1521)))
(DESCRIPTION=(ADDRESS=(PROTOCOL=tcps)(HOST=ggsource.localdomain)(PORT=5500))(Security=(my_wallet_directory=/u01/app/oracle/admin/germany/xdb_wallet))(Presentation=HTTP)(Session=RAW))
Services Summary...
Service "germany" has 1 instance(s).
Instance "germany", status READY, has 1 handler(s) for this service...
Service "germanyXDB" has 1 instance(s).
Instance "germany", status READY, has 1 handler(s) for this service...
Service "germany_DGB" has 1 instance(s).
Instance "germany", status READY, has 1 handler(s) for this service...
The command completed successfully
As you can see right now it is not registere so we need to do this by rebooting the database and listener.
SYS@ gclone1>shu immediate
startup
!lsnrctl stop
!lsnrctl start
Database closed.
Database dismounted.
ORACLE instance shut down.
SYS@ gclone1>
ORACLE instance started.
Total System Global Area 536870912 bytes
Fixed Size 2926472 bytes
Variable Size 268437624 bytes
Database Buffers 260046848 bytes
Redo Buffers 5459968 bytes
Database mounted.
Database opened.
SYS@ gclone1>!lsnrctl status
LSNRCTL for Linux: Version 12.1.0.2.0 - Production on 13-APR-2020 12:20:28
Copyright (c) 1991, 2014, Oracle. All rights reserved.
Connecting to (DESCRIPTION=(ADDRESS=(PROTOCOL=TCP)(HOST=ggsource.localdomain)(PORT=1521)))
STATUS of the LISTENER
------------------------
Alias LISTENER
Version TNSLSNR for Linux: Version 12.1.0.2.0 - Production
Start Date 13-APR-2020 12:18:53
Uptime 0 days 0 hr. 1 min. 34 sec
Trace Level off
Security ON: Local OS Authentication
SNMP OFF
Listener Parameter File /u01/app/oracle/product/12.1.0/dbhome_1/network/admin/listener.ora
Listener Log File /u01/app/oracle/diag/tnslsnr/ggsource/listener/alert/log.xml
Listening Endpoints Summary...
(DESCRIPTION=(ADDRESS=(PROTOCOL=tcp)(HOST=ggsource.localdomain)(PORT=1521)))
(DESCRIPTION=(ADDRESS=(PROTOCOL=ipc)(KEY=EXTPROC1521)))
(DESCRIPTION=(ADDRESS=(PROTOCOL=tcps)(HOST=ggsource.localdomain)(PORT=5502))(Security=(my_wallet_directory=/u01/app/oracle/admin/gclone1/xdb_wallet))(Presentation=HTTP)(Session=RAW))
(DESCRIPTION=(ADDRESS=(PROTOCOL=tcps)(HOST=ggsource.localdomain)(PORT=5500))(Security=(my_wallet_directory=/u01/app/oracle/admin/germany/xdb_wallet))(Presentation=HTTP)(Session=RAW))
Services Summary...
Service "gclone1" has 1 instance(s).
Instance "gclone1", status READY, has 1 handler(s) for this service...
Service "gclone1XDB" has 1 instance(s).
Instance "gclone1", status READY, has 1 handler(s) for this service...
Service "germany" has 1 instance(s).
Instance "germany", status READY, has 1 handler(s) for this service...
Service "germanyXDB" has 1 instance(s).
Instance "germany", status READY, has 1 handler(s) for this service...
Service "germany_DGB" has 1 instance(s).
Instance "germany", status READY, has 1 handler(s) for this service...
The command completed successfully

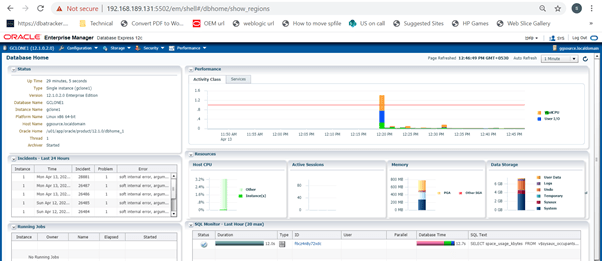

Now you can use this URL to access EM DB express console for gclone1
https://192.168.189.131:5502/em
Germany database setting
Now we have one more database on this server. All above steps will be same except that you need to choose a different port for https. In this case I have used port 5500. After changes settings will look like this
SYS@ germany>show parameter dispatchers
NAME TYPE VALUE
------------------------------------ ----------- ------------------------------
dispatchers string (PROTOCOL=TCP) (SERVICE=german
yXDB)
max_dispatchers integer
SYS@ germany>select dbms_xdb_config.gethttpsport () from dual;
DBMS_XDB_CONFIG.GETHTTPSPORT()
------------------------------
5500
[oracle@ggsource admin]$ lsnrctl status
LSNRCTL for Linux: Version 12.1.0.2.0 - Production on 13-APR-2020 12:43:11
Copyright (c) 1991, 2014, Oracle. All rights reserved.
Connecting to (DESCRIPTION=(ADDRESS=(PROTOCOL=TCP)(HOST=ggsource.localdomain)(PORT=1521)))
STATUS of the LISTENER
------------------------
Alias LISTENER
Version TNSLSNR for Linux: Version 12.1.0.2.0 - Production
Start Date 13-APR-2020 12:18:53
Uptime 0 days 0 hr. 24 min. 17 sec
Trace Level off
Security ON: Local OS Authentication
SNMP OFF
Listener Parameter File /u01/app/oracle/product/12.1.0/dbhome_1/network/admin/listener.ora
Listener Log File /u01/app/oracle/diag/tnslsnr/ggsource/listener/alert/log.xml
Listening Endpoints Summary...
(DESCRIPTION=(ADDRESS=(PROTOCOL=tcp)(HOST=ggsource.localdomain)(PORT=1521)))
(DESCRIPTION=(ADDRESS=(PROTOCOL=ipc)(KEY=EXTPROC1521)))
(DESCRIPTION=(ADDRESS=(PROTOCOL=tcps)(HOST=ggsource.localdomain)(PORT=5502))(Security=(my_wallet_directory=/u01/app/oracle/admin/gclone1/xdb_wallet))(Presentation=HTTP)(Session=RAW))
(DESCRIPTION=(ADDRESS=(PROTOCOL=tcps)(HOST=ggsource.localdomain)(PORT=5500))(Security=(my_wallet_directory=/u01/app/oracle/admin/germany/xdb_wallet))(Presentation=HTTP)(Session=RAW))
Services Summary...
Service "gclone1" has 1 instance(s).
Instance "gclone1", status READY, has 1 handler(s) for this service...
Service "gclone1XDB" has 1 instance(s).
Instance "gclone1", status READY, has 1 handler(s) for this service...
Service "germany" has 1 instance(s).
Instance "germany", status READY, has 1 handler(s) for this service...
Service "germanyXDB" has 1 instance(s).
Instance "germany", status READY, has 1 handler(s) for this service...
Service "germany_DGB" has 1 instance(s).
Instance "germany", status READY, has 1 handler(s) for this service...
The command completed successfully

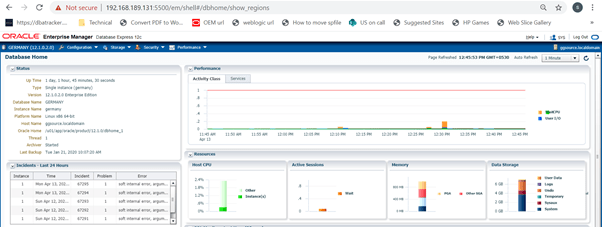

We will use this url – https://192.168.189.131:5500/em/
