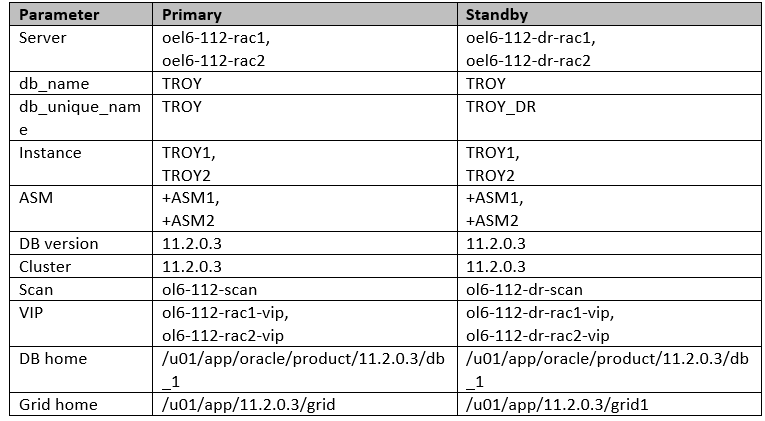

Prerequisite

Make sure you complete all steps as mentioned in this document

https://dbatracker.com/2020/05/28/setup-2-node-rac-dataguard-for-2-node-rac-primary/

once it is done you will have 2 node RAC at both primary and standbu site up and running and in sync.

Tnsnames.ora

make sure these tns entries exists on all 4 nodes (2 primary and 2 standby) DATABASE oracle home (not GRID oracle home).it is also mentioned in above post for setting up dataguard

TROY =
  (DESCRIPTION =
    (ADDRESS = (PROTOCOL = TCP)(HOST = ol6-112-scan)(PORT = 1521))
    (CONNECT_DATA =
      (SERVER = DEDICATED)
      (SERVICE_NAME = TROY.localdomain)
    )
  )




TROY_DR =
  (DESCRIPTION =
    (ADDRESS_LIST =
      (ADDRESS = (PROTOCOL = TCP)(HOST = ol6-112-dr-scan)(PORT = 1521))
    )
    (CONNECT_DATA =
      (SERVICE_NAME = TROY_DR.localdomain)
    )
  )




#####this one for transfer of archives from standby to PROD - - used in standby dest_2


TROY1_VIP =
  (DESCRIPTION =
    (ADDRESS_LIST =
      (ADDRESS = (PROTOCOL = TCP)(HOST = ol6-112-rac1-vip)(PORT = 1521))
    )
    (CONNECT_DATA =
      (SERVICE_NAME = TROY.localdomain)
    )
  )




#####this one for transfer of archives from prod to standby - used in prod dest_2


TROY1_DR_VIP =
  (DESCRIPTION =
    (ADDRESS_LIST =
      (ADDRESS = (PROTOCOL = TCP)(HOST = ol6-112-dr-rac1-vip)(PORT = 1521))
    )
    (CONNECT_DATA =
      (SERVICE_NAME = TROY_DR.localdomain)
    )
  )





####these are in case PROD node 1 or DR node 1 is down
#### we will use them to transfer archivelogs

######from standby to PROD


TROY2_VIP =
  (DESCRIPTION =
    (ADDRESS_LIST =
      (ADDRESS = (PROTOCOL = TCP)(HOST = ol6-112-rac2-vip)(PORT = 1521))
    )
    (CONNECT_DATA =
      (SERVICE_NAME = TROY.localdomain)
    )
  )




#####from prod to standby


TROY2_DR_VIP =
  (DESCRIPTION =
    (ADDRESS_LIST =
      (ADDRESS = (PROTOCOL = TCP)(HOST = ol6-112-dr-rac2-vip)(PORT = 1521))
    )
    (CONNECT_DATA =
      (SERVICE_NAME = TROY_DR.localdomain)
    )
  )



######## this one is for static entry for duplicate

TROY_DUP =
  (DESCRIPTION =
    (ADDRESS_LIST =
      (ADDRESS = (PROTOCOL = TCP)(HOST = ol6-112-dr-rac1)(PORT = 1525))
    )
    (CONNECT_DATA =
      (SERVICE_NAME = TROY_DUP)
    )
  )

add static entry in GRID_HOME listener.ora

oel6-112-rac1

SID_LIST_LISTENER =
 (SID_LIST =
  (SID_DESC =
   (GLOBAL_DBNAME = TROY_DGMGRL.localdomain)
   (ORACLE_HOME = /u01/app/oracle/product/11.2.0.3/db_1)
   (SID_NAME = TROY1)
  )
 )

oel6-112-rac2

SID_LIST_LISTENER =
 (SID_LIST =
  (SID_DESC =
   (GLOBAL_DBNAME = TROY_DGMGRL.localdomain)
   (ORACLE_HOME = /u01/app/oracle/product/11.2.0.3/db_1)
   (SID_NAME = TROY2)
  )
 )

oel6-112-dr-rac1

SID_LIST_LISTENER =
 (SID_LIST =
  (SID_DESC =
   (GLOBAL_DBNAME = TROY_DR_DGMGRL.localdomain)
   (ORACLE_HOME = /u01/app/oracle/product/11.2.0.3/db_1)
   (SID_NAME = TROY1)
  )
 )

oel6-112-dr-rac2

SID_LIST_LISTENER =
 (SID_LIST =
  (SID_DESC =
   (GLOBAL_DBNAME = TROY_DR_DGMGRL.localdomain)
   (ORACLE_HOME = /u01/app/oracle/product/11.2.0.3/db_1)
   (SID_NAME = TROY2)
  )
 )

reboot the listener and verify that now lsitener is aware of these %_DGMGRL services on each node

[oracle@ol6-112-rac1 admin]$ lsnrctl reload

LSNRCTL for Linux: Version 11.2.0.3.0 - Production on 29-MAY-2020 16:44:09

Copyright (c) 1991, 2011, Oracle.  All rights reserved.

Connecting to (DESCRIPTION=(ADDRESS=(PROTOCOL=IPC)(KEY=LISTENER)))
The command completed successfully
[oracle@ol6-112-rac1 admin]$ lsnrctl status

LSNRCTL for Linux: Version 11.2.0.3.0 - Production on 30-MAY-2020 00:21:34

Copyright (c) 1991, 2011, Oracle.  All rights reserved.

Connecting to (DESCRIPTION=(ADDRESS=(PROTOCOL=IPC)(KEY=LISTENER)))
STATUS of the LISTENER
------------------------
Alias                     LISTENER
Version                   TNSLSNR for Linux: Version 11.2.0.3.0 - Production
Start Date                29-MAY-2020 15:48:49
Uptime                    0 days 8 hr. 32 min. 45 sec
Trace Level               off
Security                  ON: Local OS Authentication
SNMP                      OFF
Listener Parameter File   /u01/app/11.2.0.3/grid/network/admin/listener.ora
Listener Log File         /u01/app/oracle/diag/tnslsnr/ol6-112-rac1/listener/alert/log.xml
Listening Endpoints Summary...
  (DESCRIPTION=(ADDRESS=(PROTOCOL=ipc)(KEY=LISTENER)))
  (DESCRIPTION=(ADDRESS=(PROTOCOL=tcp)(HOST=192.168.43.101)(PORT=1521)))
  (DESCRIPTION=(ADDRESS=(PROTOCOL=tcp)(HOST=192.168.43.103)(PORT=1521)))
Services Summary...
Service "+ASM" has 1 instance(s).
  Instance "+ASM1", status READY, has 1 handler(s) for this service...
Service "TROY.localdomain" has 1 instance(s).
  Instance "TROY1", status READY, has 1 handler(s) for this service...
Service "TROY_DGB.localdomain" has 1 instance(s).
  Instance "TROY1", status READY, has 1 handler(s) for this service...
Service "TROY_DGMGRL.localdomain" has 1 instance(s).
  Instance "TROY1", status UNKNOWN, has 1 handler(s) for this service...
The command completed successfully
[oracle@ol6-112-rac2 admin]$ lsnrctl reload

LSNRCTL for Linux: Version 11.2.0.3.0 - Production on 29-MAY-2020 16:47:49

Copyright (c) 1991, 2011, Oracle.  All rights reserved.

Connecting to (DESCRIPTION=(ADDRESS=(PROTOCOL=IPC)(KEY=LISTENER)))
The command completed successfully
[oracle@ol6-112-rac2 admin]$ lsnrctl status

LSNRCTL for Linux: Version 11.2.0.3.0 - Production on 29-MAY-2020 16:50:11

Copyright (c) 1991, 2011, Oracle.  All rights reserved.

Connecting to (DESCRIPTION=(ADDRESS=(PROTOCOL=IPC)(KEY=LISTENER)))
STATUS of the LISTENER
------------------------
Alias                     LISTENER
Version                   TNSLSNR for Linux: Version 11.2.0.3.0 - Production
Start Date                29-MAY-2020 15:57:20
Uptime                    0 days 0 hr. 52 min. 53 sec
Trace Level               off
Security                  ON: Local OS Authentication
SNMP                      OFF
Listener Parameter File   /u01/app/11.2.0.3/grid/network/admin/listener.ora
Listener Log File         /u01/app/oracle/diag/tnslsnr/ol6-112-rac2/listener/alert/log.xml
Listening Endpoints Summary...
  (DESCRIPTION=(ADDRESS=(PROTOCOL=ipc)(KEY=LISTENER)))
  (DESCRIPTION=(ADDRESS=(PROTOCOL=tcp)(HOST=192.168.43.102)(PORT=1521)))
  (DESCRIPTION=(ADDRESS=(PROTOCOL=tcp)(HOST=192.168.43.104)(PORT=1521)))
Services Summary...
Service "+ASM" has 1 instance(s).
  Instance "+ASM2", status READY, has 1 handler(s) for this service...
Service "TROY.localdomain" has 1 instance(s).
  Instance "TROY2", status READY, has 1 handler(s) for this service...
Service "TROYXDB.localdomain" has 1 instance(s).
  Instance "TROY2", status READY, has 1 handler(s) for this service...
Service "TROY_DGMGRL" has 1 instance(s).
  Instance "TROY2", status UNKNOWN, has 1 handler(s) for this service...
The command completed successfully
[oracle@ol6-112-dr-rac1 admin]$ lsnrctl status

LSNRCTL for Linux: Version 11.2.0.3.0 - Production on 30-MAY-2020 00:22:41

Copyright (c) 1991, 2011, Oracle.  All rights reserved.

Connecting to (DESCRIPTION=(ADDRESS=(PROTOCOL=IPC)(KEY=LISTENER)))
STATUS of the LISTENER
------------------------
Alias                     LISTENER
Version                   TNSLSNR for Linux: Version 11.2.0.3.0 - Production
Start Date                29-MAY-2020 15:50:20
Uptime                    0 days 8 hr. 32 min. 23 sec
Trace Level               off
Security                  ON: Local OS Authentication
SNMP                      OFF
Listener Parameter File   /u01/app/11.2.0.3/grid1/network/admin/listener.ora
Listener Log File         /u01/app/oracle/diag/tnslsnr/ol6-112-dr-rac1/listener/alert/log.xml
Listening Endpoints Summary...
  (DESCRIPTION=(ADDRESS=(PROTOCOL=ipc)(KEY=LISTENER)))
  (DESCRIPTION=(ADDRESS=(PROTOCOL=tcp)(HOST=192.168.43.131)(PORT=1521)))
  (DESCRIPTION=(ADDRESS=(PROTOCOL=tcp)(HOST=192.168.43.133)(PORT=1521)))
Services Summary...
Service "+ASM" has 1 instance(s).
  Instance "+ASM1", status READY, has 1 handler(s) for this service...
Service "TROYXDB.localdomain" has 1 instance(s).
  Instance "TROY1", status READY, has 1 handler(s) for this service...
Service "TROY_DR.localdomain" has 1 instance(s).
  Instance "TROY1", status READY, has 1 handler(s) for this service...
Service "TROY_DR_DGB.localdomain" has 1 instance(s).
  Instance "TROY1", status READY, has 1 handler(s) for this service...
Service "TROY_DR_DGMGRL.localdomain" has 1 instance(s).
  Instance "TROY1", status UNKNOWN, has 1 handler(s) for this service...
The command completed successfully
[oracle@ol6-112-dr-rac2 admin]$ lsnrctl status

LSNRCTL for Linux: Version 11.2.0.3.0 - Production on 30-MAY-2020 00:23:17

Copyright (c) 1991, 2011, Oracle.  All rights reserved.

Connecting to (ADDRESS=(PROTOCOL=tcp)(HOST=)(PORT=1521))
STATUS of the LISTENER
------------------------
Alias                     LISTENER
Version                   TNSLSNR for Linux: Version 11.2.0.3.0 - Production
Start Date                29-MAY-2020 16:02:16
Uptime                    0 days 8 hr. 21 min. 3 sec
Trace Level               off
Security                  ON: Local OS Authentication
SNMP                      OFF
Listener Parameter File   /u01/app/11.2.0.3/grid1/network/admin/listener.ora
Listener Log File         /u01/app/oracle/diag/tnslsnr/ol6-112-dr-rac2/listener/alert/log.xml
Listening Endpoints Summary...
  (DESCRIPTION=(ADDRESS=(PROTOCOL=ipc)(KEY=LISTENER)))
  (DESCRIPTION=(ADDRESS=(PROTOCOL=tcp)(HOST=192.168.43.132)(PORT=1521)))
  (DESCRIPTION=(ADDRESS=(PROTOCOL=tcp)(HOST=192.168.43.134)(PORT=1521)))
Services Summary...
Service "+ASM" has 1 instance(s).
  Instance "+ASM2", status READY, has 1 handler(s) for this service...
Service "TROYXDB.localdomain" has 1 instance(s).
  Instance "TROY2", status READY, has 1 handler(s) for this service...
Service "TROY_DR.localdomain" has 1 instance(s).
  Instance "TROY2", status READY, has 1 handler(s) for this service...
Service "TROY_DR_DGB.localdomain" has 1 instance(s).
  Instance "TROY2", status READY, has 1 handler(s) for this service...
Service "TROY_DR_DGMGRL.localdomain" has 1 instance(s).
  Instance "TROY2", status UNKNOWN, has 1 handler(s) for this service...
The command completed successfully
[oracle@ol6-112-dr-rac2 admin]$

Enable DG Broker Parameters on primary node 1- ol6-112-rac1

ASMCMD> mkdir +DATA/TROY/DATAGUARDCONFIG
ASMCMD> pwd
+DATA/TROY
ASMCMD> ls
ARCHIVELOG/
CONTROLFILE/
DATAFILE/
DATAGUARDCONFIG/
ONLINELOG/
TEMPFILE/
spfiletroy.ora
ASMCMD>
TROY1@ol6-112-rac1 > ALTER SYSTEM SET DG_BROKER_CONFIG_FILE1='+DATA/TROY/DATAGUARDCONFIG/dgbrk_config01.ora' SCOPE=BOTH sid='*';

System altered.

TROY1@ol6-112-rac1 > ALTER SYSTEM SET DG_BROKER_CONFIG_FILE2='+DATA/TROY/DATAGUARDCONFIG/dgbrk_config02.ora' SCOPE=BOTH sid='*';

System altered.

TROY1@ol6-112-rac1 > ALTER SYSTEM SET dg_broker_start=true scope=both sid='*';

System altered.

Enable DG Broker Parameters on standby node 1 – ol6-112-dr-rac1

ASMCMD> ASMCMD> cd +DATA/TROY_DR/
pwd
ASMCMD> +DATA/TROY_DR
ASMCMD> mkdir +DATA/TROY_DR/DATAGUARDCONFIG
ASMCMD> ls
ARCHIVELOG/
DATAGUARDCONFIG/
PARAMETERFILE/
TEMPFILE/
TROY1@ol6-112-dr-rac1 > ALTER SYSTEM SET DG_BROKER_CONFIG_FILE1='+DATA/TROY_DR/DATAGUARDCONFIG/dgb_config01.ora' SCOPE=BOTH sid='*';

System altered.

TROY1@ol6-112-dr-rac1 > ALTER SYSTEM SET DG_BROKER_CONFIG_FILE2='+DATA/TROY_DR/DATAGUARDCONFIG/dgb_config02.ora' SCOPE=BOTH sid='*';

System altered.

TROY1@ol6-112-dr-rac1 > ALTER SYSTEM SET dg_broker_start=true scope=both sid='*';

System altered.

Create configuration for dataguard broker using dgmgrl

[oracle@ol6-112-rac1 ~]$ dgmgrl
DGMGRL for Linux: Version 11.2.0.3.0 - 64bit Production

Copyright (c) 2000, 2009, Oracle. All rights reserved.

Welcome to DGMGRL, type "help" for information.
DGMGRL> connect sys/oracle@TROY
Connected.
DGMGRL> show configuration;
ORA-16532: Data Guard broker configuration does not exist

Configuration details cannot be determined by DGMGRL
DGMGRL> create configuration 'broker_config' as primary database is 'TROY' connect identifier is TROY;
Configuration "broker_config" created with primary database "TROY"
DGMGRL> show configuration;

Configuration - broker_config

  Protection Mode: MaxPerformance
  Databases:
    TROY - Primary database

Fast-Start Failover: DISABLED

Configuration Status:
DISABLED

DGMGRL> ADD DATABASE 'TROY_DR' AS CONNECT IDENTIFIER IS TROY_DR;
Database "TROY_DR" added
DGMGRL> show configuration;

Configuration - broker_config

  Protection Mode: MaxPerformance
  Databases:
    TROY    - Primary database
    TROY_DR - Physical standby database

Fast-Start Failover: DISABLED

Configuration Status:
DISABLED

DGMGRL> enable configuration;
Enabled.

DGMGRL> show configuration;

Configuration - broker_config

  Protection Mode: MaxPerformance
  Databases:
    TROY    - Primary database
    TROY_DR - Physical standby database

Fast-Start Failover: DISABLED

Configuration Status:
SUCCESS
DGMGRL> show database verbose 'TROY';

Database - TROY

  Role:            PRIMARY
  Intended State:  TRANSPORT-ON
  Instance(s):
    TROY1
    TROY2

  Properties:
    DGConnectIdentifier             = 'troy'
    ObserverConnectIdentifier       = ''
    LogXptMode                      = 'ASYNC'
    DelayMins                       = '0'
    Binding                         = 'optional'
    MaxFailure                      = '0'
    MaxConnections                  = '1'
    ReopenSecs                      = '300'
    NetTimeout                      = '30'
    RedoCompression                 = 'DISABLE'
    LogShipping                     = 'ON'
    PreferredApplyInstance          = ''
    ApplyInstanceTimeout            = '0'
    ApplyParallel                   = 'AUTO'
    StandbyFileManagement           = 'AUTO'
    ArchiveLagTarget                = '0'
    LogArchiveMaxProcesses          = '30'
    LogArchiveMinSucceedDest        = '1'
    DbFileNameConvert               = ''
    LogFileNameConvert              = ''
    FastStartFailoverTarget         = ''
    InconsistentProperties          = '(monitor)'
    InconsistentLogXptProps         = '(monitor)'
    SendQEntries                    = '(monitor)'
    LogXptStatus                    = '(monitor)'
    RecvQEntries                    = '(monitor)'
    SidName(*)
    StaticConnectIdentifier(*)
    StandbyArchiveLocation(*)
    AlternateLocation(*)
    LogArchiveTrace(*)
    LogArchiveFormat(*)
    TopWaitEvents(*)
    (*) - Please check specific instance for the property value

Database Status:
SUCCESS
DGMGRL> show database verbose 'TROY_DR';

Database - TROY_DR

  Role:            PHYSICAL STANDBY
  Intended State:  APPLY-ON
  Transport Lag:   0 seconds
  Apply Lag:       0 seconds
  Real Time Query: ON
  Instance(s):
    TROY1 (apply instance)
    TROY2

  Properties:
    DGConnectIdentifier             = 'troy_dr'
    ObserverConnectIdentifier       = ''
    LogXptMode                      = 'ASYNC'
    DelayMins                       = '0'
    Binding                         = 'OPTIONAL'
    MaxFailure                      = '0'
    MaxConnections                  = '1'
    ReopenSecs                      = '300'
    NetTimeout                      = '30'
    RedoCompression                 = 'DISABLE'
    LogShipping                     = 'ON'
    PreferredApplyInstance          = ''
    ApplyInstanceTimeout            = '0'
    ApplyParallel                   = 'AUTO'
    StandbyFileManagement           = 'AUTO'
    ArchiveLagTarget                = '0'
    LogArchiveMaxProcesses          = '30'
    LogArchiveMinSucceedDest        = '1'
    DbFileNameConvert               = ''
    LogFileNameConvert              = ''
    FastStartFailoverTarget         = ''
    InconsistentProperties          = '(monitor)'
    InconsistentLogXptProps         = '(monitor)'
    SendQEntries                    = '(monitor)'
    LogXptStatus                    = '(monitor)'
    RecvQEntries                    = '(monitor)'
    SidName(*)
    StaticConnectIdentifier(*)
    StandbyArchiveLocation(*)
    AlternateLocation(*)
    LogArchiveTrace(*)
    LogArchiveFormat(*)
    TopWaitEvents(*)
    (*) - Please check specific instance for the property value

Database Status:
SUCCESS
