Prerequisite
Make sure you are able to connect to cloud VM using putty. Follow this post to setup the env
https://dbatracker.com/2020/06/01/login-to-cloud-vm-directly-using-ppk-private-key-file/
After making above changes do this extra step and enable x11 forwarding

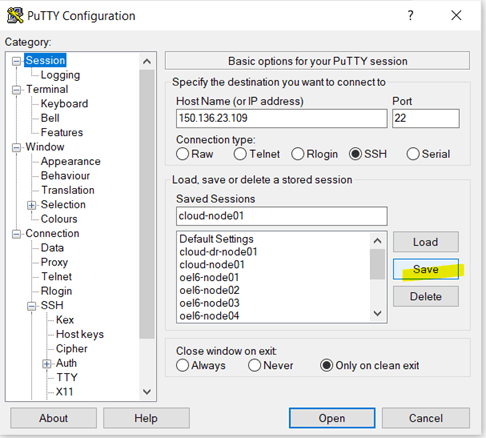

Do not open the session instead go to session and save this change.
Now prepare your local machine
Install xming on your local machine

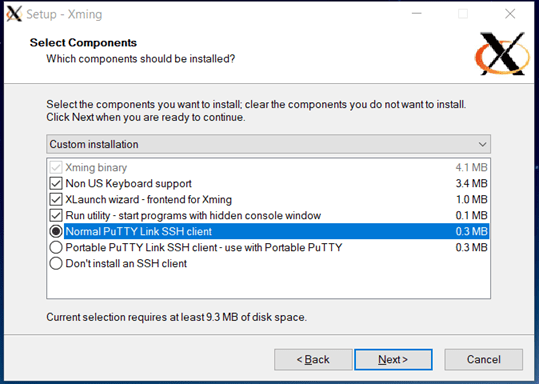

select Normal putty link SSH client option

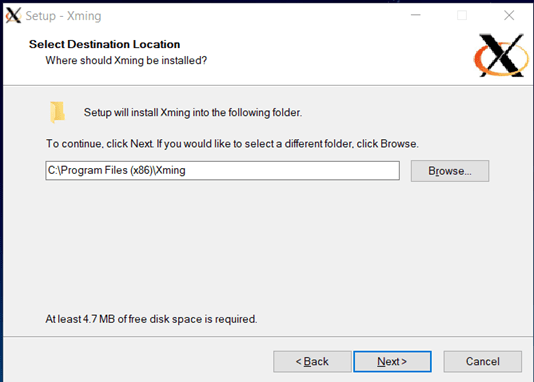

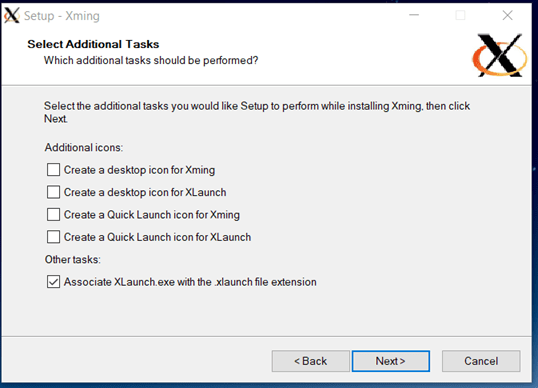

check mark xlaunch option and click next to finsh the install
once install completed run xlaunch

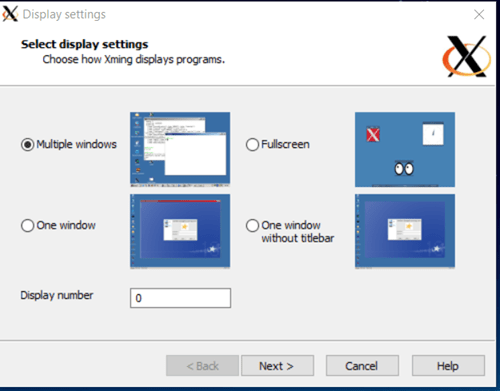

select multiple windows option
select start no client

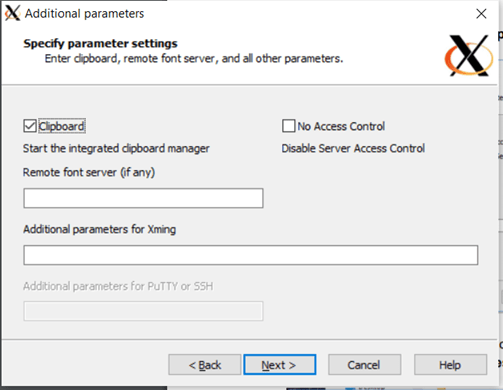

continue with these settings
click finish
Login to your cloud vm machine and switch user to root and make these changes
[opc@cloud-node01 ~]$ sudo su -
Last login: Mon Jun 1 10:32:20 GMT 2020 on pts/0
[root@cloud-node01 ~]#
Edit /etc/ssh/sshd_config file and uncomment X11UseLocalhost parameter and make it values as “no” and X11Forwarding as yes
[root@cloud-node01 ~]# vi /etc/ssh/sshd_config file
2 files to edit
[root@cloud-node01 ~]# cat /etc/ssh/sshd_config |grep X11UseLocalhost
X11UseLocalhost no
[root@cloud-node01 ~]#
[root@cloud-node01 ~]# cat /etc/ssh/sshd_config |grep X11Forwarding
X11Forwarding yes
# X11Forwarding no
Restart sshd
[root@cloud-node01 ~]# sudo systemctl restart sshdInstall xauth
[root@cloud-node01 ~]# yum -y install xauth
Loaded plugins: langpacks, ulninfo
Package 1:xorg-x11-xauth-1.0.9-1.el7.x86_64 already installed and latest version
Nothing to do
Install xterm
[root@cloud-node01 ~]# yum -y install xterm
Loaded plugins: langpacks, ulninfo
Resolving Dependencies
--> Running transaction check
---> Package xterm.x86_64 0:295-3.el7 will be installed
--> Processing Dependency: libXaw.so.7()(64bit) for package: xterm-295-3.el7.x86_64
--> Running transaction check
---> Package libXaw.x86_64 0:1.0.13-4.el7 will be installed
--> Finished Dependency Resolution
Dependencies Resolved
=============================================================================================================================================================================================
Package Arch Version Repository Size
=============================================================================================================================================================================================
Installing:
xterm x86_64 295-3.el7 ol7_latest 454 k
Installing for dependencies:
libXaw x86_64 1.0.13-4.el7 ol7_latest 191 k
Transaction Summary
=============================================================================================================================================================================================
Install 1 Package (+1 Dependent package)
Total download size: 645 k
Installed size: 1.7 M
Downloading packages:
(1/2): libXaw-1.0.13-4.el7.x86_64.rpm | 191 kB 00:00:00
(2/2): xterm-295-3.el7.x86_64.rpm | 454 kB 00:00:00
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Total 4.9 MB/s | 645 kB 00:00:00
Running transaction check
Running transaction test
Transaction test succeeded
Running transaction
Installing : libXaw-1.0.13-4.el7.x86_64 1/2
Installing : xterm-295-3.el7.x86_64 2/2
Verifying : libXaw-1.0.13-4.el7.x86_64 1/2
Verifying : xterm-295-3.el7.x86_64 2/2
Installed:
xterm.x86_64 0:295-3.el7
Dependency Installed:
libXaw.x86_64 0:1.0.13-4.el7
Complete!
Install xclock
[root@cloud-node01 ~]# yum -y install xclock
Loaded plugins: langpacks, ulninfo
Resolving Dependencies
--> Running transaction check
---> Package xorg-x11-apps.x86_64 0:7.7-7.el7 will be installed
--> Finished Dependency Resolution
Dependencies Resolved
=============================================================================================================================================================================================
Package Arch Version Repository Size
=============================================================================================================================================================================================
Installing:
xorg-x11-apps x86_64 7.7-7.el7 ol7_latest 307 k
Transaction Summary
=============================================================================================================================================================================================
Install 1 Package
Total download size: 307 k
Installed size: 772 k
Downloading packages:
xorg-x11-apps-7.7-7.el7.x86_64.rpm | 307 kB 00:00:00
Running transaction check
Running transaction test
Transaction test succeeded
Running transaction
Installing : xorg-x11-apps-7.7-7.el7.x86_64 1/1
Verifying : xorg-x11-apps-7.7-7.el7.x86_64 1/1
Installed:
xorg-x11-apps.x86_64 0:7.7-7.el7
Complete!
Exit from this session and open a new session
Check the DISPLAY is should show similar kind on value for opc user
[opc@cloud-node01 ~]$ env|grep DISP
DISPLAY=10.0.0.2:10.0
[opc@cloud-node01 ~]$
Make sure xming is running on your local machine. Now Run xclock it will display the clock
[opc@cloud-node01 ~]$ xclock
Warning: Missing charsets in String to FontSet conversion
So our opc user is all set for GUI based applications. Now we need to make some changes so that oracle user is also able to do same.
Do xauth list for opc
[opc@cloud-node01 ~]$ xauth list $DISPLAY
cloud-node01.subnet.vcn.oraclevcn.com:10 MIT-MAGIC-COOKIE-1 35a26244b95e3d35b4e17a6256b722ad
now login as oracle user and set display as below
[opc@cloud-node01 ~]$ sudo su - oracle
Last login: Mon Jun 1 09:56:17 GMT 2020 on pts/5
[oracle@cloud-node01 ~]$ export DISPLAY=cloud-node01.subnet.vcn.oraclevcn.com:10
[oracle@cloud-node01 ~]$
[oracle@cloud-node01 ~]$ env|grep DISP
DISPLAY=cloud-node01.subnet.vcn.oraclevcn.com:10
Now run xauth add
[oracle@cloud-node01 ~]$ xauth add cloud-node01.subnet.vcn.oraclevcn.com:10 MIT-MAGIC-COOKIE-1 35a26244b95e3d35b4e17a6256b722ad
xauth: file /home/oracle/.Xauthority does not exist
it will give you this error but file actually exist
[oracle@cloud-node01 ~]$ ls -ltr /home/oracle/.Xauthority
-rw-------. 1 oracle oinstall 50 Jun 1 14:16 /home/oracle/.Xauthority
rerun this command this error is no more visible
[oracle@cloud-node01 ~]$ xauth add cloud-node01.subnet.vcn.oraclevcn.com:10 MIT-MAGIC-COOKIE-1 35a26244b95e3d35b4e17a6256b722ad
[oracle@cloud-node01 ~]$
Now do xauth list
[oracle@cloud-node01 ~]$ xauth list
cloud-node01.subnet.vcn.oraclevcn.com:10 MIT-MAGIC-COOKIE-1 35a26244b95e3d35b4e17a6256b722ad
run xclock as oracle user
[oracle@cloud-node01 ~]$ xclock
Warning: Missing charsets in String to FontSet conversion
Run dbca
you are now all set !!
