download plugging for oem 13.1

https://www.oracle.com/enterprise-manager/downloads/oem-v131-update-plugins-downloads.html

13.1.1.0.0_oracle.fmw.gg_2000_0.zip

import pluggin

[oracle@oel6-rac01 ogg_oem_plugin_13c]$ $OMS_HOME/bin/emcli login -username=sysman -password=system123
Login successful
[oracle@oel6-rac01 ogg_oem_plugin_13c]$ $OMS_HOME/bin/emcli sync
Synchronized successfully
[oracle@oel6-rac01 ogg_oem_plugin_13c]$ $OMS_HOME/bin/emcli import_update -file=/shared_dir/ogg_oem_plugin_13c/13.1.1.0.0_oracle.fmw.gg_2000_0.zip -omslocal
Processing update: Plug-in - Enterprise Manager for Oracle GoldenGate
Successfully uploaded the update to Enterprise Manager. Use the Self Update Console to manage this update.

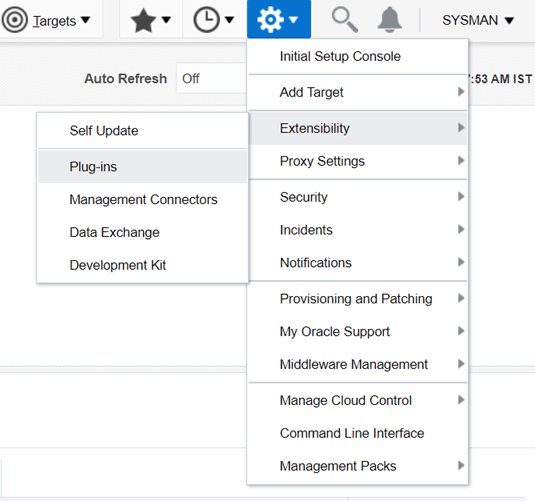

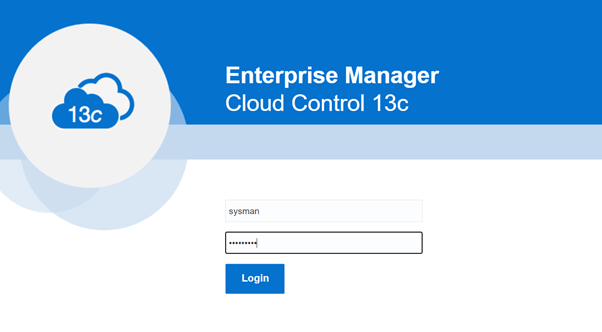

verify from OEM

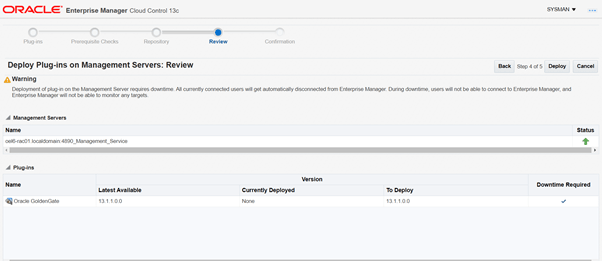

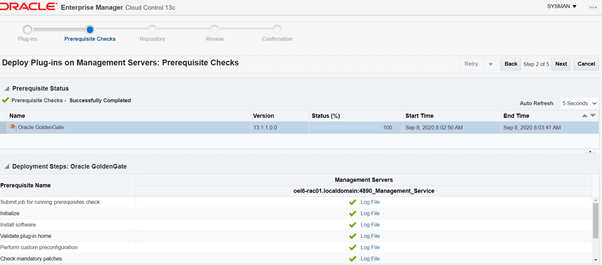

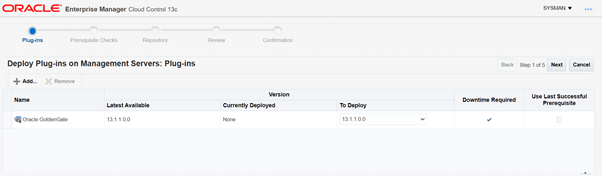

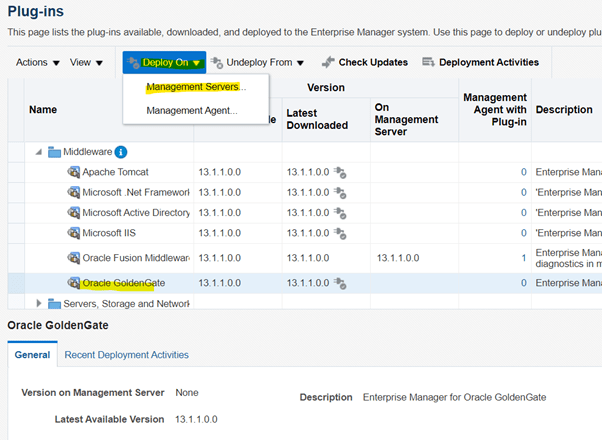

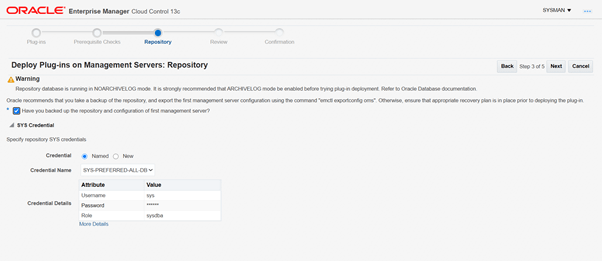

deploy this pluggin on management server

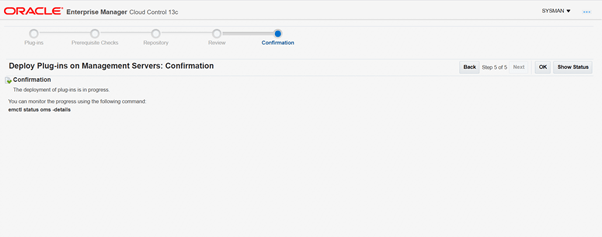

if you check status of oms it will show down and display that pluggin deployment is in progress

[oracle@oel6-rac01 ogg_oem_plugin_13c]$ $OMS_HOME/bin/emctl status oms -details
Oracle Enterprise Manager Cloud Control 13c Release 1
Copyright (c) 1996, 2015 Oracle Corporation. All rights reserved.
Enter Enterprise Manager Root (SYSMAN) Password :
Console Server Host : oel6-rac01.localdomain
HTTP Console Port : 7790
HTTPS Console Port : 7803
HTTP Upload Port : 4890
HTTPS Upload Port : 4904
EM Instance Home : /u01/app/oracle/gc_inst1/em/EMGC_OMS1
OMS Log Directory Location : /u01/app/oracle/gc_inst1/em/EMGC_OMS1/sysman/log
OMS is not configured with SLB or virtual hostname
Agent Upload is locked.
OMS Console is locked.
Active CA ID: 1
Console URL: https://oel6-rac01.localdomain:7803/em
Upload URL: https://oel6-rac01.localdomain:4904/empbs/upload
WLS Domain Information
Domain Name : GCDomain
Admin Server Host : oel6-rac01.localdomain
Admin Server HTTPS Port: 7103
Admin Server is RUNNING
Oracle Management Server Information
Managed Server Instance Name: EMGC_OMS1
Oracle Management Server Instance Host: oel6-rac01.localdomain
WebTier is Down
Oracle Management Server status is down possibly because plug-ins are being deployed or undeployed from it. Use -details option to get more details about the plug-in deployment status.
Plug-in Deployment/Undeployment Status
Destination : Management Server - oel6-rac01.localdomain:4890_Management_Service
Plug-in Name : Oracle GoldenGate
Version : 13.1.1.0.0
ID : oracle.fmw.gg
Content : Plug-in
Action : Deployment
Status : Deploying
Steps Info:

Step Start Time End Time Status

Submit job for deployment 9/8/20 8:06:39 AM IST 9/8/20 8:06:39 AM IST Success
Initialize 9/8/20 8:06:41 AM IST 9/8/20 8:06:49 AM IST Success
Install software 9/8/20 8:06:49 AM IST 9/8/20 8:06:51 AM IST Success
Validate plug-in home 9/8/20 8:06:53 AM IST 9/8/20 8:06:53 AM IST Success
Perform custom preconfiguration 9/8/20 8:06:53 AM IST 9/8/20 8:06:53 AM IST Success
Check mandatory patches 9/8/20 8:06:53 AM IST 9/8/20 8:06:53 AM IST Success
Generate metadata SQL 9/8/20 8:06:53 AM IST 9/8/20 8:06:53 AM IST Success
Preconfigure Management Repository 9/8/20 8:06:53 AM IST 9/8/20 8:06:53 AM IST Success
Preregister DLF 9/8/20 8:06:53 AM IST 9/8/20 8:06:53 AM IST Success
Stop management server 9/8/20 8:06:54 AM IST N/A Running

BI Publisher Server Information
BI Publisher Managed Server Name: BIP
BI Publisher Server is Down
BI Publisher HTTP Managed Server Port : 9701
BI Publisher HTTPS Managed Server Port : 9804
BI Publisher HTTP OHS Port : 9751
BI Publisher HTTPS OHS Port : 9852
BI Publisher is locked.
BI Publisher Server named 'BIP' is configured to run at URL: https://oel6-rac01.localdomain:9852/xmlpserver
BI Publisher Server Logs: /u01/app/oracle/gc_inst1/user_projects/domains/GCDomain/servers/BIP/logs/
BI Publisher Log : /u01/app/oracle/gc_inst1/user_projects/domains/GCDomain/servers/BIP/logs/bipublisher/bipublisher.log

Once successfully deployed it will show oms is up

[oracle@oel6-rac01 ogg_oem_plugin_13c]$ $OMS_HOME/bin/emctl status oms -details
Oracle Enterprise Manager Cloud Control 13c Release 1
Copyright (c) 1996, 2015 Oracle Corporation. All rights reserved.
Enter Enterprise Manager Root (SYSMAN) Password :
Console Server Host : oel6-rac01.localdomain
HTTP Console Port : 7790
HTTPS Console Port : 7803
HTTP Upload Port : 4890
HTTPS Upload Port : 4904
EM Instance Home : /u01/app/oracle/gc_inst1/em/EMGC_OMS1
OMS Log Directory Location : /u01/app/oracle/gc_inst1/em/EMGC_OMS1/sysman/log
OMS is not configured with SLB or virtual hostname
Agent Upload is locked.
OMS Console is locked.
Active CA ID: 1
Console URL: https://oel6-rac01.localdomain:7803/em
Upload URL: https://oel6-rac01.localdomain:4904/empbs/upload
WLS Domain Information
Domain Name : GCDomain
Admin Server Host : oel6-rac01.localdomain
Admin Server HTTPS Port: 7103
Admin Server is RUNNING
Oracle Management Server Information
Managed Server Instance Name: EMGC_OMS1
Oracle Management Server Instance Host: oel6-rac01.localdomain
WebTier is Up
Oracle Management Server is Up
JVMD Engine is Up
BI Publisher Server Information
BI Publisher Managed Server Name: BIP
BI Publisher Server is Up
BI Publisher HTTP Managed Server Port : 9701
BI Publisher HTTPS Managed Server Port : 9804
BI Publisher HTTP OHS Port : 9751
BI Publisher HTTPS OHS Port : 9852
BI Publisher is locked.
BI Publisher Server named 'BIP' running at URL: https://oel6-rac01.localdomain:9852/xmlpserver
BI Publisher Server Logs: /u01/app/oracle/gc_inst1/user_projects/domains/GCDomain/servers/BIP/logs/
BI Publisher Log : /u01/app/oracle/gc_inst1/user_projects/domains/GCDomain/servers/BIP/logs/bipublisher/bipublisher.log
[oracle@oel6-rac01 ogg_oem_plugin_13c]$

Check status of pluggin

[oracle@oel6-rac01 ogg_oem_plugin_13c]$ $OMS_HOME/bin/emcli login -username=sysman -password=system123
Login successful
[oracle@oel6-rac01 ogg_oem_plugin_13c]$ $OMS_HOME/bin/emcli sync
Synchronized successfully
[oracle@oel6-rac01 ogg_oem_plugin_13c]$ $OMS_HOME/bin/emcli get_plugin_deployment_status -plugin_id=oracle.fmw.gg -omslocal
Displaying status for the latest deployment activity(deployment ID 7)
Plug-in Deployment/Undeployment Status
Destination : Management Server - oel6-rac01.localdomain:4890_Management_Service
Plug-in Name : Oracle GoldenGate
Version : 13.1.1.0.0
ID : oracle.fmw.gg
Content : Plug-in
Action : Deployment
Status : Success
Steps Info:

Step Start Time End Time Status

Submit job for deployment 9/8/20 8:06:39 AM IST 9/8/20 8:06:39 AM IST Success
Initialize 9/8/20 8:06:41 AM IST 9/8/20 8:06:49 AM IST Success
Install software 9/8/20 8:06:49 AM IST 9/8/20 8:06:51 AM IST Success
Validate plug-in home 9/8/20 8:06:53 AM IST 9/8/20 8:06:53 AM IST Success
Perform custom preconfiguration 9/8/20 8:06:53 AM IST 9/8/20 8:06:53 AM IST Success
Check mandatory patches 9/8/20 8:06:53 AM IST 9/8/20 8:06:53 AM IST Success
Generate metadata SQL 9/8/20 8:06:53 AM IST 9/8/20 8:06:53 AM IST Success
Preconfigure Management Repository 9/8/20 8:06:53 AM IST 9/8/20 8:06:53 AM IST Success
Preregister DLF 9/8/20 8:06:53 AM IST 9/8/20 8:06:53 AM IST Success
Stop management server 9/8/20 8:06:54 AM IST 9/8/20 8:09:30 AM IST Success
Configure Management Repository 9/8/20 8:09:30 AM IST 9/8/20 8:13:27 AM IST Success
Register DLF 9/8/20 8:09:30 AM IST 9/8/20 8:12:36 AM IST Success
Configure middle tier 9/8/20 8:09:31 AM IST 9/8/20 8:14:44 AM IST Success
OPSS jazn policy migration 9/8/20 8:14:45 AM IST 9/8/20 8:15:21 AM IST Success
Register metadata 9/8/20 8:15:22 AM IST 9/8/20 8:15:27 AM IST Success
Perform custom postconfiguration 9/8/20 8:15:27 AM IST 9/8/20 8:15:27 AM IST Success
Update inventory 9/8/20 8:15:27 AM IST 9/8/20 8:15:29 AM IST Success
Start management server 9/8/20 8:15:29 AM IST 9/8/20 8:24:06 AM IST Success

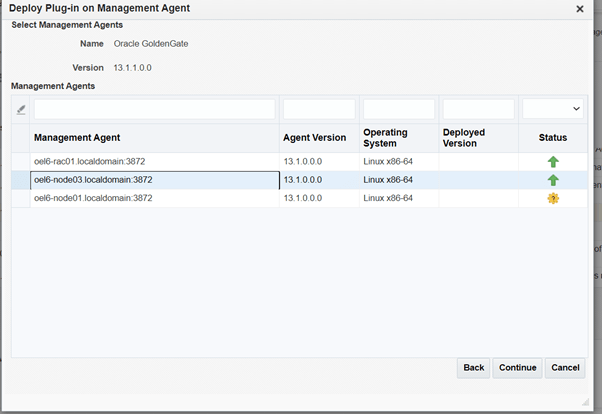

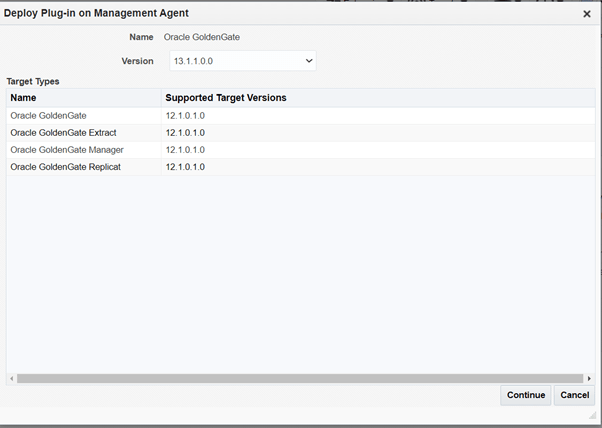

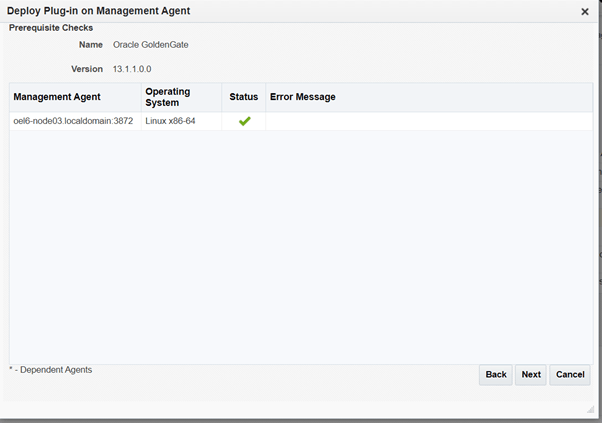

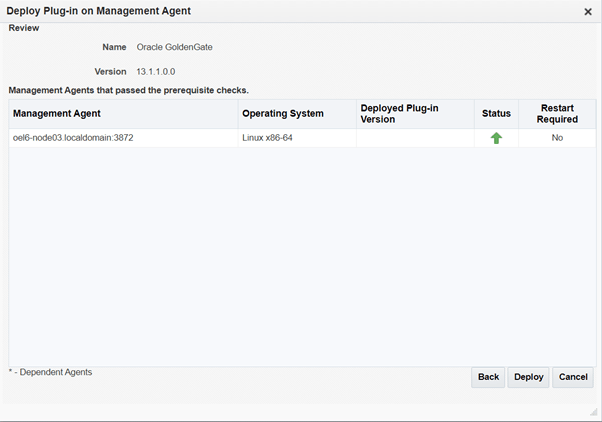

Deploy the Plug-in to Management Agent

these screen shots are for oel6-node03 agent. similary we have done pluggin deploymnet on oel6-rac01 node as well.

From oms host check the status of job. Above screen shot is for oel6-node03 agent. similary we have done pluggin deploymnet on oel6-rac01 node as well. Below o/p is for oel6-rac01.

[oracle@oel6-rac01 ~]$ $OMS_HOME/bin/emcli login -username=sysman -password=system123
Login successful
[oracle@oel6-rac01 ~]$ $OMS_HOME/bin/emcli sync
Synchronized successfully
[oracle@oel6-rac01 ~]$ $OMS_HOME/bin/emcli get_plugin_deployment_status
Displaying status for the latest deployment activity(deployment ID 9)
Plug-in Deployment/Undeployment Status
Destination : Management Agent - oel6-node03.localdomain:3872
Plug-in Name : Oracle GoldenGate
Version : 13.1.1.0.0
ID : oracle.fmw.gg
Content : Plug-in
Action : Deployment
Status : Deploying
Steps Info:

Step Start Time End Time Status

Submit job for deployment 9/8/20 10:25:52 AM IST 9/8/20 10:25:52 AM IST Success

read next two articles in this series

https://dbatracker.com/2020/10/14/installing-oracle-goldengate-monitor-agent/

https://dbatracker.com/2020/10/14/creating-monitor-agent-instance-and-discover-gg-targets/
