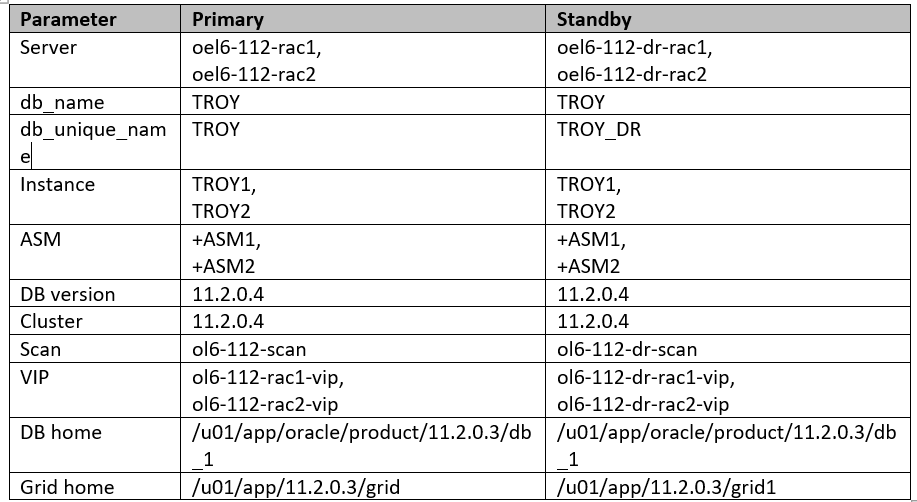

setup

This image has an empty alt attribute; its file name is image-304.png

switchover was not sucessful due to some reason and now this is the status

DGMGRL>  show configuration

Configuration - broker_config

  Protection Mode: MaxPerformance
  Databases:
    TROY_DR - Primary database
    TROY    - Physical standby database

Fast-Start Failover: DISABLED

Configuration Status:
ORA-16623: database detected role change
ORA-16625: cannot reach database "TROY_DR"
DGM-17017: unable to determine configuration status

it is not allowing me to remove or disable the configuration

DGMGRL> remove configuration;
Error: ORA-16597: Data Guard broker detects two or more primary databases
Error: ORA-16625: cannot reach database "TROY"

Failed.
DGMGRL> disable configuration;
Error: ORA-16597: Data Guard broker detects two or more primary databases
Error: ORA-16625: cannot reach database "TROY"

to over come this perform below steps on PROD and DR

TROY1@ol6-112-rac1 > alter system set dg_broker_start=false scope=both sid='*';

System altered.

TROY1@ol6-112-dr-rac1 > alter system set dg_broker_start=false scope=both sid='*';

System altered.

now remove the configuration files from both prod and DR

ASMCMD> pwd
+DATA/TROY/DATAGUARDCONFIG
ASMCMD> ls
TROY.2060.1060003087
TROY.387.1060003089
dgbrk_config01.ora
dgbrk_config02.ora
ASMCMD> rm -rf *


ASMCMD> pwd
+DATA/TROY_DR/DATAGUARDCONFIG
ASMCMD> ls
TROY_DR.2019.1060003187
TROY_DR.326.1060003145
dgb_config01.ora
dgb_config02.ora
ASMCMD> rm -rf *

enable the the broker

TROY1@ol6-112-rac1 > alter system set dg_broker_start=true scope=both sid='*';

System altered.


TROY1@ol6-112-dr-rac1 >  alter system set dg_broker_start=true scope=both sid='*';

System altered.

now try and you will see configuration is removed

DGMGRL>  show configuration
ORA-16532: Data Guard broker configuration does not exist

Configuration details cannot be determined by DGMGRL

now you can add the configuration again.

DGMGRL> create configuration 'broker_config' as primary database is 'TROY' connect identifier is TROY;
Configuration "broker_config" created with primary database "TROY"
DGMGRL> ADD DATABASE 'TROY_DR' AS CONNECT IDENTIFIER IS TROY_DR MAINTAINED AS PHYSICAL;
Database "TROY_DR" added
DGMGRL> show configuration

Configuration - broker_config

  Protection Mode: MaxPerformance
  Databases:
    TROY    - Primary database
    TROY_DR - Physical standby database

Fast-Start Failover: DISABLED

Configuration Status:
DISABLED


enable the configuration

DGMGRL> enable configuration;
Enabled.
DGMGRL>  show configuration

Configuration - broker_config

  Protection Mode: MaxPerformance
  Databases:
    TROY    - Primary database
    TROY_DR - Physical standby database

Fast-Start Failover: DISABLED

Configuration Status:
SUCCESS
