here we are clonning the database srcdb and creating a new database clonedb

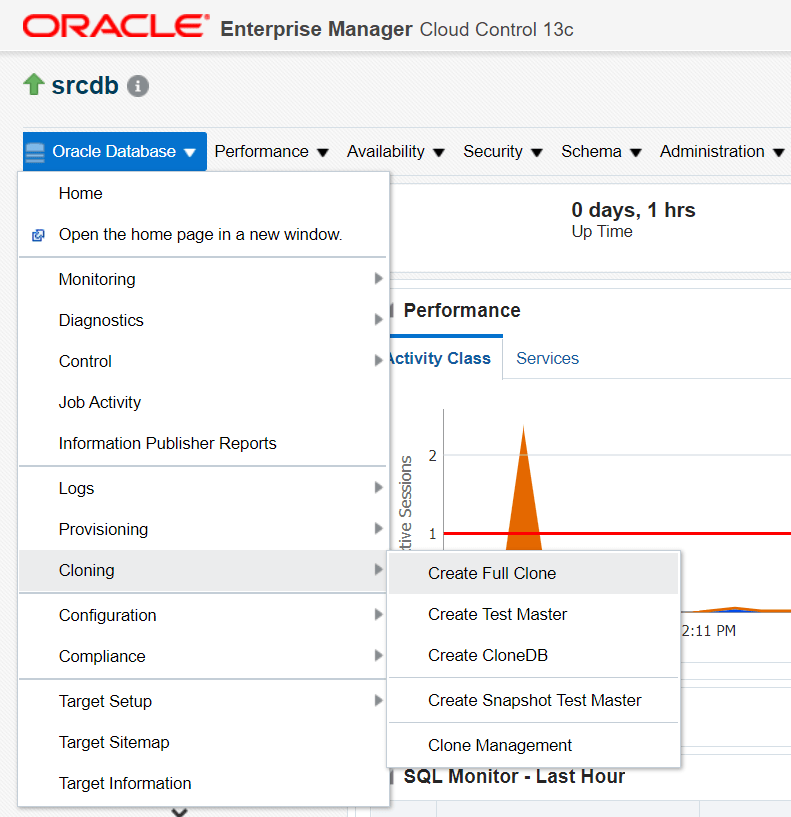

go to database instance and click on create full clone

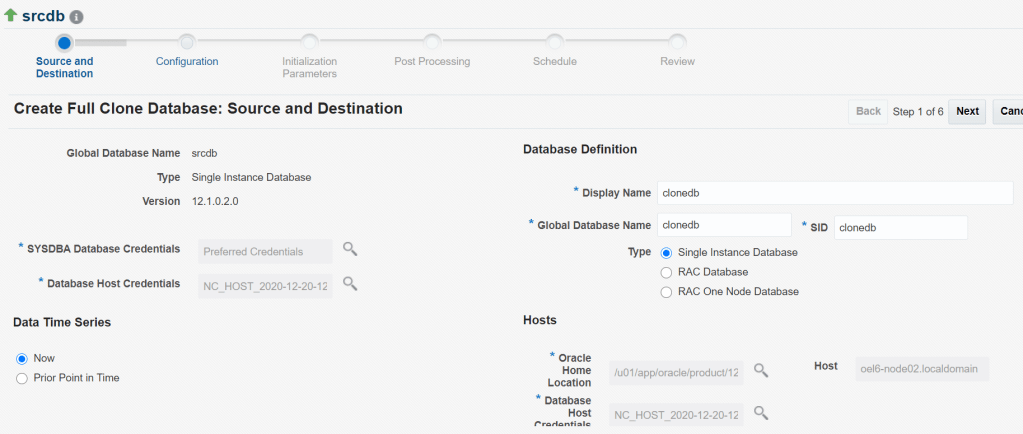

enter the required details

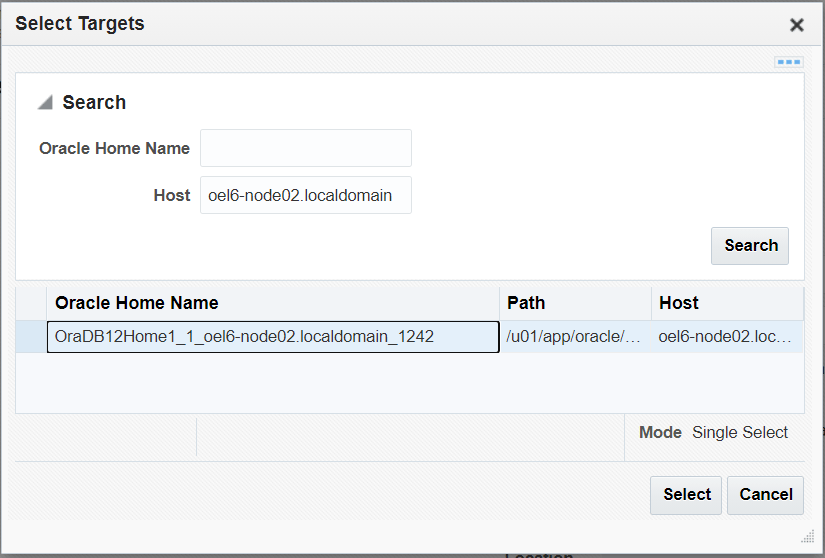

click on search icon on oracle home. you will get this window. here just put host name and search you see see the the OH and select it

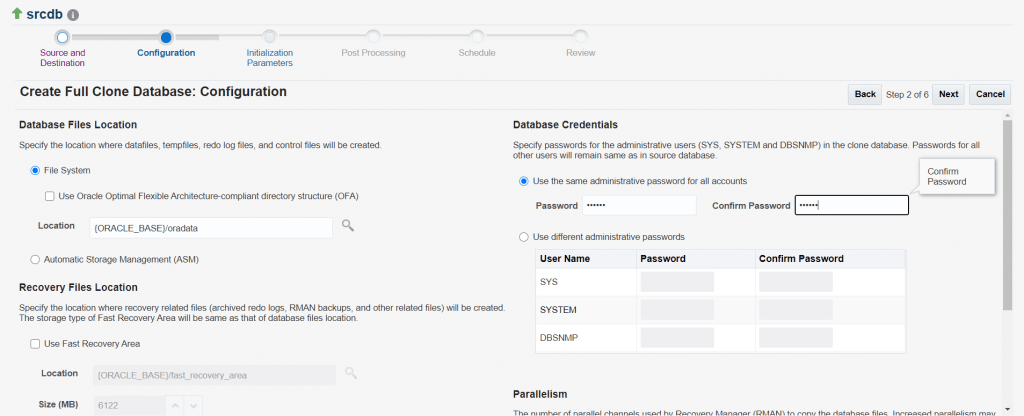

provide password for new database

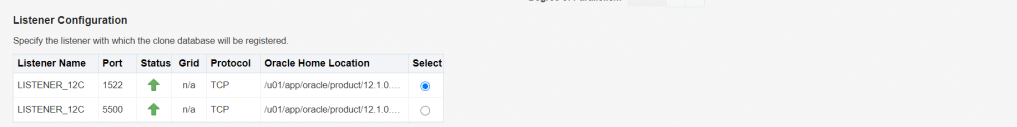

select the listener

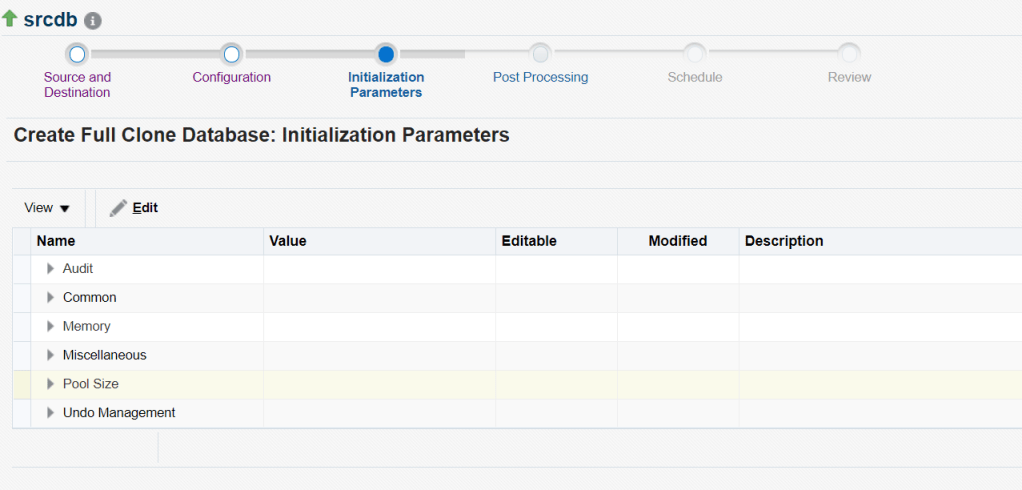

you can select full clone or you can edit parameters if you want

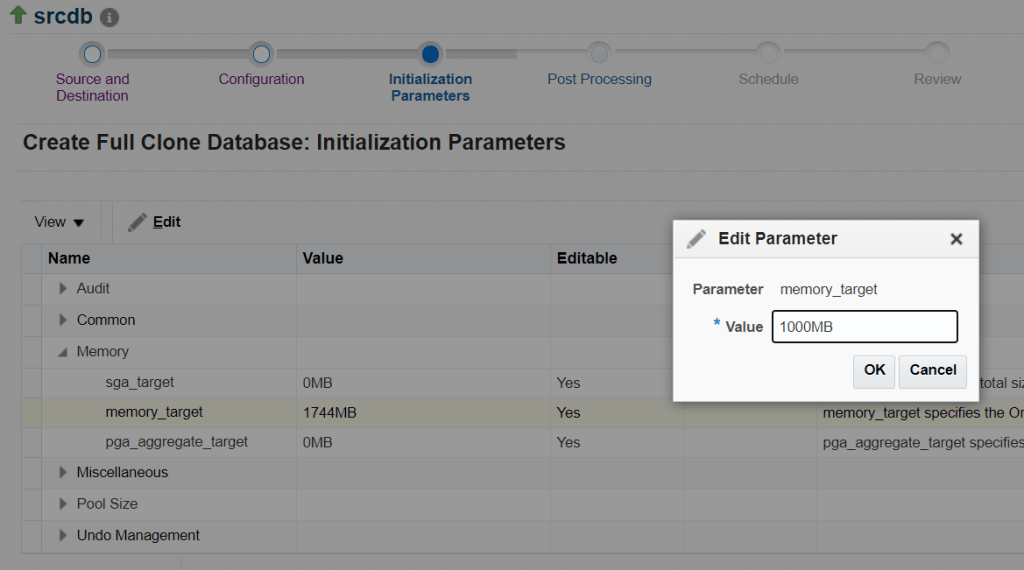

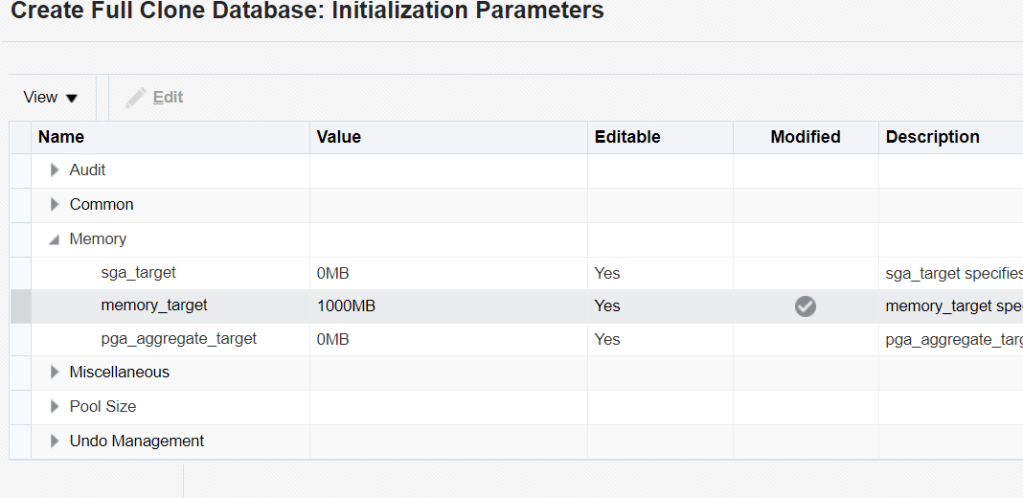

i am editing memory_target from 1744 MB to 1000 MB. click ok

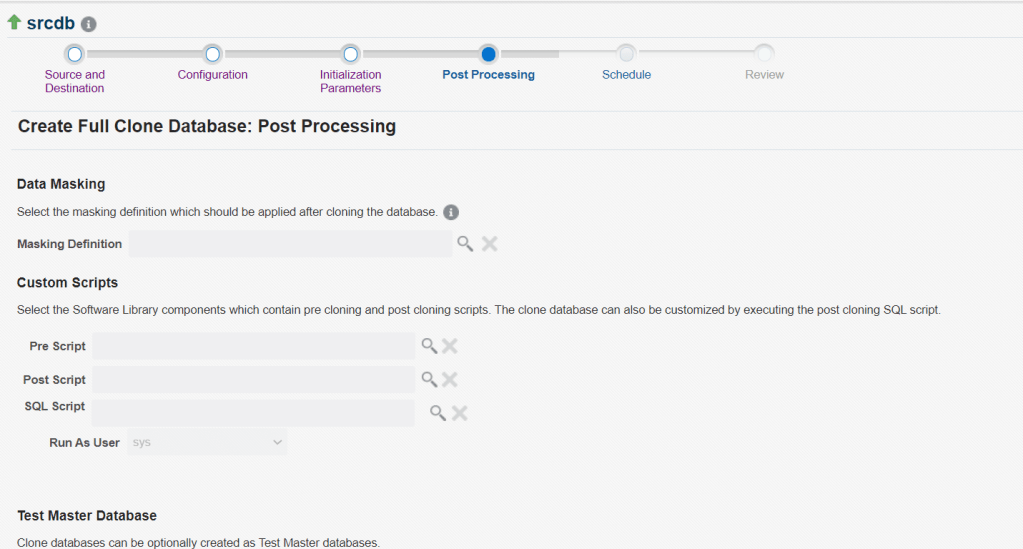

click next

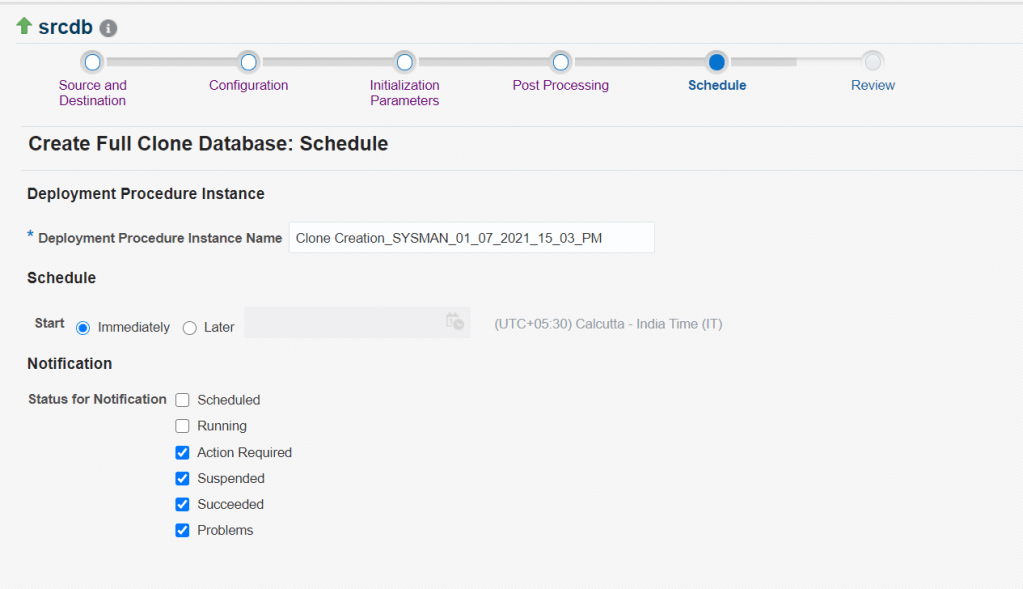

selected the default

click next

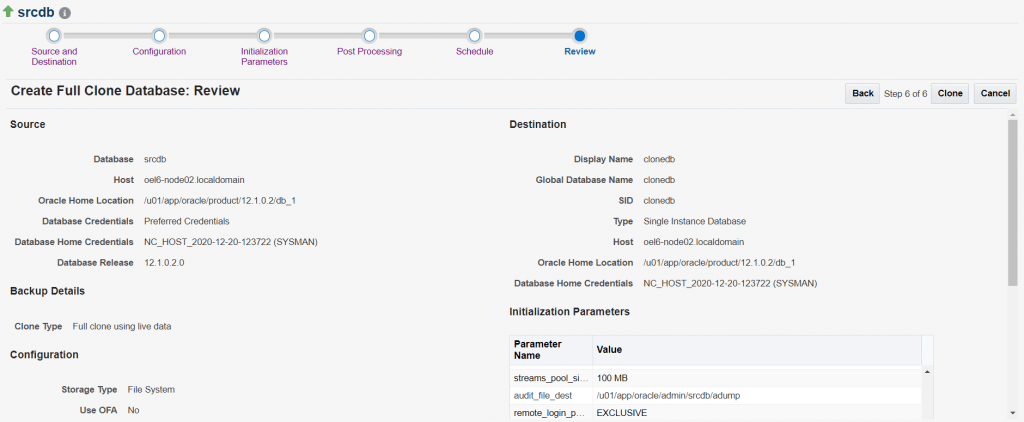

review and click clone

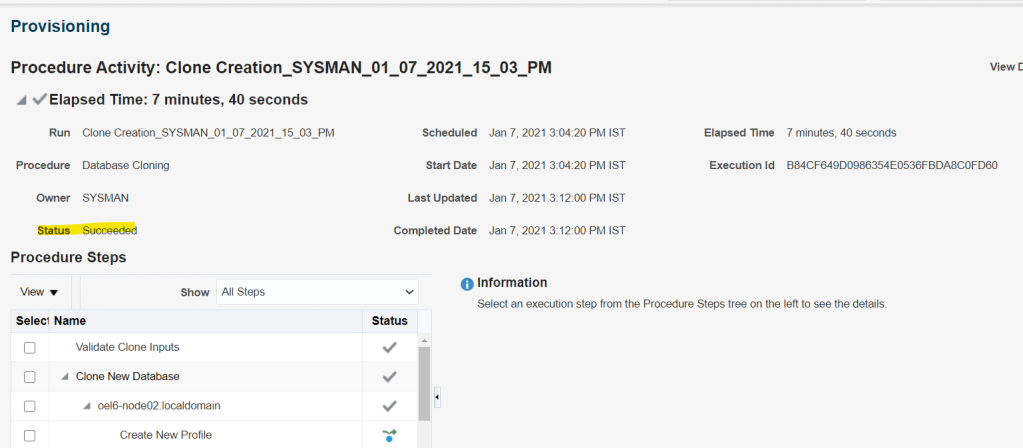

monitor the progress

job is suceeded

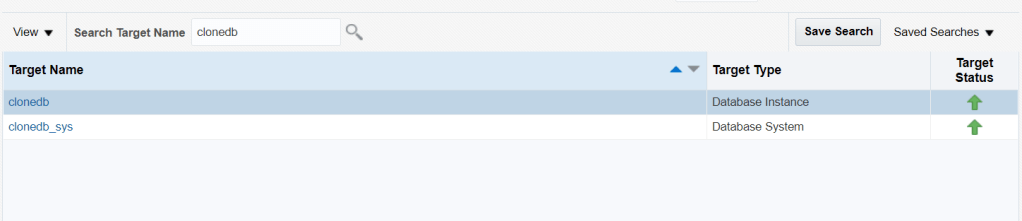

database is visble in oem

you can verify at database level

SYS @ clonedb > select name,open_mode from v$database;

NAME      OPEN_MODE
--------- --------------------
CLONEDB   READ WRITE

SYS @ clonedb > SYS @ clonedb > select name from v$datafile;

NAME
--------------------------------------------------------------------------------
/u01/app/oracle/oradata/CLONEDB/datafile/o1_mf_system_hzfoj9b0_.dbf
/u01/app/oracle/oradata/CLONEDB/datafile/o1_mf_sysaux_hzfokm2t_.dbf
/u01/app/oracle/oradata/CLONEDB/datafile/o1_mf_undotbs1_hzfol91j_.dbf
/u01/app/oracle/oradata/CLONEDB/datafile/o1_mf_users_hzfolmym_.dbf
/u01/app/oracle/oradata/CLONEDB/datafile/o1_mf_oggdata_hzfolp9h_.dbf
