download V840012-01.zip and unzip

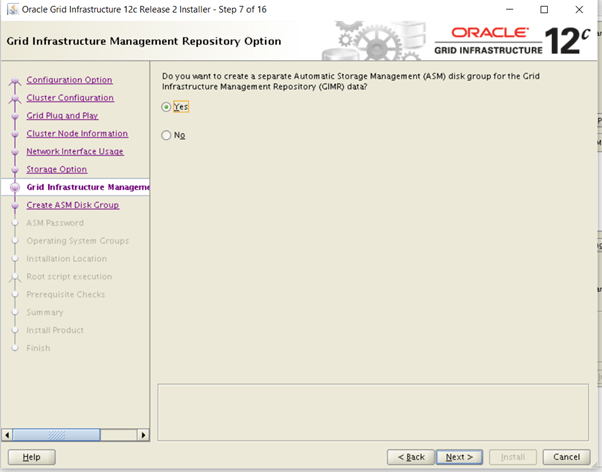

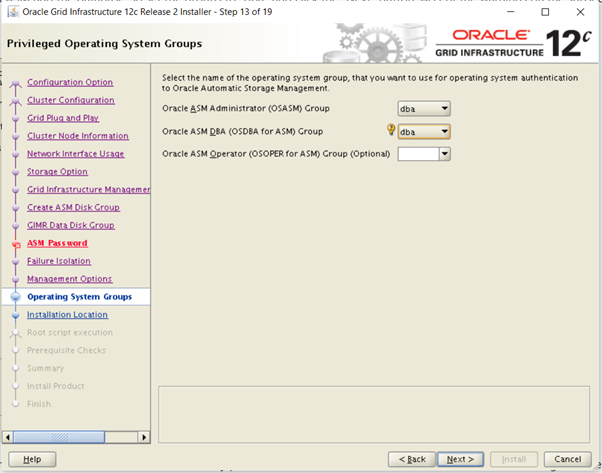

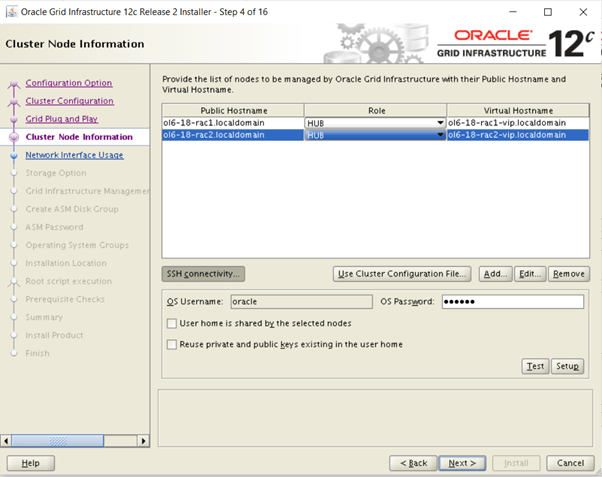

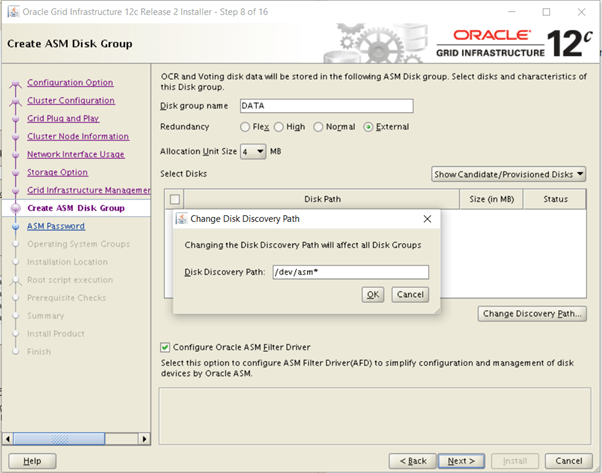

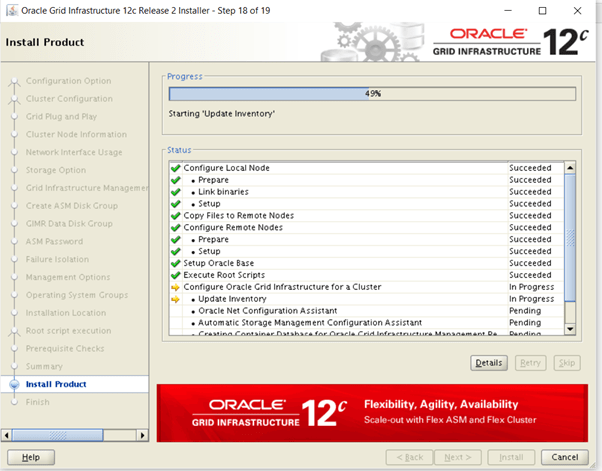

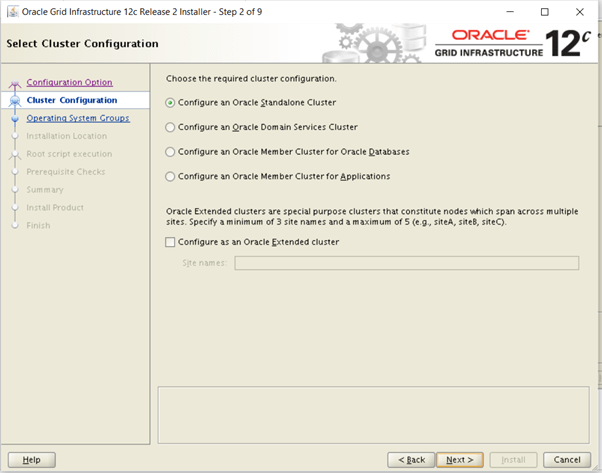

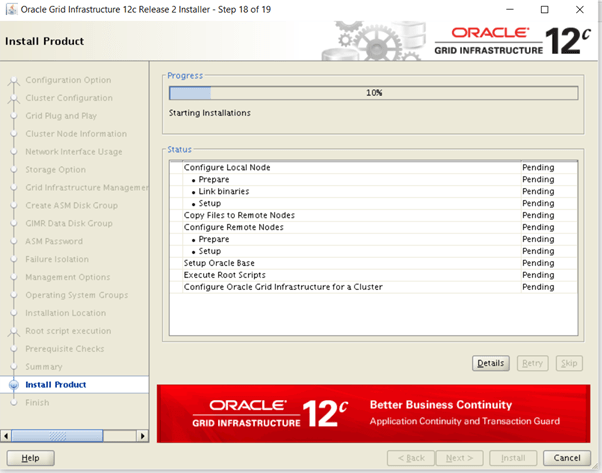

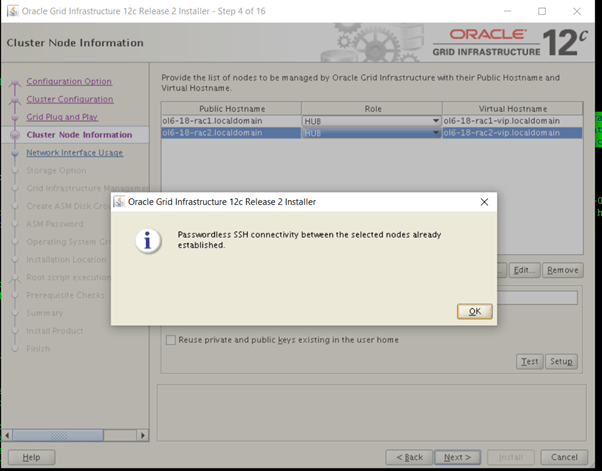

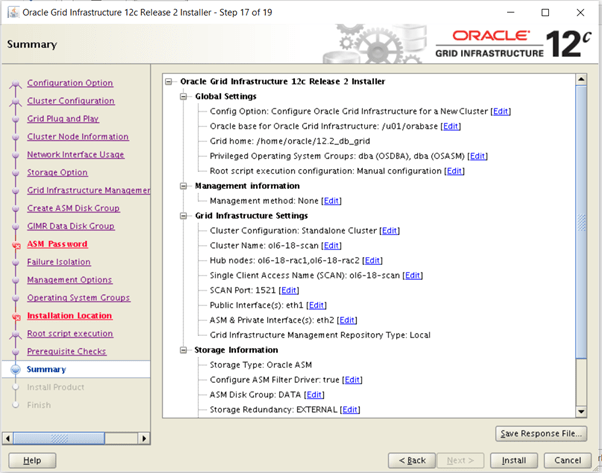

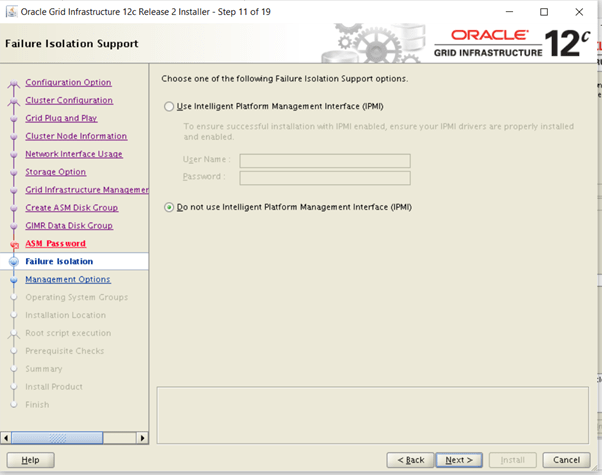

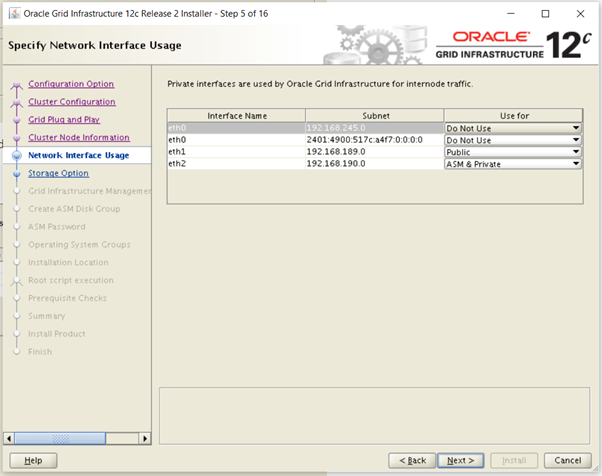

run gridSetup.sh and choose below options

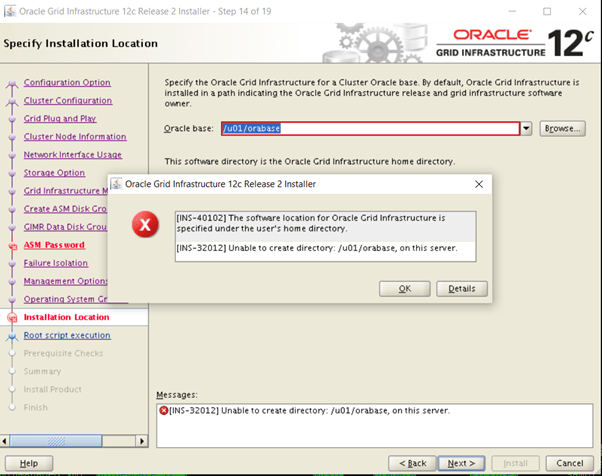

[root@ol6-18-rac2 ~]# cd /u01
[root@ol6-18-rac2 u01]# mkdir orabase
[root@ol6-18-rac2 u01]# chown oracle:dba orabase
[root@ol6-18-rac1 oracle]# cd /u01
[root@ol6-18-rac1 u01]# ls -ltr
total 4
drwxr-xr-x. 5 root oinstall 4096 May 22 11:58 app
[root@ol6-18-rac1 u01]# mkdir orabase
[root@ol6-18-rac1 u01]# chown oracle:dba orabase
[root@ol6-18-rac1 rpm]# pwd
/home/oracle/12.2_db_grid/cv/rpm
[root@ol6-18-rac1 rpm]# ls
cvuqdisk-1.0.10-1.rpm
[root@ol6-18-rac1 rpm]# rpm -Uvh cvuqdisk*
Preparing... ########################################### [100%]
1:cvuqdisk ########################################### [100%]
[root@ol6-18-rac1 rpm]#
[root@ol6-18-rac2 u01]# cd /home/oracle/
[root@ol6-18-rac2 oracle]# rpm -Uvh cvuqdisk*
Preparing... ########################################### [100%]
1:cvuqdisk ########################################### [100%]

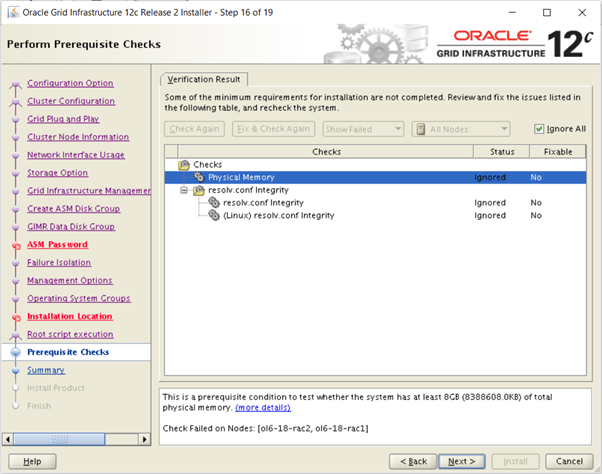

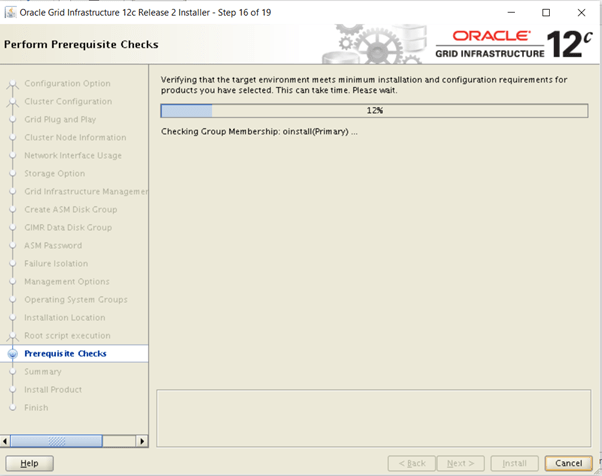

check again
[root@ol6-18-rac1 rpm]# cd /home/oracle/12.2_db_grid/
[root@ol6-18-rac1 12.2_db_grid]# ./root
root.sh root.sh.old rootupgrade.sh
[root@ol6-18-rac1 12.2_db_grid]# ./root.sh
Performing root user operation.
The following environment variables are set as:
ORACLE_OWNER= oracle
ORACLE_HOME= /home/oracle/12.2_db_grid
Enter the full pathname of the local bin directory: [/usr/local/bin]:
The contents of "dbhome" have not changed. No need to overwrite.
The contents of "oraenv" have not changed. No need to overwrite.
The contents of "coraenv" have not changed. No need to overwrite.
Creating /etc/oratab file...
Entries will be added to the /etc/oratab file as needed by
Database Configuration Assistant when a database is created
Finished running generic part of root script.
Now product-specific root actions will be performed.
Relinking oracle with rac_on option
Using configuration parameter file: /home/oracle/12.2_db_grid/crs/install/crsconfig_params
The log of current session can be found at:
/u01/orabase/crsdata/ol6-18-rac1/crsconfig/rootcrs_ol6-18-rac1_2021-10-07_06-41-30PM.log
2021/10/07 18:41:38 CLSRSC-594: Executing installation step 1 of 19: 'SetupTFA'.
2021/10/07 18:41:38 CLSRSC-4001: Installing Oracle Trace File Analyzer (TFA) Collector.
2021/10/07 18:42:11 CLSRSC-4002: Successfully installed Oracle Trace File Analyzer (TFA) Collector.
2021/10/07 18:42:11 CLSRSC-594: Executing installation step 2 of 19: 'ValidateEnv'.
2021/10/07 18:42:17 CLSRSC-363: User ignored prerequisites during installation
2021/10/07 18:42:18 CLSRSC-594: Executing installation step 3 of 19: 'CheckFirstNode'.
2021/10/07 18:42:23 CLSRSC-594: Executing installation step 4 of 19: 'GenSiteGUIDs'.
2021/10/07 18:42:24 CLSRSC-594: Executing installation step 5 of 19: 'SaveParamFile'.
2021/10/07 18:42:30 CLSRSC-594: Executing installation step 6 of 19: 'SetupOSD'.
2021/10/07 18:42:33 CLSRSC-594: Executing installation step 7 of 19: 'CheckCRSConfig'.
2021/10/07 18:42:33 CLSRSC-594: Executing installation step 8 of 19: 'SetupLocalGPNP'.
2021/10/07 18:43:02 CLSRSC-594: Executing installation step 9 of 19: 'ConfigOLR'.
2021/10/07 18:43:09 CLSRSC-594: Executing installation step 10 of 19: 'ConfigCHMOS'.
2021/10/07 18:43:10 CLSRSC-594: Executing installation step 11 of 19: 'CreateOHASD'.
2021/10/07 18:43:14 CLSRSC-594: Executing installation step 12 of 19: 'ConfigOHASD'.
2021/10/07 18:43:30 CLSRSC-330: Adding Clusterware entries to file 'oracle-ohasd.conf'
2021/10/07 18:43:52 CLSRSC-594: Executing installation step 13 of 19: 'InstallAFD'.
2021/10/07 18:44:34 CLSRSC-594: Executing installation step 14 of 19: 'InstallACFS'.
CRS-2791: Starting shutdown of Oracle High Availability Services-managed resources on 'ol6-18-rac1'
CRS-2793: Shutdown of Oracle High Availability Services-managed resources on 'ol6-18-rac1' has completed
CRS-4133: Oracle High Availability Services has been stopped.
CRS-4123: Oracle High Availability Services has been started.
2021/10/07 18:45:12 CLSRSC-594: Executing installation step 15 of 19: 'InstallKA'.
2021/10/07 18:45:17 CLSRSC-594: Executing installation step 16 of 19: 'InitConfig'.
CRS-2791: Starting shutdown of Oracle High Availability Services-managed resources on 'ol6-18-rac1'
CRS-2793: Shutdown of Oracle High Availability Services-managed resources on 'ol6-18-rac1' has completed
CRS-4133: Oracle High Availability Services has been stopped.
CRS-4123: Oracle High Availability Services has been started.
CRS-2672: Attempting to start 'ora.driver.afd' on 'ol6-18-rac1'
CRS-2672: Attempting to start 'ora.evmd' on 'ol6-18-rac1'
CRS-2672: Attempting to start 'ora.mdnsd' on 'ol6-18-rac1'
CRS-2676: Start of 'ora.driver.afd' on 'ol6-18-rac1' succeeded
CRS-2672: Attempting to start 'ora.cssdmonitor' on 'ol6-18-rac1'
CRS-2676: Start of 'ora.cssdmonitor' on 'ol6-18-rac1' succeeded
CRS-2676: Start of 'ora.evmd' on 'ol6-18-rac1' succeeded
CRS-2676: Start of 'ora.mdnsd' on 'ol6-18-rac1' succeeded
CRS-2672: Attempting to start 'ora.gpnpd' on 'ol6-18-rac1'
CRS-2676: Start of 'ora.gpnpd' on 'ol6-18-rac1' succeeded
CRS-2672: Attempting to start 'ora.gipcd' on 'ol6-18-rac1'
CRS-2676: Start of 'ora.gipcd' on 'ol6-18-rac1' succeeded
CRS-2672: Attempting to start 'ora.cssd' on 'ol6-18-rac1'
CRS-2672: Attempting to start 'ora.diskmon' on 'ol6-18-rac1'
CRS-2676: Start of 'ora.diskmon' on 'ol6-18-rac1' succeeded
CRS-2676: Start of 'ora.cssd' on 'ol6-18-rac1' succeeded
Disk label(s) created successfully. Check /u01/orabase/cfgtoollogs/asmca/asmca-211007PM064559.log for details.
Disk groups created successfully. Check /u01/orabase/cfgtoollogs/asmca/asmca-211007PM064559.log for details.
2021/10/07 18:47:08 CLSRSC-482: Running command: '/home/oracle/12.2_db_grid/bin/ocrconfig -upgrade oracle oinstall'
CRS-2672: Attempting to start 'ora.crf' on 'ol6-18-rac1'
CRS-2672: Attempting to start 'ora.storage' on 'ol6-18-rac1'
CRS-2676: Start of 'ora.storage' on 'ol6-18-rac1' succeeded
CRS-2676: Start of 'ora.crf' on 'ol6-18-rac1' succeeded
CRS-2672: Attempting to start 'ora.crsd' on 'ol6-18-rac1'
CRS-2676: Start of 'ora.crsd' on 'ol6-18-rac1' succeeded
CRS-4256: Updating the profile
Successful addition of voting disk 15eaa49aab324fb1bf74f6279089904b.
Successfully replaced voting disk group with +DATA.
CRS-4256: Updating the profile
CRS-4266: Voting file(s) successfully replaced
## STATE File Universal Id File Name Disk group
-- ----- ----------------- --------- ---------
1. ONLINE 15eaa49aab324fb1bf74f6279089904b (AFD:DATA1) [DATA]
Located 1 voting disk(s).
CRS-2791: Starting shutdown of Oracle High Availability Services-managed resources on 'ol6-18-rac1'
CRS-2673: Attempting to stop 'ora.crsd' on 'ol6-18-rac1'
CRS-2677: Stop of 'ora.crsd' on 'ol6-18-rac1' succeeded
CRS-2673: Attempting to stop 'ora.storage' on 'ol6-18-rac1'
CRS-2673: Attempting to stop 'ora.crf' on 'ol6-18-rac1'
CRS-2673: Attempting to stop 'ora.drivers.acfs' on 'ol6-18-rac1'
CRS-2673: Attempting to stop 'ora.gpnpd' on 'ol6-18-rac1'
CRS-2673: Attempting to stop 'ora.mdnsd' on 'ol6-18-rac1'
CRS-2677: Stop of 'ora.drivers.acfs' on 'ol6-18-rac1' succeeded
CRS-2677: Stop of 'ora.crf' on 'ol6-18-rac1' succeeded
CRS-2677: Stop of 'ora.gpnpd' on 'ol6-18-rac1' succeeded
CRS-2677: Stop of 'ora.storage' on 'ol6-18-rac1' succeeded
CRS-2673: Attempting to stop 'ora.asm' on 'ol6-18-rac1'
CRS-2677: Stop of 'ora.mdnsd' on 'ol6-18-rac1' succeeded
CRS-2677: Stop of 'ora.asm' on 'ol6-18-rac1' succeeded
CRS-2673: Attempting to stop 'ora.cluster_interconnect.haip' on 'ol6-18-rac1'
CRS-2677: Stop of 'ora.cluster_interconnect.haip' on 'ol6-18-rac1' succeeded
CRS-2673: Attempting to stop 'ora.ctssd' on 'ol6-18-rac1'
CRS-2673: Attempting to stop 'ora.evmd' on 'ol6-18-rac1'
CRS-2677: Stop of 'ora.evmd' on 'ol6-18-rac1' succeeded
CRS-2677: Stop of 'ora.ctssd' on 'ol6-18-rac1' succeeded
CRS-2673: Attempting to stop 'ora.cssd' on 'ol6-18-rac1'
CRS-2677: Stop of 'ora.cssd' on 'ol6-18-rac1' succeeded
CRS-2673: Attempting to stop 'ora.driver.afd' on 'ol6-18-rac1'
CRS-2673: Attempting to stop 'ora.gipcd' on 'ol6-18-rac1'
CRS-2677: Stop of 'ora.driver.afd' on 'ol6-18-rac1' succeeded
CRS-2677: Stop of 'ora.gipcd' on 'ol6-18-rac1' succeeded
CRS-2793: Shutdown of Oracle High Availability Services-managed resources on 'ol6-18-rac1' has completed
CRS-4133: Oracle High Availability Services has been stopped.
2021/10/07 18:48:11 CLSRSC-594: Executing installation step 17 of 19: 'StartCluster'.
CRS-4123: Starting Oracle High Availability Services-managed resources
CRS-2672: Attempting to start 'ora.mdnsd' on 'ol6-18-rac1'
CRS-2672: Attempting to start 'ora.evmd' on 'ol6-18-rac1'
CRS-2676: Start of 'ora.evmd' on 'ol6-18-rac1' succeeded
CRS-2676: Start of 'ora.mdnsd' on 'ol6-18-rac1' succeeded
CRS-2672: Attempting to start 'ora.gpnpd' on 'ol6-18-rac1'
CRS-2676: Start of 'ora.gpnpd' on 'ol6-18-rac1' succeeded
CRS-2672: Attempting to start 'ora.gipcd' on 'ol6-18-rac1'
CRS-2676: Start of 'ora.gipcd' on 'ol6-18-rac1' succeeded
CRS-2672: Attempting to start 'ora.cssdmonitor' on 'ol6-18-rac1'
CRS-2676: Start of 'ora.cssdmonitor' on 'ol6-18-rac1' succeeded
CRS-2672: Attempting to start 'ora.cssd' on 'ol6-18-rac1'
CRS-2672: Attempting to start 'ora.diskmon' on 'ol6-18-rac1'
CRS-2676: Start of 'ora.diskmon' on 'ol6-18-rac1' succeeded
CRS-2676: Start of 'ora.cssd' on 'ol6-18-rac1' succeeded
CRS-2672: Attempting to start 'ora.cluster_interconnect.haip' on 'ol6-18-rac1'
CRS-2672: Attempting to start 'ora.ctssd' on 'ol6-18-rac1'
CRS-2676: Start of 'ora.ctssd' on 'ol6-18-rac1' succeeded
CRS-2676: Start of 'ora.cluster_interconnect.haip' on 'ol6-18-rac1' succeeded
CRS-2672: Attempting to start 'ora.asm' on 'ol6-18-rac1'
CRS-2676: Start of 'ora.asm' on 'ol6-18-rac1' succeeded
CRS-2672: Attempting to start 'ora.storage' on 'ol6-18-rac1'
CRS-2676: Start of 'ora.storage' on 'ol6-18-rac1' succeeded
CRS-2672: Attempting to start 'ora.crf' on 'ol6-18-rac1'
CRS-2676: Start of 'ora.crf' on 'ol6-18-rac1' succeeded
CRS-2672: Attempting to start 'ora.crsd' on 'ol6-18-rac1'
CRS-2676: Start of 'ora.crsd' on 'ol6-18-rac1' succeeded
CRS-6023: Starting Oracle Cluster Ready Services-managed resources
CRS-6017: Processing resource auto-start for servers: ol6-18-rac1
CRS-6016: Resource auto-start has completed for server ol6-18-rac1
CRS-6024: Completed start of Oracle Cluster Ready Services-managed resources
CRS-4123: Oracle High Availability Services has been started.
2021/10/07 18:50:14 CLSRSC-343: Successfully started Oracle Clusterware stack
2021/10/07 18:50:15 CLSRSC-594: Executing installation step 18 of 19: 'ConfigNode'.
CRS-2672: Attempting to start 'ora.ASMNET1LSNR_ASM.lsnr' on 'ol6-18-rac1'
CRS-2676: Start of 'ora.ASMNET1LSNR_ASM.lsnr' on 'ol6-18-rac1' succeeded
CRS-2672: Attempting to start 'ora.asm' on 'ol6-18-rac1'
CRS-2676: Start of 'ora.asm' on 'ol6-18-rac1' succeeded
CRS-2672: Attempting to start 'ora.DATA.dg' on 'ol6-18-rac1'
CRS-2676: Start of 'ora.DATA.dg' on 'ol6-18-rac1' succeeded
2021/10/07 18:52:53 CLSRSC-594: Executing installation step 19 of 19: 'PostConfig'.
Disk label(s) created successfully. Check /u01/orabase/cfgtoollogs/asmca/asmca-211007PM065301.log for details.
2021/10/07 18:55:01 CLSRSC-325: Configure Oracle Grid Infrastructure for a Cluster ... succeeded
[root@ol6-18-rac1 12.2_db_grid]#
[root@ol6-18-rac2 oracle]# cd /home/oracle/12.2_db_grid/
[root@ol6-18-rac2 12.2_db_grid]# ./root.sh
Performing root user operation.
The following environment variables are set as:
ORACLE_OWNER= oracle
ORACLE_HOME= /home/oracle/12.2_db_grid
Enter the full pathname of the local bin directory: [/usr/local/bin]:
The contents of "dbhome" have not changed. No need to overwrite.
The contents of "oraenv" have not changed. No need to overwrite.
The contents of "coraenv" have not changed. No need to overwrite.
Creating /etc/oratab file...
Entries will be added to the /etc/oratab file as needed by
Database Configuration Assistant when a database is created
Finished running generic part of root script.
Now product-specific root actions will be performed.
Relinking oracle with rac_on option
Using configuration parameter file: /home/oracle/12.2_db_grid/crs/install/crsconfig_params
The log of current session can be found at:
/u01/orabase/crsdata/ol6-18-rac2/crsconfig/rootcrs_ol6-18-rac2_2021-10-07_07-19-06PM.log
2021/10/07 19:19:17 CLSRSC-594: Executing installation step 1 of 19: 'SetupTFA'.
2021/10/07 19:19:17 CLSRSC-4001: Installing Oracle Trace File Analyzer (TFA) Collector.
2021/10/07 19:19:58 CLSRSC-4002: Successfully installed Oracle Trace File Analyzer (TFA) Collector.
2021/10/07 19:19:58 CLSRSC-594: Executing installation step 2 of 19: 'ValidateEnv'.
2021/10/07 19:19:59 CLSRSC-363: User ignored prerequisites during installation
2021/10/07 19:19:59 CLSRSC-594: Executing installation step 3 of 19: 'CheckFirstNode'.
2021/10/07 19:20:05 CLSRSC-594: Executing installation step 4 of 19: 'GenSiteGUIDs'.
2021/10/07 19:20:05 CLSRSC-594: Executing installation step 5 of 19: 'SaveParamFile'.
2021/10/07 19:20:12 CLSRSC-594: Executing installation step 6 of 19: 'SetupOSD'.
2021/10/07 19:20:18 CLSRSC-594: Executing installation step 7 of 19: 'CheckCRSConfig'.
2021/10/07 19:20:19 CLSRSC-594: Executing installation step 8 of 19: 'SetupLocalGPNP'.
2021/10/07 19:20:22 CLSRSC-594: Executing installation step 9 of 19: 'ConfigOLR'.
2021/10/07 19:20:25 CLSRSC-594: Executing installation step 10 of 19: 'ConfigCHMOS'.
2021/10/07 19:20:25 CLSRSC-594: Executing installation step 11 of 19: 'CreateOHASD'.
2021/10/07 19:20:28 CLSRSC-594: Executing installation step 12 of 19: 'ConfigOHASD'.
2021/10/07 19:20:43 CLSRSC-330: Adding Clusterware entries to file 'oracle-ohasd.conf'
2021/10/07 19:21:04 CLSRSC-594: Executing installation step 13 of 19: 'InstallAFD'.
2021/10/07 19:22:21 CLSRSC-594: Executing installation step 14 of 19: 'InstallACFS'.
CRS-2791: Starting shutdown of Oracle High Availability Services-managed resources on 'ol6-18-rac2'
CRS-2793: Shutdown of Oracle High Availability Services-managed resources on 'ol6-18-rac2' has completed
CRS-4133: Oracle High Availability Services has been stopped.
CRS-4123: Oracle High Availability Services has been started.
2021/10/07 19:23:29 CLSRSC-594: Executing installation step 15 of 19: 'InstallKA'.
2021/10/07 19:23:36 CLSRSC-594: Executing installation step 16 of 19: 'InitConfig'.
CRS-2791: Starting shutdown of Oracle High Availability Services-managed resources on 'ol6-18-rac2'
CRS-2793: Shutdown of Oracle High Availability Services-managed resources on 'ol6-18-rac2' has completed
CRS-4133: Oracle High Availability Services has been stopped.
CRS-4123: Oracle High Availability Services has been started.
CRS-2791: Starting shutdown of Oracle High Availability Services-managed resources on 'ol6-18-rac2'
CRS-2673: Attempting to stop 'ora.drivers.acfs' on 'ol6-18-rac2'
CRS-2677: Stop of 'ora.drivers.acfs' on 'ol6-18-rac2' succeeded
CRS-2793: Shutdown of Oracle High Availability Services-managed resources on 'ol6-18-rac2' has completed
CRS-4133: Oracle High Availability Services has been stopped.
2021/10/07 19:23:54 CLSRSC-594: Executing installation step 17 of 19: 'StartCluster'.
CRS-4123: Starting Oracle High Availability Services-managed resources
CRS-2672: Attempting to start 'ora.evmd' on 'ol6-18-rac2'
CRS-2672: Attempting to start 'ora.mdnsd' on 'ol6-18-rac2'
CRS-2676: Start of 'ora.evmd' on 'ol6-18-rac2' succeeded
CRS-2676: Start of 'ora.mdnsd' on 'ol6-18-rac2' succeeded
CRS-2672: Attempting to start 'ora.gpnpd' on 'ol6-18-rac2'
CRS-2676: Start of 'ora.gpnpd' on 'ol6-18-rac2' succeeded
CRS-2672: Attempting to start 'ora.gipcd' on 'ol6-18-rac2'
CRS-2676: Start of 'ora.gipcd' on 'ol6-18-rac2' succeeded
CRS-2672: Attempting to start 'ora.cssdmonitor' on 'ol6-18-rac2'
CRS-2676: Start of 'ora.cssdmonitor' on 'ol6-18-rac2' succeeded
CRS-2672: Attempting to start 'ora.cssd' on 'ol6-18-rac2'
CRS-2672: Attempting to start 'ora.diskmon' on 'ol6-18-rac2'
CRS-2676: Start of 'ora.diskmon' on 'ol6-18-rac2' succeeded
CRS-2676: Start of 'ora.cssd' on 'ol6-18-rac2' succeeded
CRS-2672: Attempting to start 'ora.cluster_interconnect.haip' on 'ol6-18-rac2'
CRS-2672: Attempting to start 'ora.ctssd' on 'ol6-18-rac2'
CRS-2676: Start of 'ora.ctssd' on 'ol6-18-rac2' succeeded
CRS-2672: Attempting to start 'ora.crf' on 'ol6-18-rac2'
CRS-2676: Start of 'ora.crf' on 'ol6-18-rac2' succeeded
CRS-2672: Attempting to start 'ora.crsd' on 'ol6-18-rac2'
CRS-2676: Start of 'ora.crsd' on 'ol6-18-rac2' succeeded
CRS-2676: Start of 'ora.cluster_interconnect.haip' on 'ol6-18-rac2' succeeded
CRS-2672: Attempting to start 'ora.asm' on 'ol6-18-rac2'
CRS-2676: Start of 'ora.asm' on 'ol6-18-rac2' succeeded
CRS-6017: Processing resource auto-start for servers: ol6-18-rac2
CRS-2673: Attempting to stop 'ora.LISTENER_SCAN1.lsnr' on 'ol6-18-rac1'
CRS-2672: Attempting to start 'ora.net1.network' on 'ol6-18-rac2'
CRS-2672: Attempting to start 'ora.ASMNET1LSNR_ASM.lsnr' on 'ol6-18-rac2'
CRS-2676: Start of 'ora.net1.network' on 'ol6-18-rac2' succeeded
CRS-2672: Attempting to start 'ora.ons' on 'ol6-18-rac2'
CRS-2677: Stop of 'ora.LISTENER_SCAN1.lsnr' on 'ol6-18-rac1' succeeded
CRS-2673: Attempting to stop 'ora.scan1.vip' on 'ol6-18-rac1'
CRS-2677: Stop of 'ora.scan1.vip' on 'ol6-18-rac1' succeeded
CRS-2672: Attempting to start 'ora.scan1.vip' on 'ol6-18-rac2'
CRS-2676: Start of 'ora.scan1.vip' on 'ol6-18-rac2' succeeded
CRS-2672: Attempting to start 'ora.LISTENER_SCAN1.lsnr' on 'ol6-18-rac2'
CRS-2676: Start of 'ora.ASMNET1LSNR_ASM.lsnr' on 'ol6-18-rac2' succeeded
CRS-2672: Attempting to start 'ora.asm' on 'ol6-18-rac2'
CRS-2676: Start of 'ora.ons' on 'ol6-18-rac2' succeeded
CRS-2676: Start of 'ora.LISTENER_SCAN1.lsnr' on 'ol6-18-rac2' succeeded
CRS-2676: Start of 'ora.asm' on 'ol6-18-rac2' succeeded
CRS-6016: Resource auto-start has completed for server ol6-18-rac2
CRS-6024: Completed start of Oracle Cluster Ready Services-managed resources
CRS-4123: Oracle High Availability Services has been started.
2021/10/07 19:27:42 CLSRSC-343: Successfully started Oracle Clusterware stack
2021/10/07 19:27:42 CLSRSC-594: Executing installation step 18 of 19: 'ConfigNode'.
2021/10/07 19:28:30 CLSRSC-594: Executing installation step 19 of 19: 'PostConfig'.
2021/10/07 19:30:53 CLSRSC-325: Configure Oracle Grid Infrastructure for a Cluster ... succeeded
[oracle@ol6-18-rac1 12.2_db_grid]$ ps -ef|grep pmon
oracle 6011 14718 0 20:40 pts/0 00:00:00 grep pmon
oracle 14559 1 0 19:55 ? 00:00:00 mdb_pmon_-MGMTDB
oracle 14586 1 0 18:49 ? 00:00:00 asm_pmon_+ASM1
[oracle@ol6-18-rac1 12.2_db_grid]$ . oraenv
ORACLE_SID = [TROY1] ? +ASM1
The Oracle base has been changed from /u01/app/oracle to /u01/orabase
[oracle@ol6-18-rac1 12.2_db_grid]$ asmcmd
lASMCMD> sdg
State Type Rebal Sector Logical_Sector Block AU Total_MB Free_MB Req_mir_free_MB Usable_file_MB Offline_disks Voting_files Name
MOUNTED EXTERN N 512 512 4096 4194304 10236 9900 0 9900 0 Y DATA/
MOUNTED EXTERN N 512 512 4096 4194304 40944 6716 0 6716 0 N GIMR/
ASMCMD> cd +GIMR
ASMCMD> ls
ASM/
_mgmtdb/
orapwasm_backup
[oracle@ol6-18-rac1 12.2_db_grid]$ /home/oracle/12.2_db_grid/bin/crsctl check crs
CRS-4638: Oracle High Availability Services is online
CRS-4537: Cluster Ready Services is online
CRS-4529: Cluster Synchronization Services is online
CRS-4533: Event Manager is online
[oracle@ol6-18-rac1 12.2_db_grid]$ /home/oracle/12.2_db_grid/bin/crsctl check cluster -all
**************************************************************
ol6-18-rac1:
CRS-4537: Cluster Ready Services is online
CRS-4529: Cluster Synchronization Services is online
CRS-4533: Event Manager is online
**************************************************************
ol6-18-rac2:
CRS-4537: Cluster Ready Services is online
CRS-4529: Cluster Synchronization Services is online
CRS-4533: Event Manager is online
[root@ol6-18-rac2 12.2_db_grid]# /home/oracle/12.2_db_grid/bin/crsctl check crs
CRS-4638: Oracle High Availability Services is online
CRS-4537: Cluster Ready Services is online
CRS-4529: Cluster Synchronization Services is online
CRS-4533: Event Manager is online
[oracle@ol6-18-rac1 12.2_db_grid]$ /home/oracle/12.2_db_grid/bin/crsctl query crs activeversion -f
Oracle Clusterware active version on the cluster is [12.2.0.1.0]. The cluster upgrade state is [NORMAL]. The cluster active patch level is [0].
[oracle@ol6-18-rac1 12.2_db_grid]$ /home/oracle/12.2_db_grid/bin/crsctl query crs softwareversion -all
Oracle Clusterware version on node [ol6-18-rac1] is [12.2.0.1.0]
Oracle Clusterware version on node [ol6-18-rac2] is [12.2.0.1.0]
DBATracker
